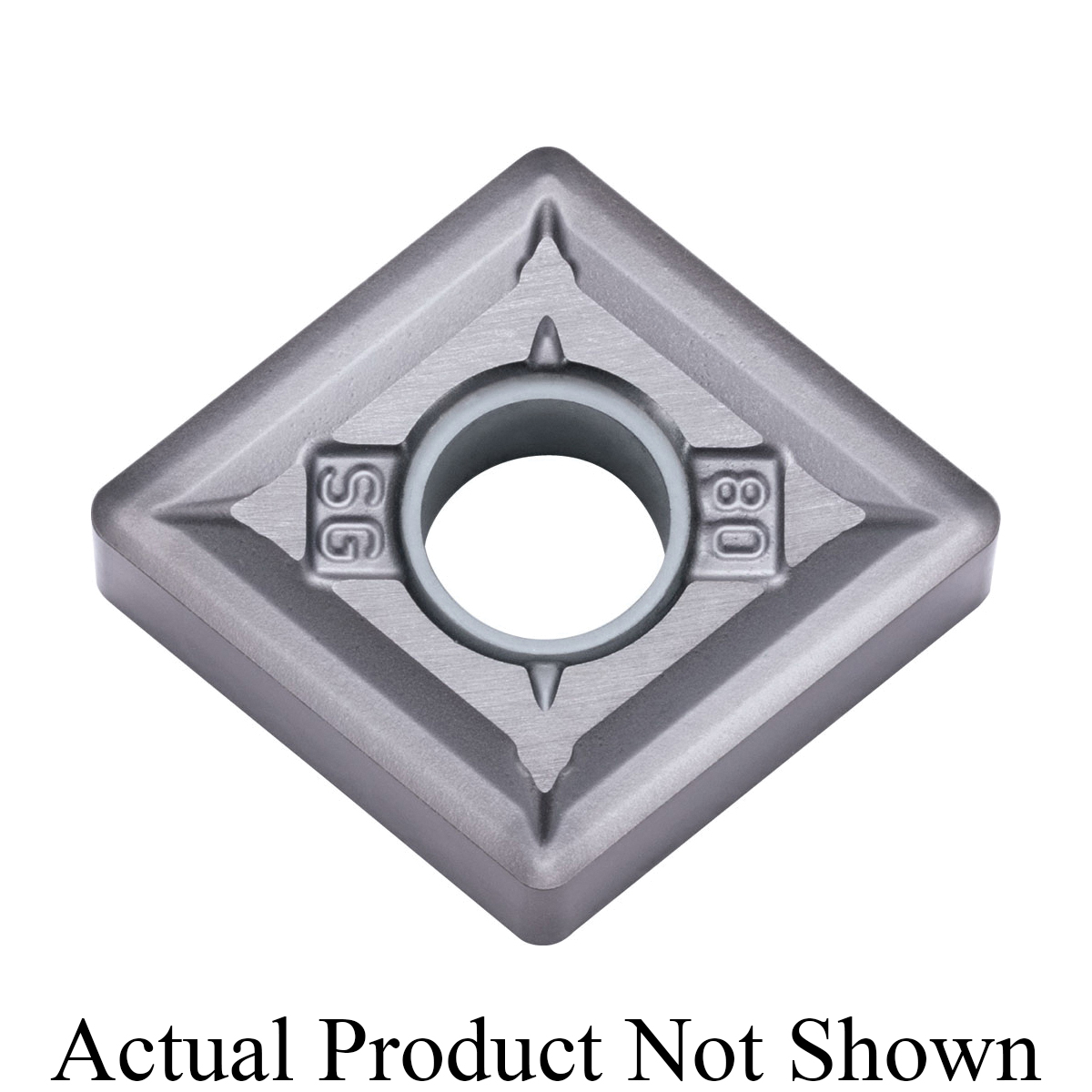

CNMG432SGPR1535 TURNING INSERT

CNMG432SGPR1535 TURNING INSERT

KYOCTLC00900 TLC00900
10.98 / EA
http://schema.org/OutOfStock
CNMG432SGPR1535 TURNING INSERT
  • Applicable Materials: Heat-Resistant Alloy, Stainless Steel and Titanium Alloy
  • Chipbreaker: SG
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNMG
  • ISO Code: CNMG120408SG
  • Material: Carbide
  • Material Grade: S, M
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: PVD-MEGACOAT NANO
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMG432SGPR1535
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1535
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: PR15
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • PVD for titanium alloy and precipitation hardened stainless steel
  • Heat-resistant alloy with 4 cutting edges
ECCN: EAR99
