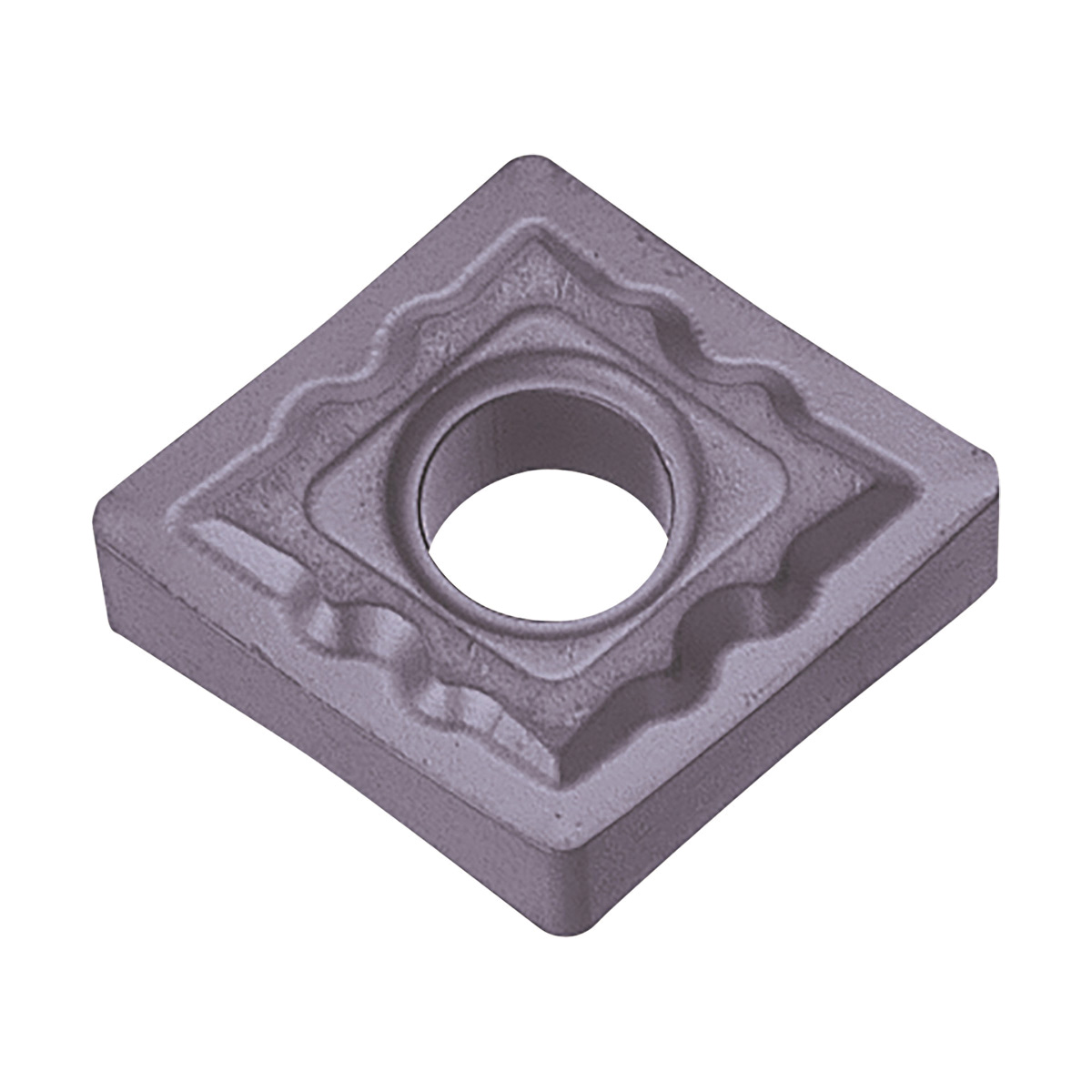

CNMP431TKPR930 TURNING INSERT

CNMP431TKPR930 TURNING INSERT

KYOCTKT60418 TKT60418
16.79 / EA
http://schema.org/OutOfStock
CNMP431TKPR930 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel and Stainless Steel
  • Chipbreaker: TK
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: CNMP
  • ISO Code: CNMP120404TK
  • Material: Carbide
  • Material Grade: P, M
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: PVD-TiCN Coated
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMP431TKPR930
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR930
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Hard TiCN base PVD coated super micro-grain carbide
  • Low cutting speed, precise cutting with sharp edge
