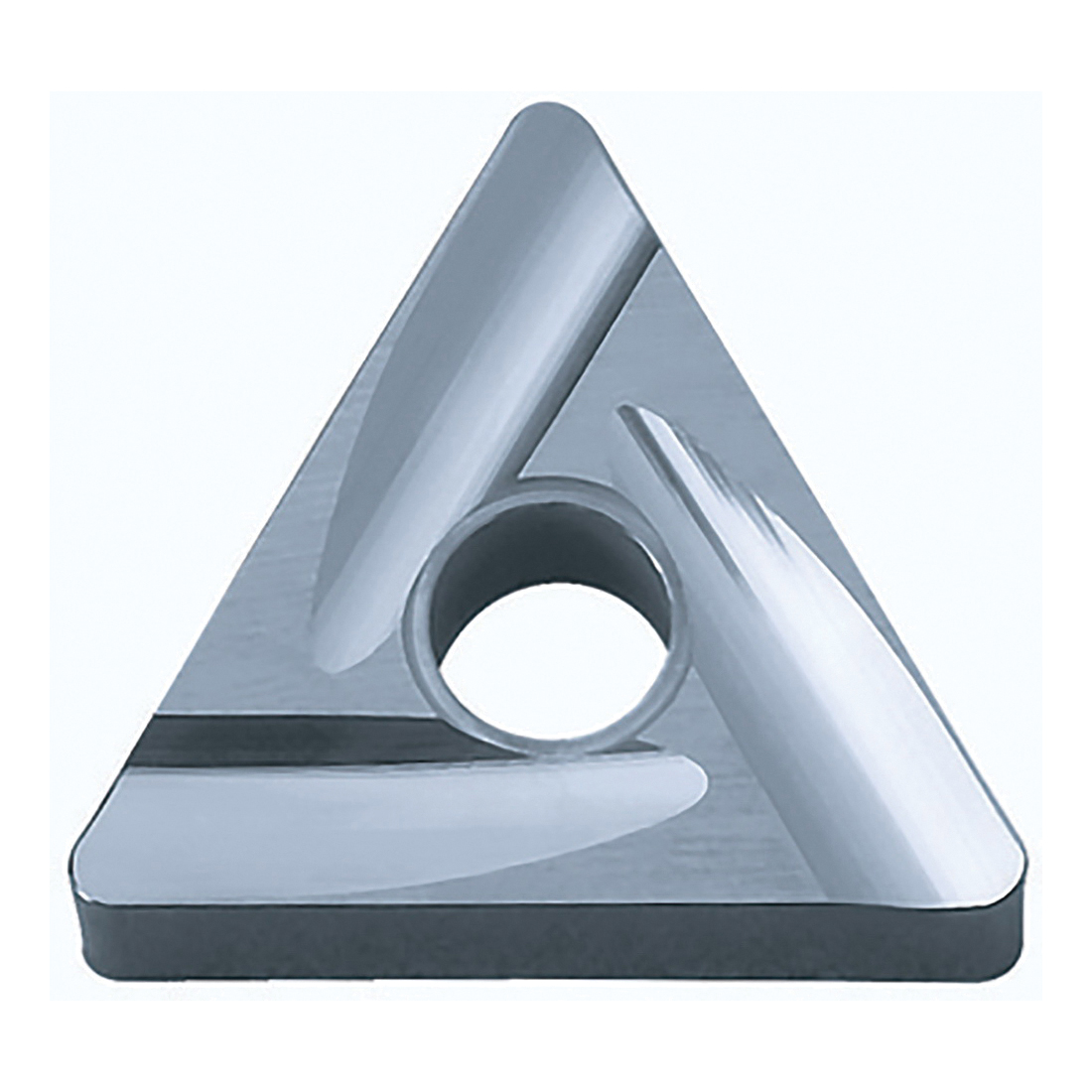

TNGG331R25RPR930 TURNING INSERT

TNGG331R25RPR930 TURNING INSERT

KYOCTKT03201 TKT03201
20.46 / EA
http://schema.org/OutOfStock
TNGG331R25RPR930 TURNING INSERT
  • Applicable Materials: Steel
  • Chipbreaker: 25R
  • Corner Radius: 1/64in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.15in
  • Included Angle: 60°
  • Inscribed Circle: 3/8in
  • Insert Size: 331
  • Insert Style: TNGG
  • ISO Code: TNGG160404R-25R PR930
  • Material: Carbide
  • Material Grade: P
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 16
  • Shape: Triangular
  • Surface Treatment: PVD-TiCN Coated
  • Thickness: 3/16in
  • Type: 2-Sided
  • ANSI Code: TNGG331R25R PR930
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR930
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Medium Roughing and General Turning
  • 25R chipbreaker - applicable to sticky material such as low carbon steel
  • Large rake angle and suitable for stainless steel
  • Low cutting forces
  • PR930 grade hard TiCN base PVD coated super micrograin carbide
  • Low cutting speed, precise cutting with sharp edge
