JCGT11091LFPR930 TURNING INSERT

JCGT11091LFPR930 TURNING INSERT

KYOCTKT00736 TKT00736
26.50 / EA
http://schema.org/OutOfStock
JCGT11091LFPR930 TURNING INSERT

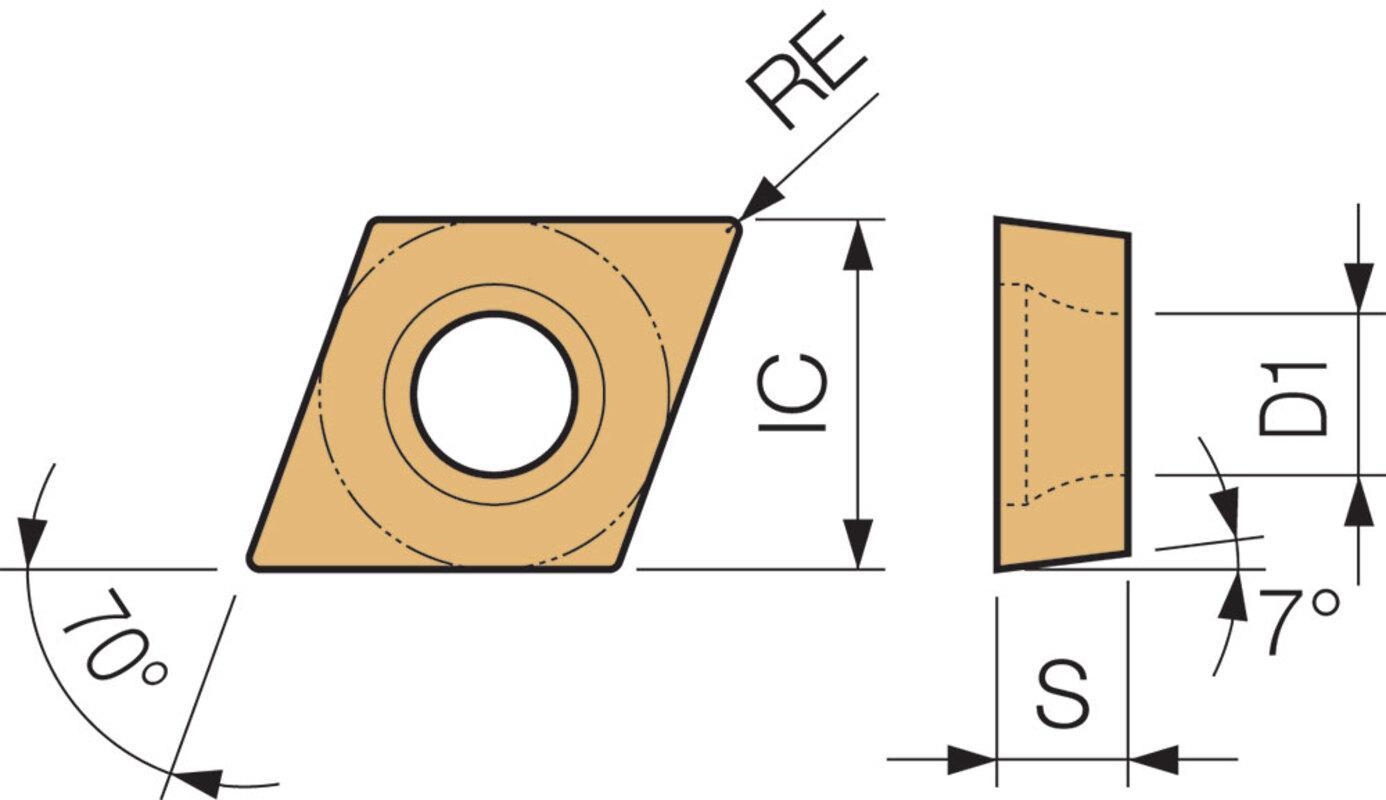

  • Applicable Materials: Carbon/Alloy Steel and Stainless Steel
  • Chipbreaker: F
  • Corner Radius: 0.0157in
  • Hand Direction: Left Hand
  • Hole Diameter: 0.0748in
  • Included Angle: 70°
  • Inscribed Circle: 0.1378in
  • Insert Size: #11091
  • Insert Style: JCGT
  • ISO Code: JCGT030104L-F
  • Material: Carbide
  • Material Grade: P, M
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 03, 3
  • Shape: Diamond
  • Surface Treatment: PVD-TiCN Coated
  • Thickness: 0.0551in
  • Type: 2-Cutting Edge
  • ANSI Code: JCGT11091LFPR930
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR930
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Back Boring, Boring and Internal Facing Applications
  • Sharp edge with 2-cutting edges
  • Hard TiCN base PVD coated super micro-grain carbide
  • Low cutting speed, precise cutting with sharp edge
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
