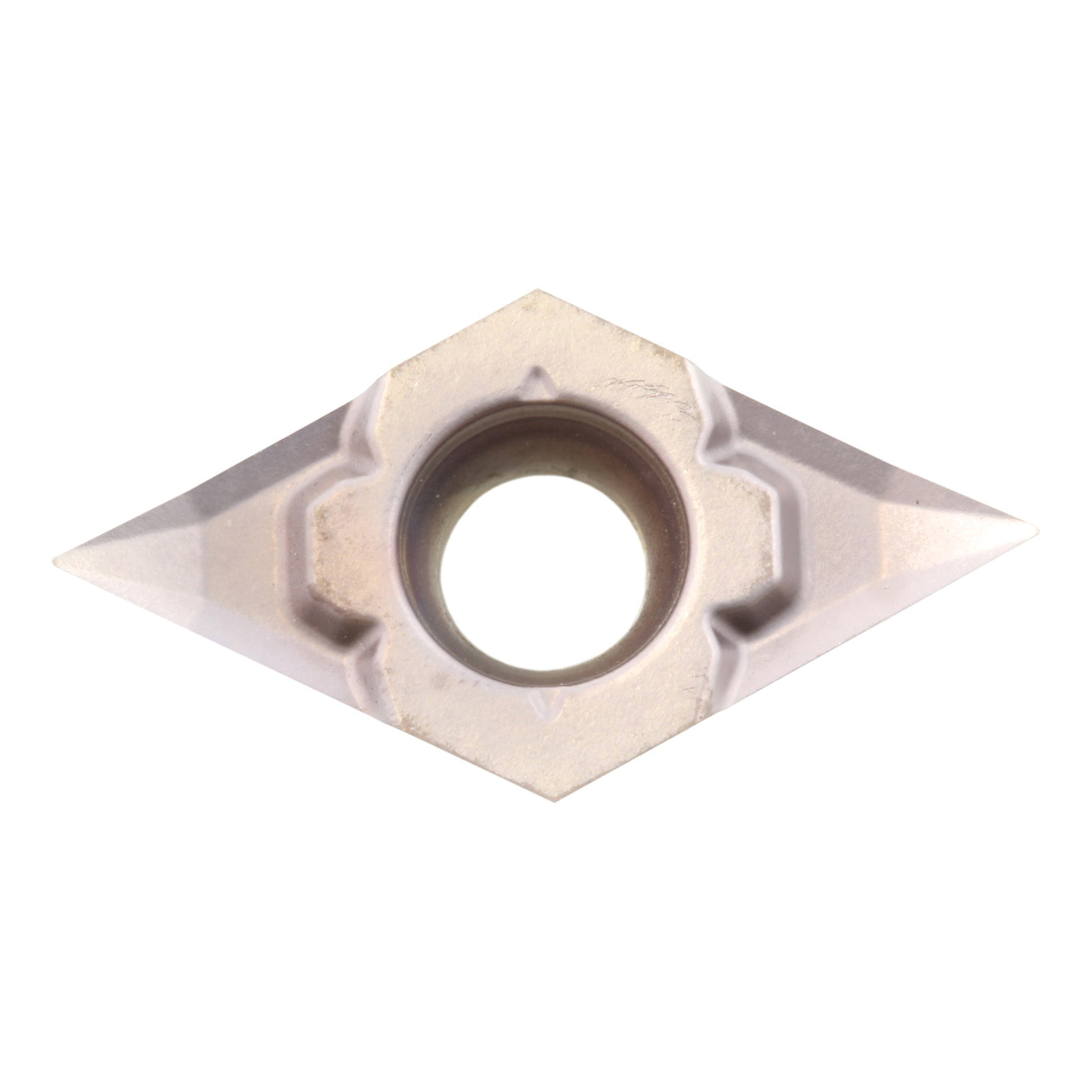

DCGT21502CKPR930 TURNING INSERT

DCGT21502CKPR930 TURNING INSERT

KYOCTKT00613 TKT00613
30.94 / EA
http://schema.org/OutOfStock
DCGT21502CKPR930 TURNING INSERT
  • Applicable Materials: Steel
  • Chipbreaker: CK
  • Corner Radius: 0.004in
  • Hand Direction: Neutral
  • Hole Diameter: 0.11in
  • Included Angle: 55°
  • Inscribed Circle: 1/4in
  • Insert Size: 21502
  • Insert Style: DCGT
  • ISO Code: DCGT070201CK PR930
  • Material: Carbide
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 07, 7
  • Shape: Rhombic
  • Surface Treatment: TiCN Coated
  • Thickness: 3/32in
  • Type: 1-Sided
  • ANSI Code: DCGT21502CK PR930
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR930
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Finishing and General Turning
  • CK chipbreaker - good cutting performance
  • Applicable without hand for two direction cutting on automatic lathe
  • Honed cutting edge
  • PR930 grade hard TiCN base PVD coated super micrograin carbide
  • Low cutting speed, precise cutting with sharp edge
