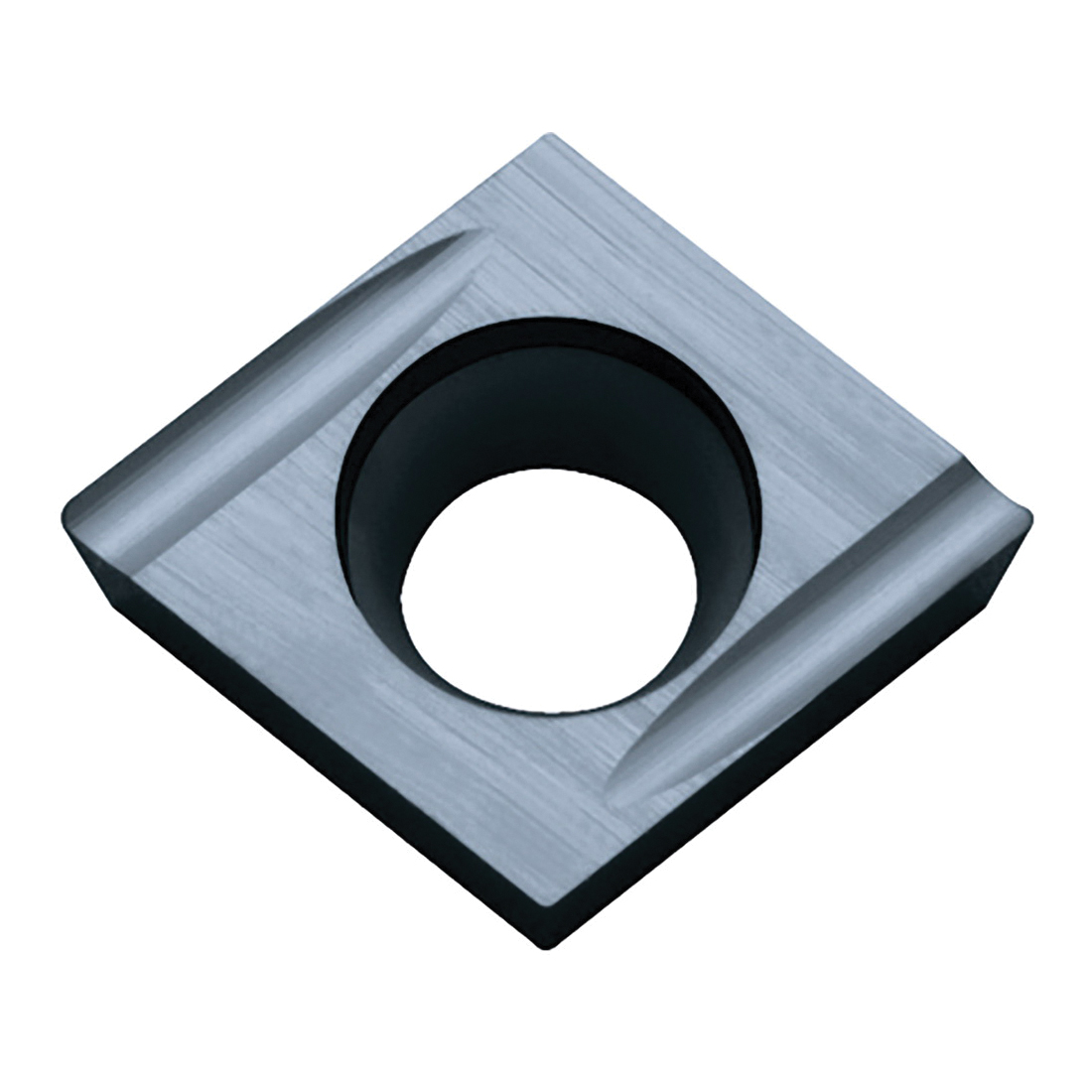

CCGT2151ELUPR930 TURNING INSERT
CCGT2151ELUPR930 TURNING INSERT
KYOCTKT00074
TKT00074
19.76
/ EA
http://schema.org/OutOfStock
/Product/KYOCTKT00074
- Applicable Materials: Steel
- Chipbreaker: U
- Corner Radius: 1/64in
- Hand Direction: Left Hand
- Hole Diameter: 0.11in
- Included Angle: 80°
- Inscribed Circle: 1/4in
- Insert Size: 2151
- Insert Style: CCGT
- ISO Code: CCGT060204EL-U PR930
- Material: Carbide
- Material Grade: P
- Rake: Positive
- Relief Angle: 7°
- Shape: Diamond
- Surface Treatment: PVD-TiCN Coated
- Thickness: 3/32in
- ANSI Code: CCGT2151ELU PR930
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR930
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
General Turning Applications
- U chipbreaker - good chip control at low feed rate and varied radial depth of cut with low cutting force
- Suitable for automatic lathes
- Low feed
- PR930 grade hard TiCN base PVD coated super micrograin carbide
- Low cutting speed, precise cutting with sharp edge
