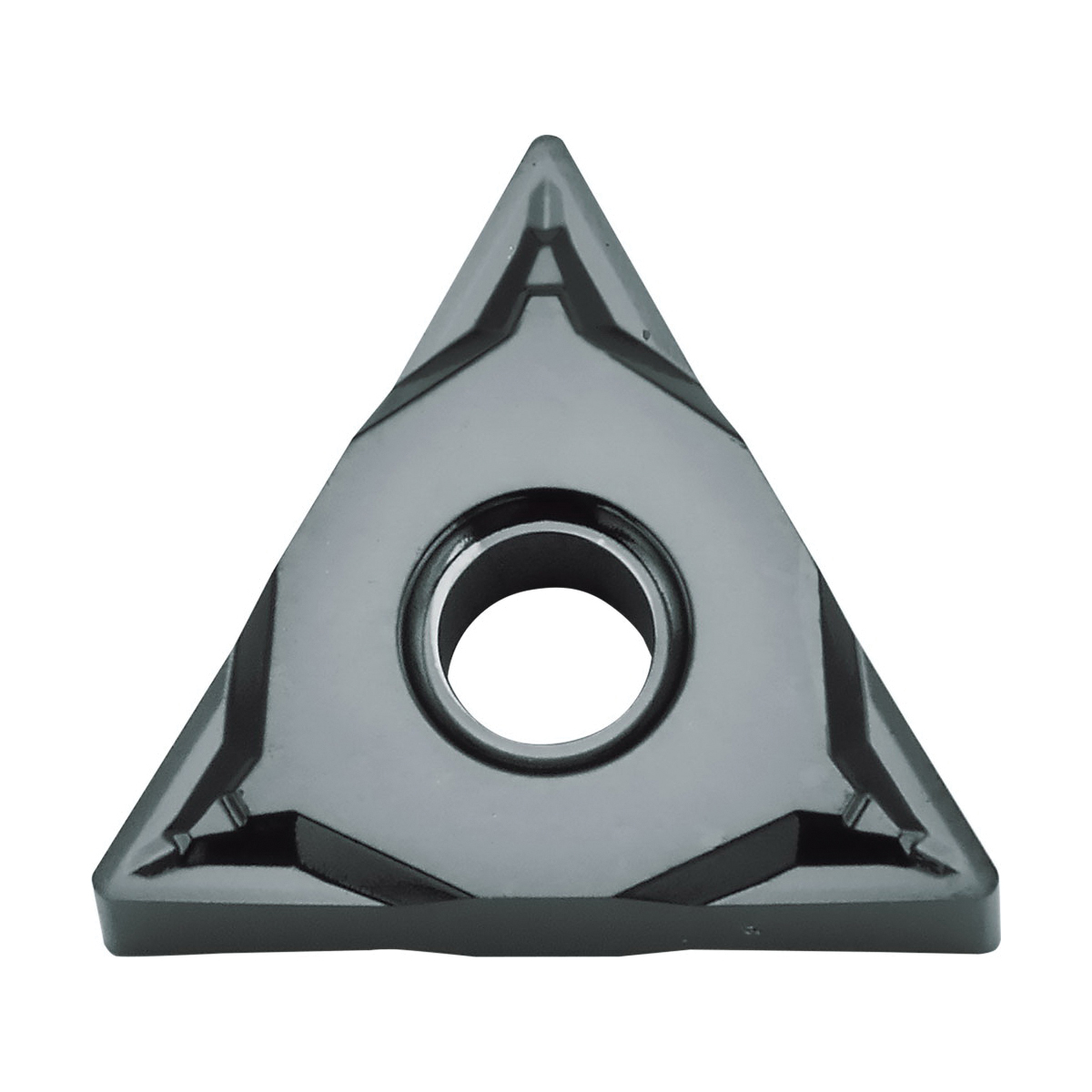

TNGG331MFPSKPR1225 TURNING INSERT
TNGG331MFPSKPR1225 TURNING INSERT
KYOCTKE17704
TKE17704
19.33
/ EA
http://schema.org/OutOfStock
/Product/KYOCTKE17704
- Applicable Materials: Carbon/Alloy Steel and Stainless Steel
- Chipbreaker: SK
- Corner Radius: <1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.15in
- Included Angle: 60°
- Inscribed Circle: 3/8in
- Insert Size: #331
- Insert Style: TNGG
- ISO Code: TNGG160404MFP-SK
- Material: Carbide
- Material Grade: M, P
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 16
- Shape: Triangle
- Surface Treatment: PVD-MEGACOAT
- Thickness: 3/16in
- Type: 6-Cutting Edge
- ANSI Code: TNGG331MFPSKPR1225
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1225
- Manufacturer Name: KYOCERA Precision Tools
- Series: PR12
- Application
- Item Features
- Standards
External Turning, Facing, Up Facing, Copying, Chamfering and Boring Applications
- Sharp edge/polished/minus tolerance corner radius with 6 cutting edges
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- For finishing to medium machining in automatic lathes
- Sharp cutting performance equivalent to positive inserts
- Two step dot design provides reliable chip control at various applications
- Light interrupted to interrupted cutting of stainless steel
ECCN: EAR99
