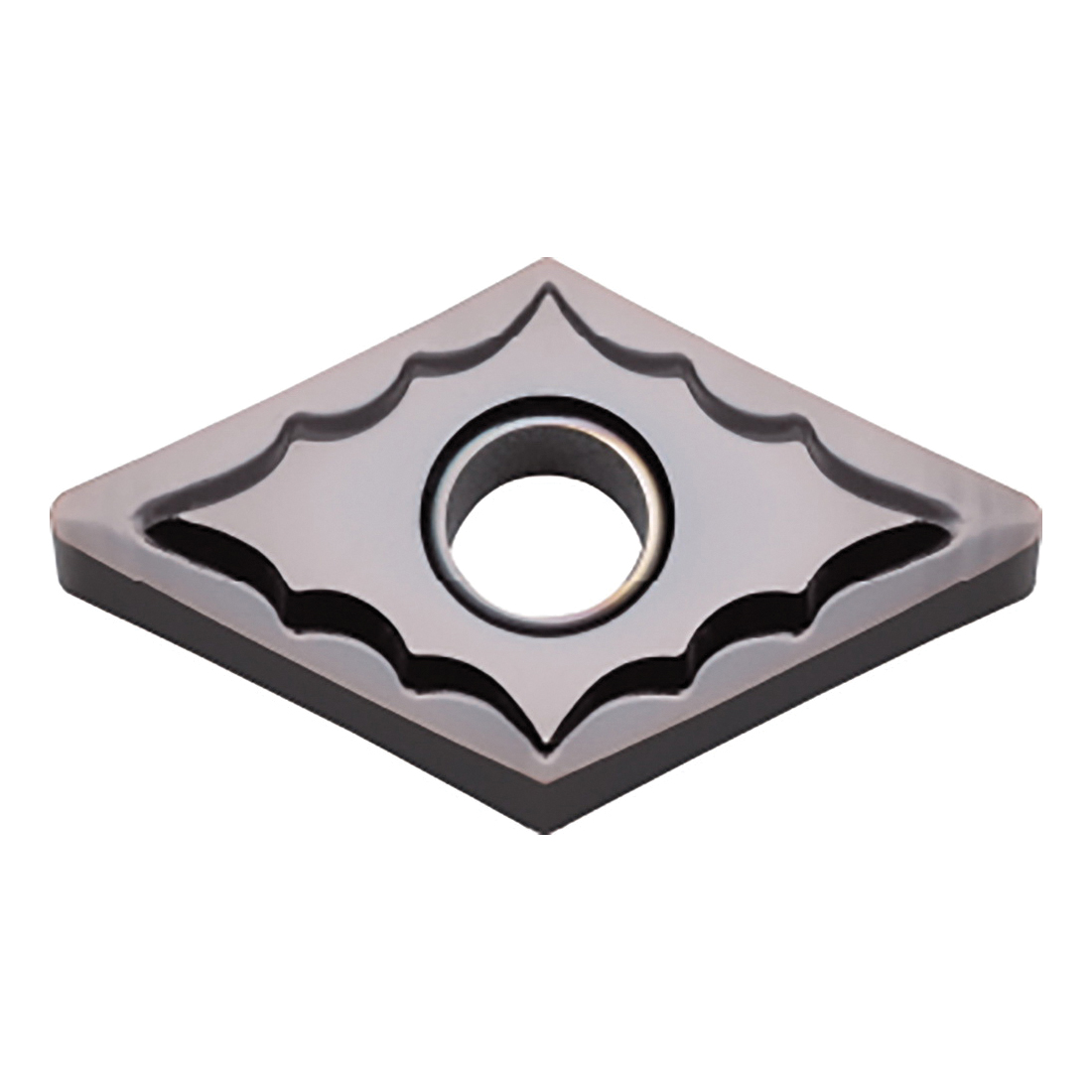

DNGG432FPTKPR1225 TURNING INSERT

DNGG432FPTKPR1225 TURNING INSERT

KYOCTKE03711 TKE03711
31.60 / EA
http://schema.org/OutOfStock
DNGG432FPTKPR1225 TURNING INSERT
  • Applicable Materials: Stainless Steel
  • Chipbreaker: TK
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: 432
  • Insert Style: DNGG
  • ISO Code: DNGG150408FP-TK PR1225
  • Material: Carbide
  • Material Grade: M
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Rhombic
  • Surface Treatment: MEGACOAT
  • Thickness: 3/16in
  • Type: 2-Sided
  • ANSI Code: DNGG432FPTK PR1225
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PR1225
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Medium Roughing and General Turning
  • TK chipbreaker - smooth chipbreaker geometry improves chip flow with less adhesion
  • Large curled chips
  • Sharp edge, polished
  • PR1225 grade superior wear and oxidation resistant MEGACOAT on micrograin carbide substrate
  • Light interrupted to interrupted cutting of stainless steel
