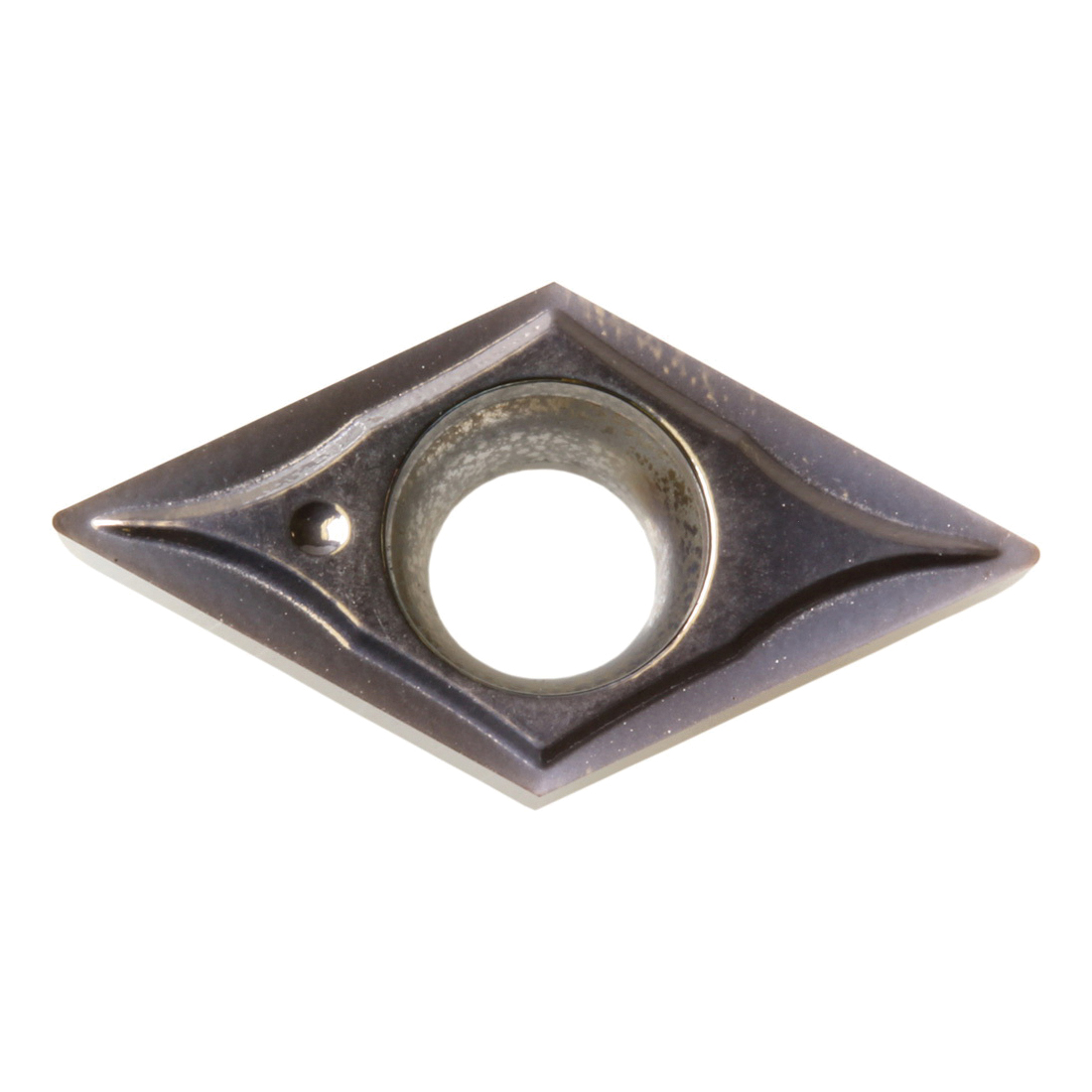

DCGT21505MFPGQPR1225 TURNING INSERT
DCGT21505MFPGQPR1225 TURNING INSERT
KYOCTKE03431
TKE03431
16.30
/ EA
http://schema.org/OutOfStock
/Product/KYOCTKE03431
- Applicable Materials: Stainless Steel
- Chipbreaker: GQ
- Corner Radius: 0.008in
- Hand Direction: Neutral
- Hole Diameter: 0.11in
- Included Angle: 55°
- Inscribed Circle: 1/4in
- Insert Size: 21505
- Insert Style: DCGT
- ISO Code: DCGT070202MFP-GQ PR1225
- Material: Carbide
- Material Grade: M
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 7
- Shape: Rhombic
- Surface Treatment: MEGACOAT
- Thickness: 3/32in
- Type: 1-Sided
- ANSI Code: DCGT21505MFPGQ PR1225
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1225
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
Medium Finishing and General Turning
- GQ chipbreaker - enables cutting over a wide range of conditions by using the optimum chipbreaker width according to the cutting depth
- Sharp edge, polished
- PR1225 grade superior wear and oxidation resistant MEGACOAT on micrograin carbide substrate
- Light interrupted to interrupted cutting of stainless steel
