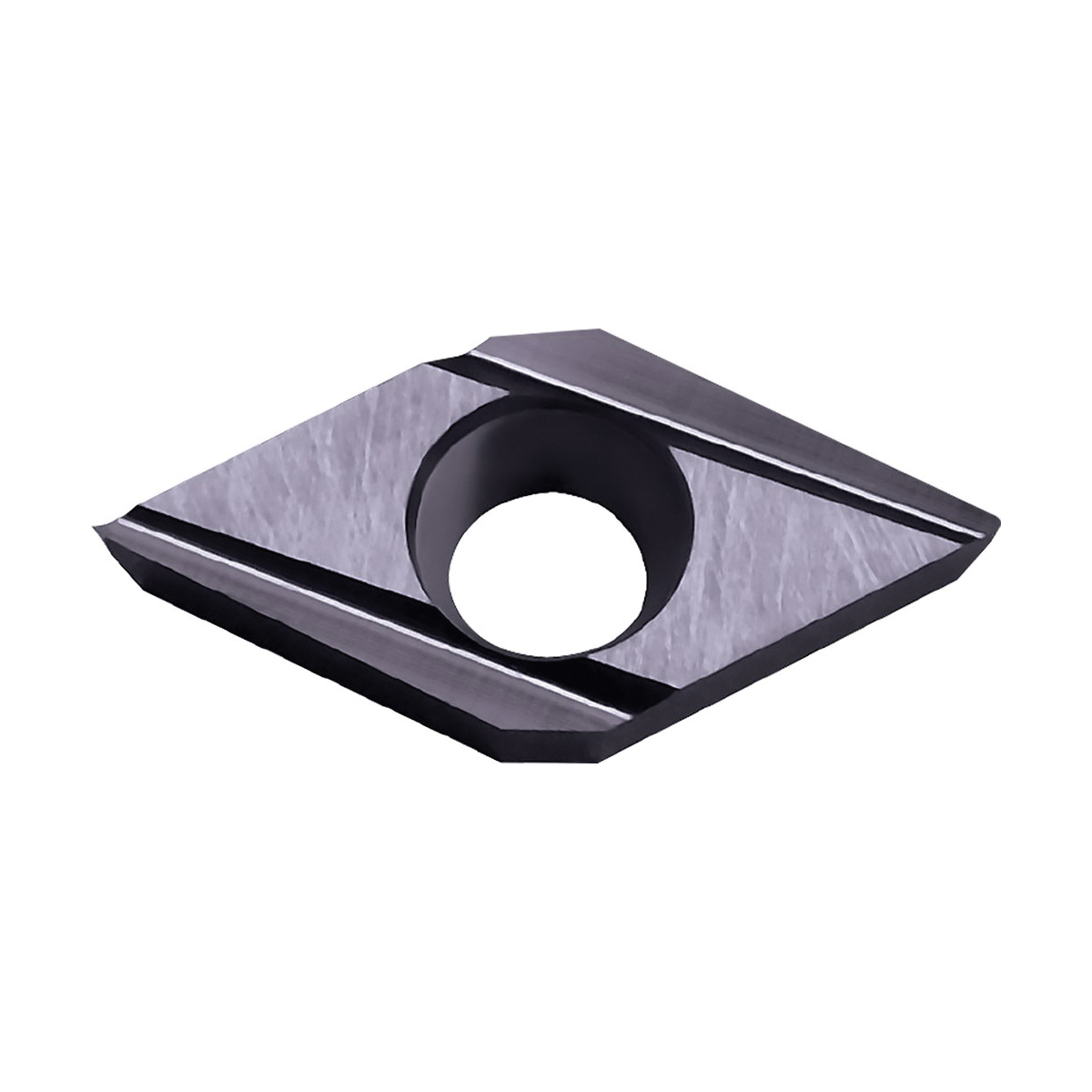

DCGT32502MFRJPR1225 TURNING INSERT
DCGT32502MFRJPR1225 TURNING INSERT
KYOCTKE03403
TKE03403
21.17
/ EA
http://schema.org/OutOfStock
/Product/KYOCTKE03403
- Applicable Materials: Carbon/Alloy Steel and Stainless Steel
- Chipbreaker: J
- Corner Radius: <0.0039in
- Hand Direction: Right Hand
- Hole Diameter: 0.1732in
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: #32502
- Insert Style: DCGT
- ISO Code: DCGT11T301MFR-J
- Material: Carbide
- Material Grade: M, P
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 11
- Shape: Rhombic
- Surface Treatment: PVD-MEGACOAT
- Thickness: 5/32in
- Type: 2-Cutting Edge
- ANSI Code: DCGT32502MFRJPR1225
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1225
- Manufacturer Name: KYOCERA Precision Tools
- Series: PR12
- Application
- Item Features
- Standards
External Turning, Copying, Back Boring and Sub-Spindle Applications
- Sharp edge/minus tolerance corner radius with 2 cutting edges
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Light interrupted to interrupted cutting of stainless steel
- Slant chipbreaker width and chip control at various applications
- Applicable to automatic lathes
ECCN: EAR99
