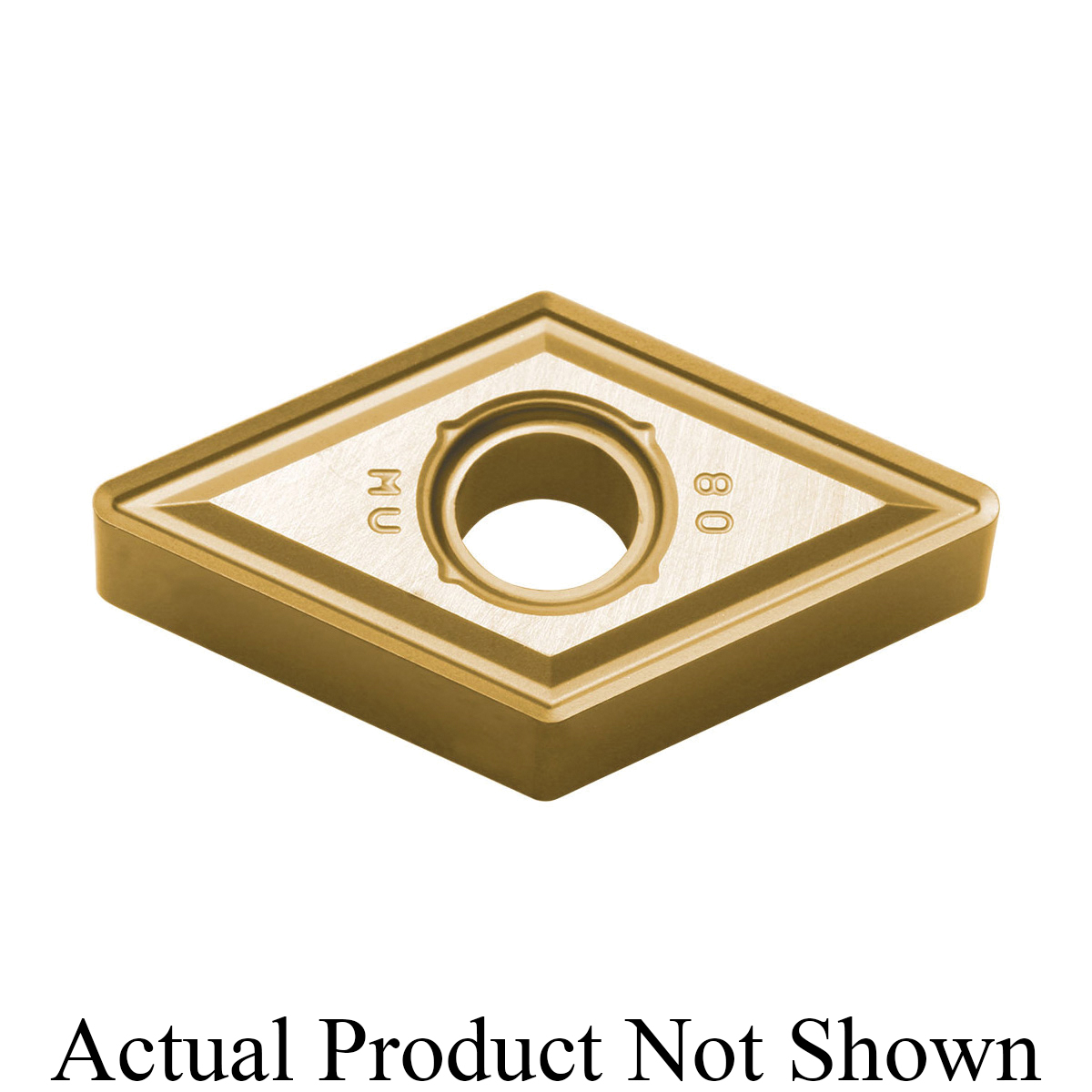

DNMG431MUCA6525 TURNING INSERT

DNMG431MUCA6525 TURNING INSERT

KYOCTJV02261 TJV02261
18.41 / EA
http://schema.org/OutOfStock
DNMG431MUCA6525 TURNING INSERT
  • Applicable Materials: Stainless Steel and Heat-Resistant Alloy
  • Chipbreaker: MU
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: DNMG
  • ISO Code: DNMG150404MU
  • Material: Carbide
  • Material Grade: M, S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: DNMG431MUCA6525
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA6525
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Copying and External Turning Applications
  • Stainless steel/HRSA with 4-cutting edges
  • Specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness
  • First choice for general cutting of stainless steel, from finishing to roughing, continuous to interruption
