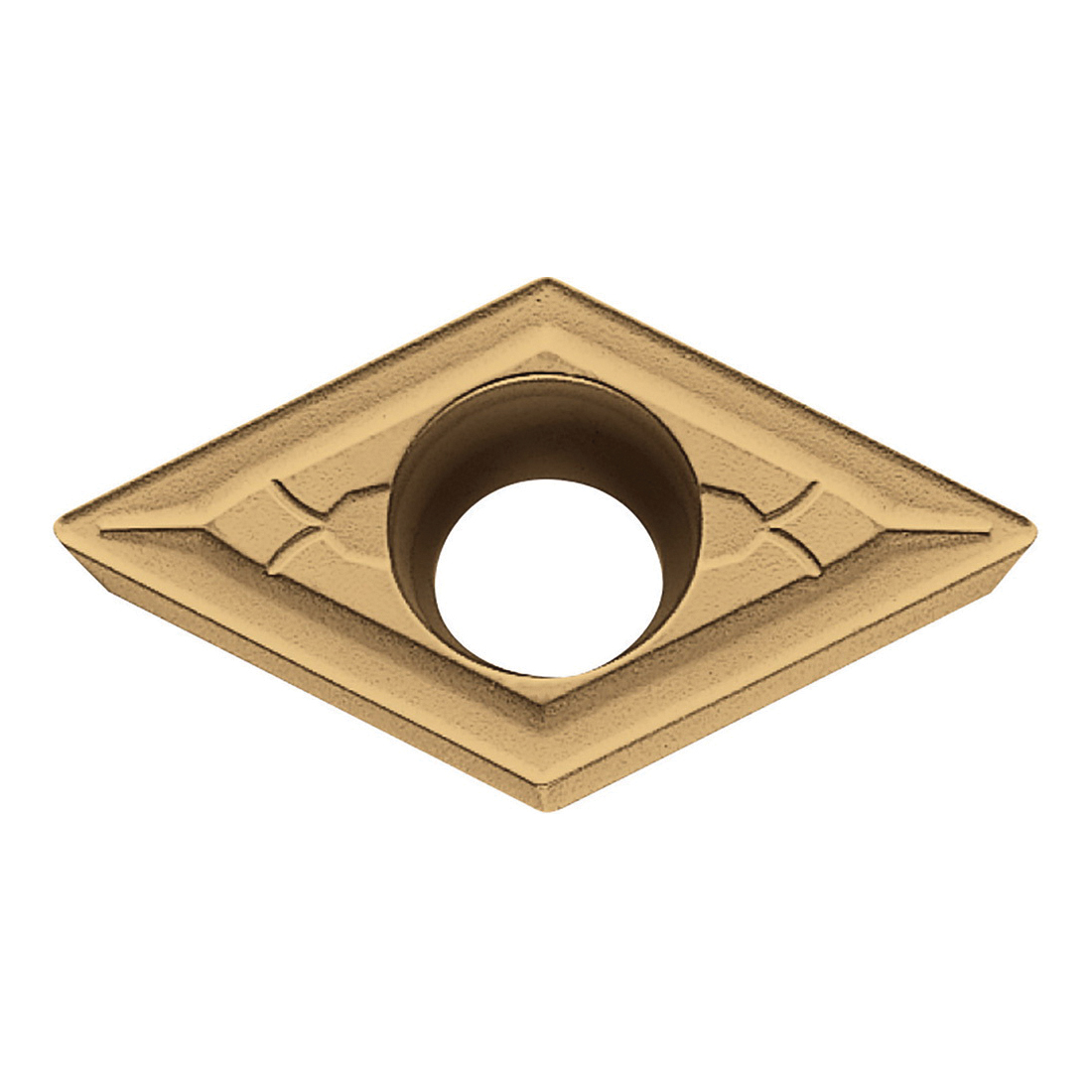

DCMT21505GKCA6515 TURNING INSERT

DCMT21505GKCA6515 TURNING INSERT

KYOCTJU01805 TJU01805
15.38 / EA
http://schema.org/OutOfStock
DCMT21505GKCA6515 TURNING INSERT
  • Applicable Materials: Stainless Steel
  • Chipbreaker: GK
  • Corner Radius: 0.008in
  • Hand Direction: Neutral
  • Hole Diameter: 0.11in
  • Included Angle: 55°
  • Inscribed Circle: 1/4in
  • Insert Size: 21505
  • Insert Style: DCMT
  • ISO Code: DCMT070202GK CA6515
  • Material: Carbide
  • Material Grade: M
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 7
  • Shape: Rhombic
  • Surface Treatment: CVD-TiCN/Al2O3/TiN Coated
  • Thickness: 3/32in
  • Type: 1-Sided
  • ANSI Code: DCMT21505GK CA6515
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA6515
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
Medium Finishing and General Turning
  • Minimizes notching
  • Prevents burrs
  • Reduces edge build-up
  • Prevents fracture by thin film coating
  • Prevents chattering and cutting edge damage at steel machining
  • GK chipbreaker - good chip evacuation at wide range by breaker dot and wide chip pocket
  • CA6515 grade specialized carbide substrate for stainless steel cutting and excellent wear resistance
  • Continuous to light interrupted cutting of stainless steel
