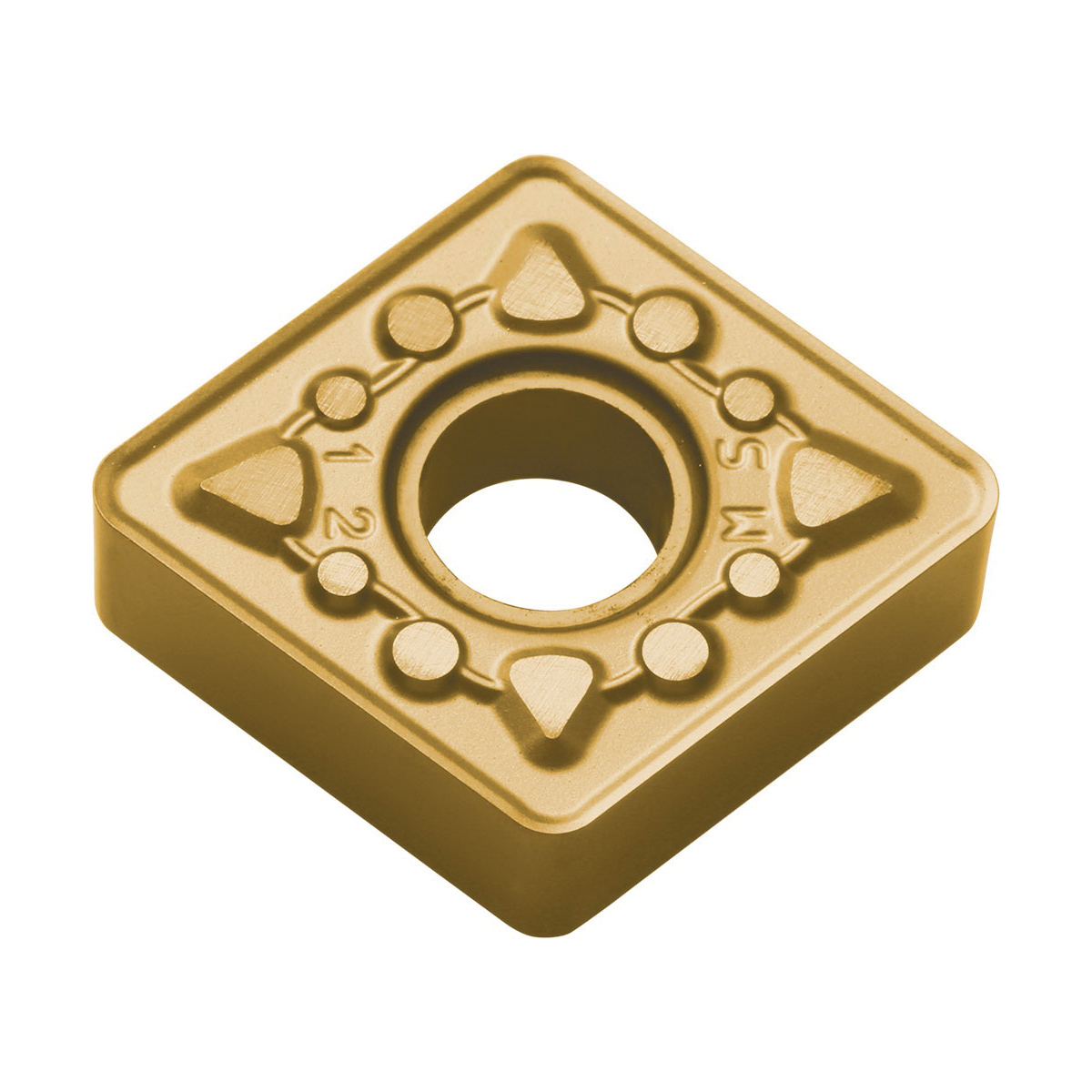

CNMG433MSCA6515 TURNING INSERT

CNMG433MSCA6515 TURNING INSERT

KYOCTJU00923 TJU00923
10.36 / EA
http://schema.org/OutOfStock
CNMG433MSCA6515 TURNING INSERT
  • Applicable Materials: Heat-Resistant Alloy and Stainless Steel
  • Chipbreaker: MS
  • Corner Radius: 3/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #433
  • Insert Style: CNMG
  • ISO Code: CNMG120412MS
  • Material: Carbide
  • Material Grade: M, S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: CVD/TiCl2O3/TiN Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMG433MSCA6515
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA6515
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: CA65
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Specialized carbide substrate for stainless steel cutting, excellent wear resistance
  • Continuous to light interrupted cutting of stainless steel
  • Superior cutting edge sharpness and strength achieved by a positive land
  • Extra strength of cutting edge inhibits damage from wall shouldering
  • Stainless steel/HRSA with 4 cutting edges
ECCN: EAR99
