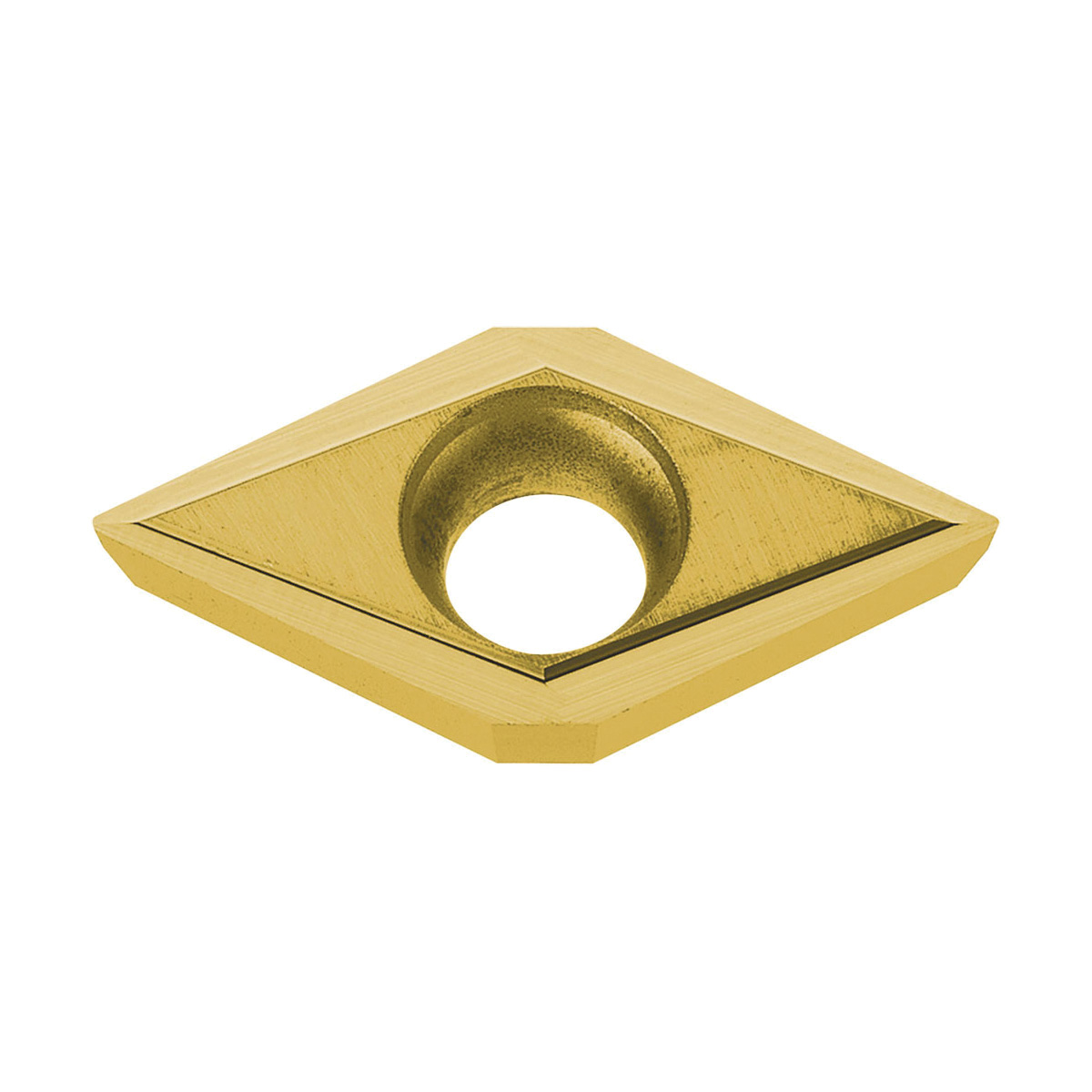

DCGT2151FNZPV7020 TURNING INSERT

DCGT2151FNZPV7020 TURNING INSERT

KYOCTJL60559 TJL60559
18.01 / EA
http://schema.org/OutOfStock
DCGT2151FNZPV7020 TURNING INSERT
  • Applicable Materials: Carbon/Alloy Steel
  • Chipbreaker: FN-Z
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1102in
  • Included Angle: 55°
  • Inscribed Circle: 1/4in
  • Insert Size: #2151
  • Insert Style: DCGT
  • ISO Code: DCGT070204FN-Z
  • Material: Cermet
  • Material Grade: P
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 07, 7
  • Shape: Diamond
  • Surface Treatment: PVD-TiCN/MEGACOAT
  • Thickness: 0.0937in
  • Type: 2-Cutting Edge
  • ANSI Code: DCGT2151FNZPV7020
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV7020
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Back Boring, Copying, External Turning and Sub-Spindle Applications
  • Sharp edge with 2-cutting edges
  • Multi-layer PVD coated super micro-grain cermet for superior performance
  • Good wear resistance when high speed machining steel and stainless steel
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
