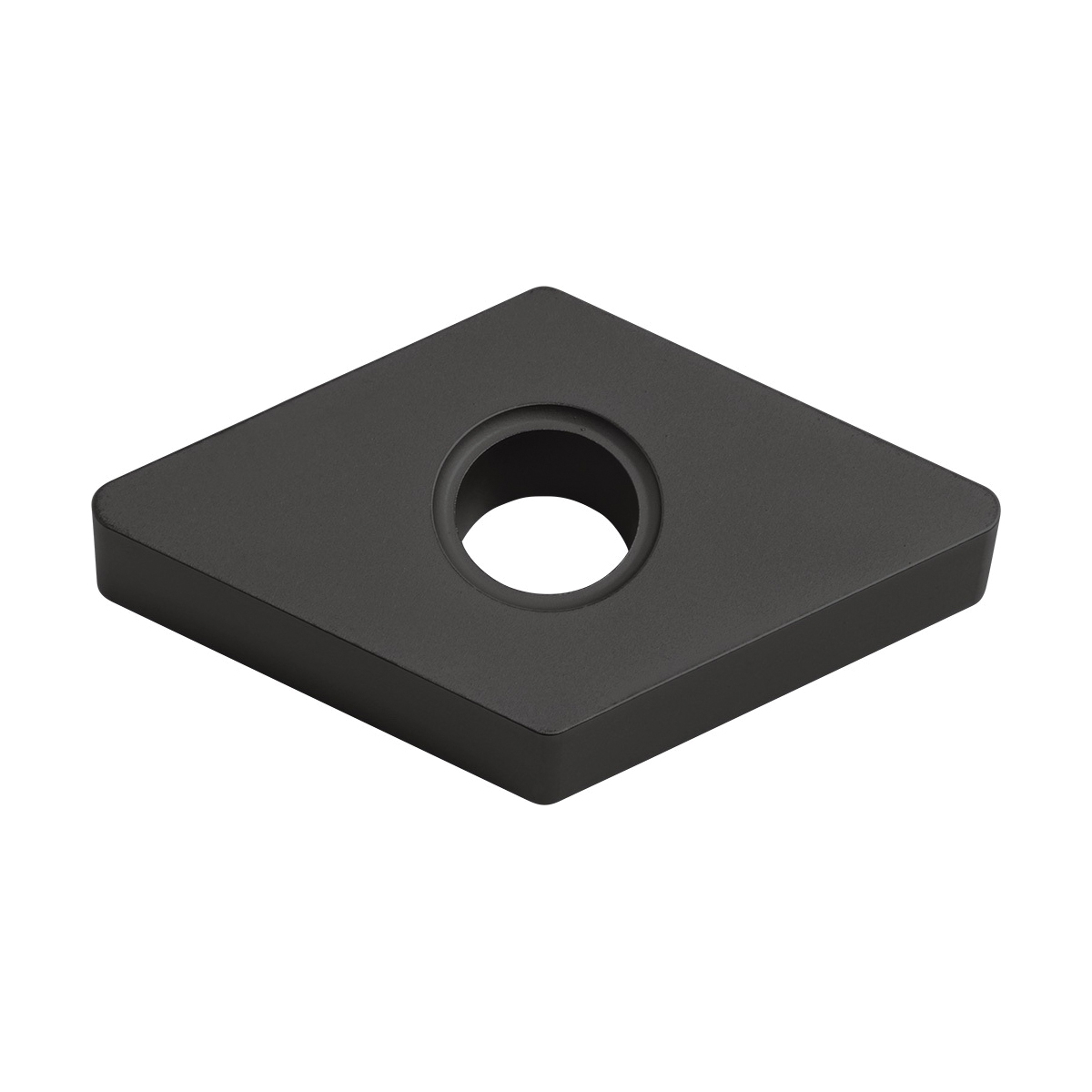

DNMA432CA4515 TURNING INSERT
DNMA432CA4515 TURNING INSERT
KYOCTJH01941
TJH01941
12.15
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJH01941
- Applicable Materials: Gray Nodular Cast Iron
- Corner Radius: 1/32in
- Hand Direction: Neutral
- Hole Diameter: 0.2031in
- Included Angle: 55°
- Inscribed Circle: 1/2in
- Insert Size: #432
- Insert Style: DNMA
- ISO Code: DNMA150408
- Material: Carbide
- Material Grade: K
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 15
- Shape: Rhombic
- Surface Treatment: VDC-TiCN/Al2O3 Coated
- Thickness: 3/16in
- Type: 4-Cutting Edge
- ANSI Code: DNMA432CA4515
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CA4515
- Manufacturer Name: KYOCERA Precision Tools
- Series: CA45
- Application
- Item Features
- Standards
External Turning, Copying and Boring Applications
- Stable, long tool life due to improved bonded force of coating layers and special treatment on the surface of top coated layer
- First choice for gray cast iron and nodular cast iron in light to heavy interrupted cutting
- Without chipbreaker with 4 cutting edges
ECCN: EAR99
