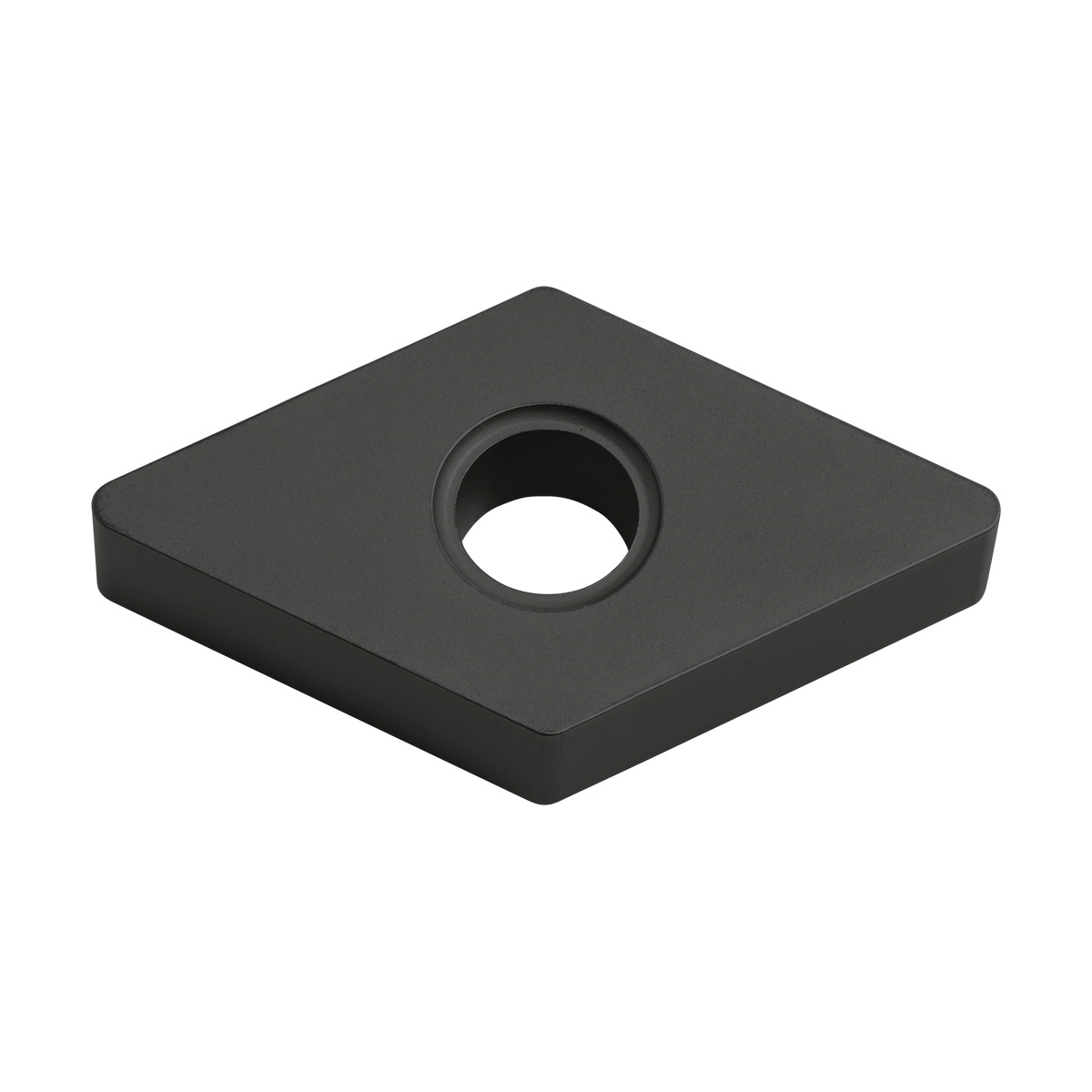

DNMA431CA4515 TURNING INSERT

DNMA431CA4515 TURNING INSERT

KYOCTJH01940 TJH01940
11.04 / EA
http://schema.org/OutOfStock
DNMA431CA4515 TURNING INSERT
  • Applicable Materials: Gray Cast Iron and Nodular Cast Iron
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: DNMA
  • ISO Code: DNMA150404
  • Material: Carbide
  • Material Grade: K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN/Al2O3 Coated
  • Thickness: 0.1874in
  • Type: 4-Cutting Edge
  • ANSI Code: DNMA431CA4515
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA4515
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Copying and External Turning Applications
  • Without chipbreaker with 4-cutting edges
  • Stable, long tool life due to improved bonded force of coating layers and special treatment on the surface of top coated layer
  • First choice for gray cast iron and nodular cast iron in light to heavy interrupted cutting
