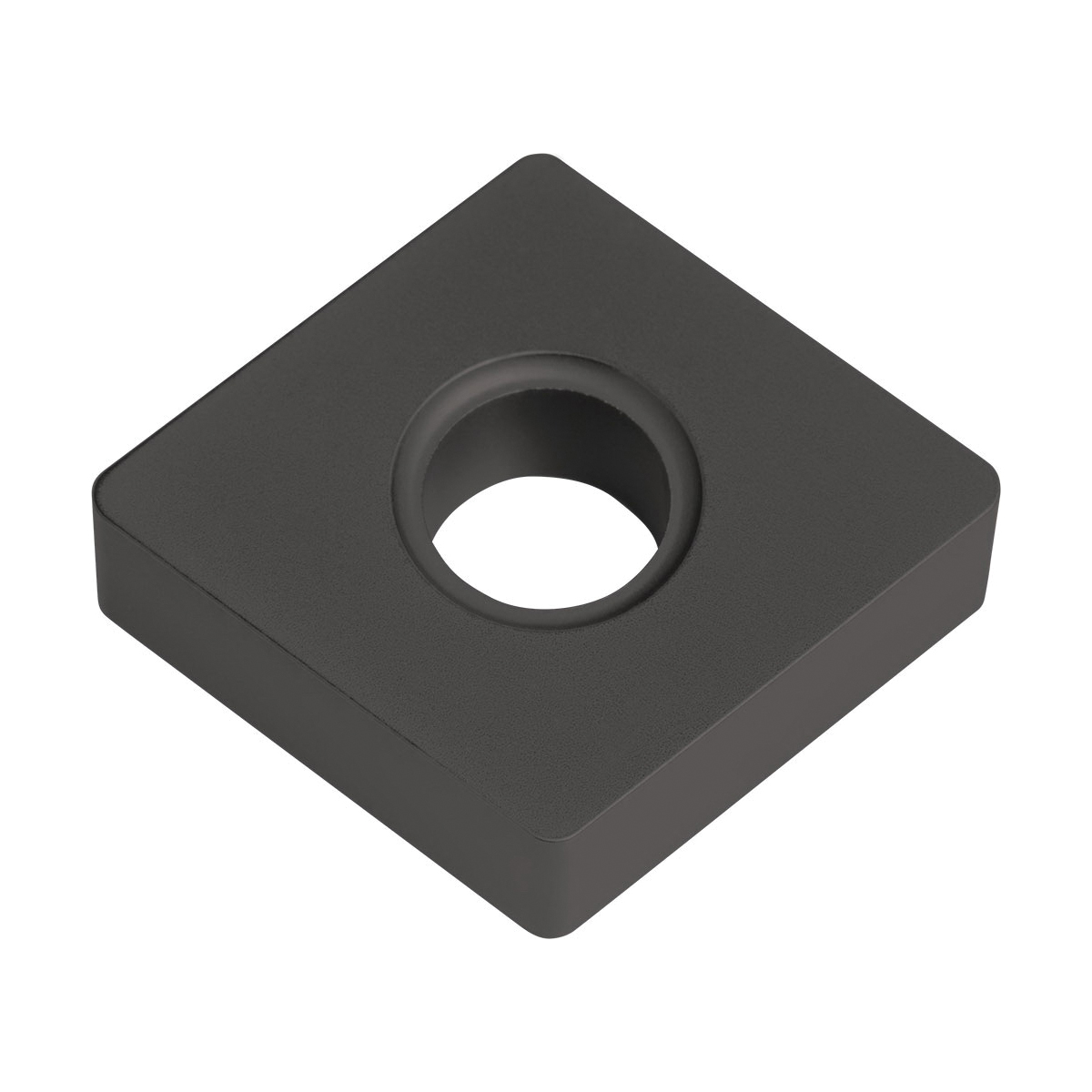

CNMA431CA4515 TURNING INSERT

CNMA431CA4515 TURNING INSERT

KYOCTJH00560 TJH00560
8.84 / EA
http://schema.org/OutOfStock
CNMA431CA4515 TURNING INSERT
  • Applicable Materials: Gray Nodular Cast Iron
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: CNMA
  • ISO Code: CNMA120404
  • Material: Carbide
  • Material Grade: K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: VDC-TiCN/Al2O3 Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMA431CA4515
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CA4515
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: CA45
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Stable, long tool life due to improved bonded force of coating layers and special treatment on the surface of top coated layer
  • First choice for gray cast iron and nodular cast iron in light to heavy interrupted cutting
  • Without chipbreaker with 4 cutting edges
ECCN: EAR99
