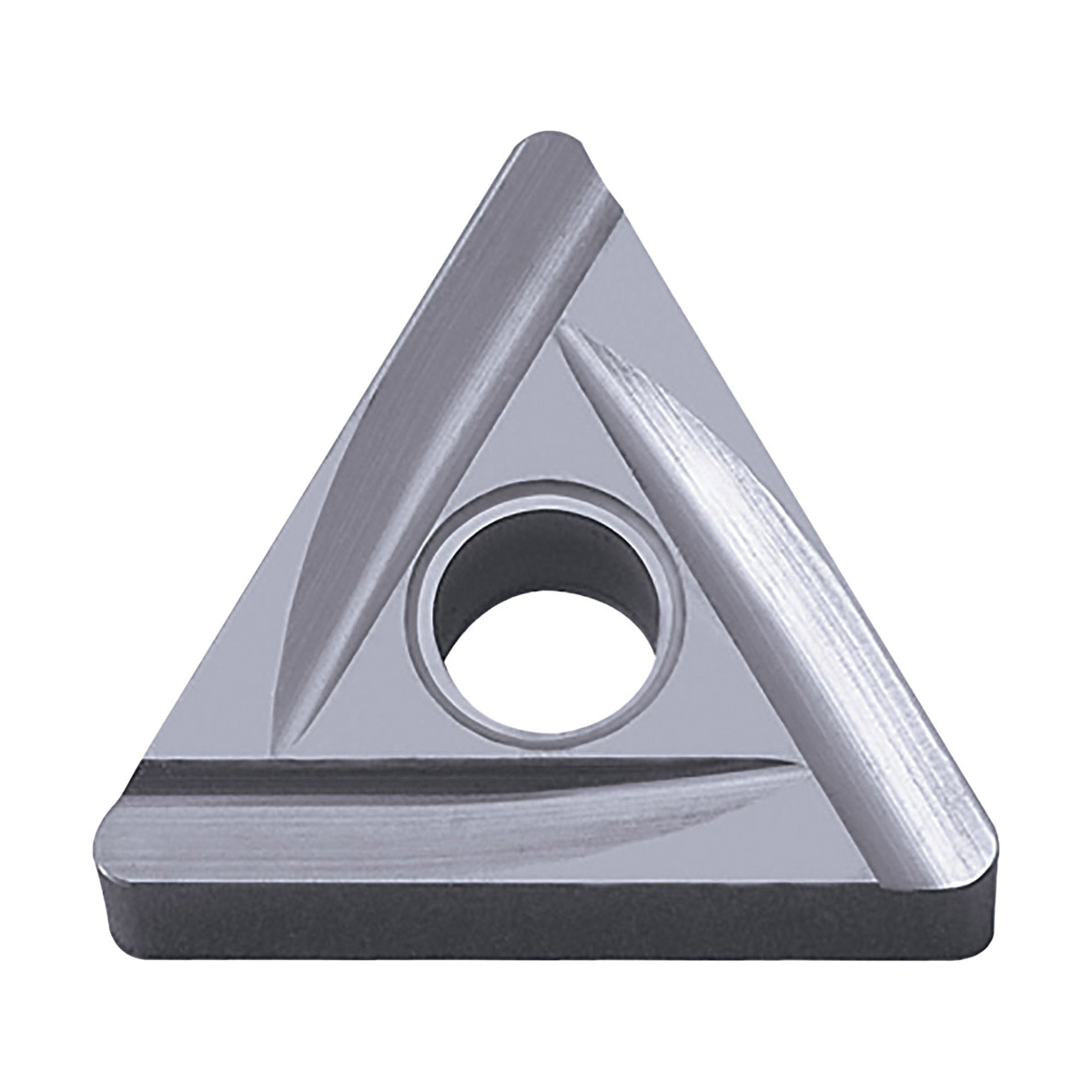

TNGG331RBPV7005 TURNING INSERT

TNGG331RBPV7005 TURNING INSERT

KYOCTJA05963 TJA05963
15.43 / EA
http://schema.org/OutOfStock
TNGG331RBPV7005 TURNING INSERT
  • Applicable Materials: Gray Cast Iron
  • Chipbreaker: B
  • Corner Radius: 0.0157in
  • Hand Direction: Right Hand
  • Hole Diameter: 0.15in
  • Included Angle: 60°
  • Inscribed Circle: 3/8in
  • Insert Size: #331
  • Insert Style: TNGG
  • ISO Code: TNGG160404RB
  • Material: Cermet
  • Material Grade: K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 16
  • Shape: Triangular
  • Surface Treatment: PVD-TiC/TiN-MEGACOAT
  • Thickness: 0.1874in
  • Type: 6-Cutting Edge
  • ANSI Code: TNGG331RBPV7005
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV7005
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Chamfering, Copying, External Turning, Facing and Up Facing Applications
  • Heat-resistant MEGACOAT coating on cermet with excellent wear resistance
  • High speed finishing of gray and nodular cast iron
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
