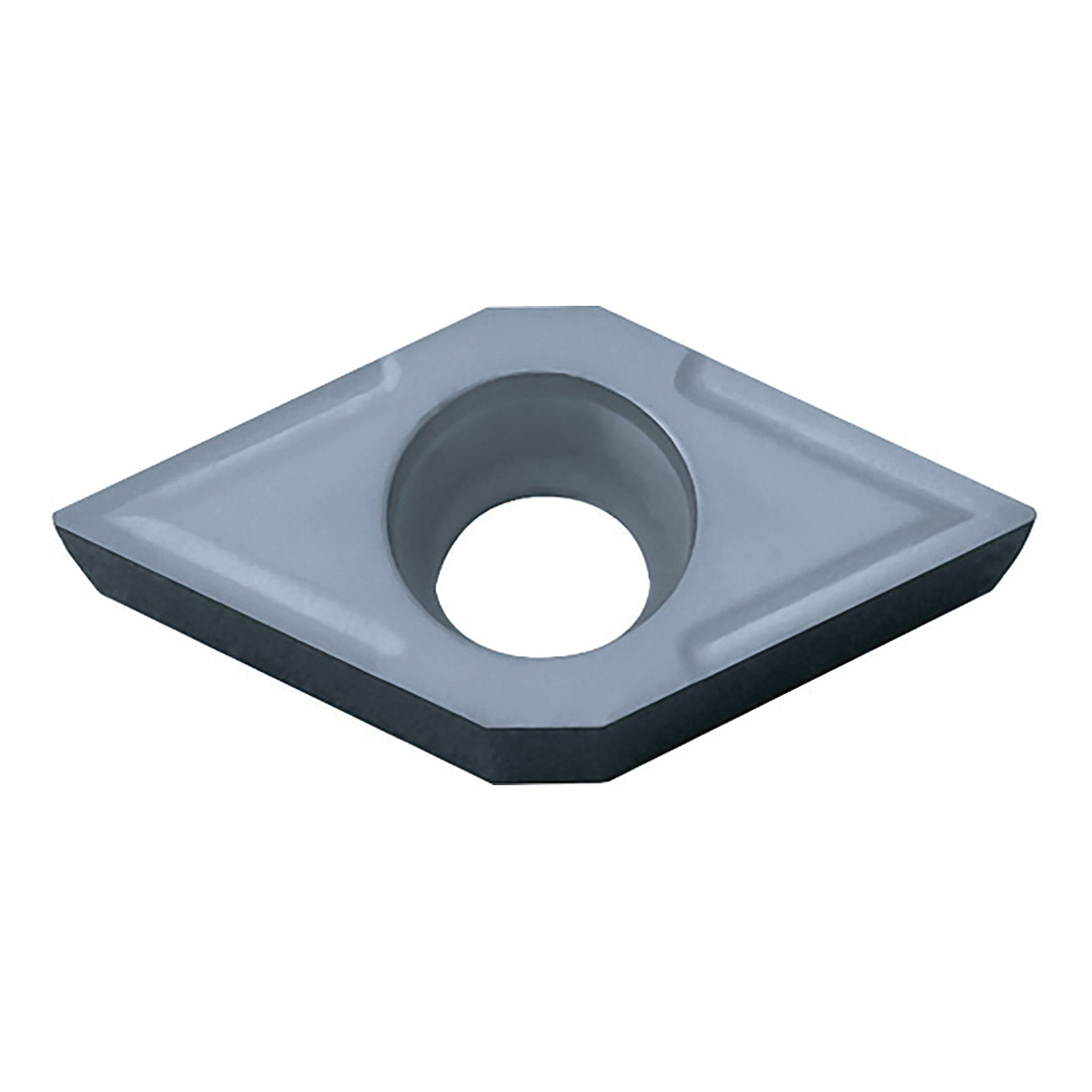

DCMT3252PV7005 TURNING INSERT

DCMT3252PV7005 TURNING INSERT

KYOCTJA03213 TJA03213
15.03 / EA
http://schema.org/OutOfStock
DCMT3252PV7005 TURNING INSERT
  • Applicable Materials: Cast Iron
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.173in
  • Included Angle: 55°
  • Inscribed Circle: 3/8in
  • Insert Size: 3252
  • Insert Style: DCMT
  • ISO Code: DCMT11T308PV7005
  • Material: Cermet
  • Material Grade: K
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 11
  • Shape: Rhombic
  • Surface Treatment: TiC/TiN/MEGACOAT
  • Thickness: 5/32in
  • Type: 1-Sided
  • ANSI Code: DCMT3252 PV7005
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV7005
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
General Turning Applications
  • PV7005 grade heat resistant MEGACOAT on cermet with excellent wear resistance
  • High speed finishing of gray and nodular cast iron
