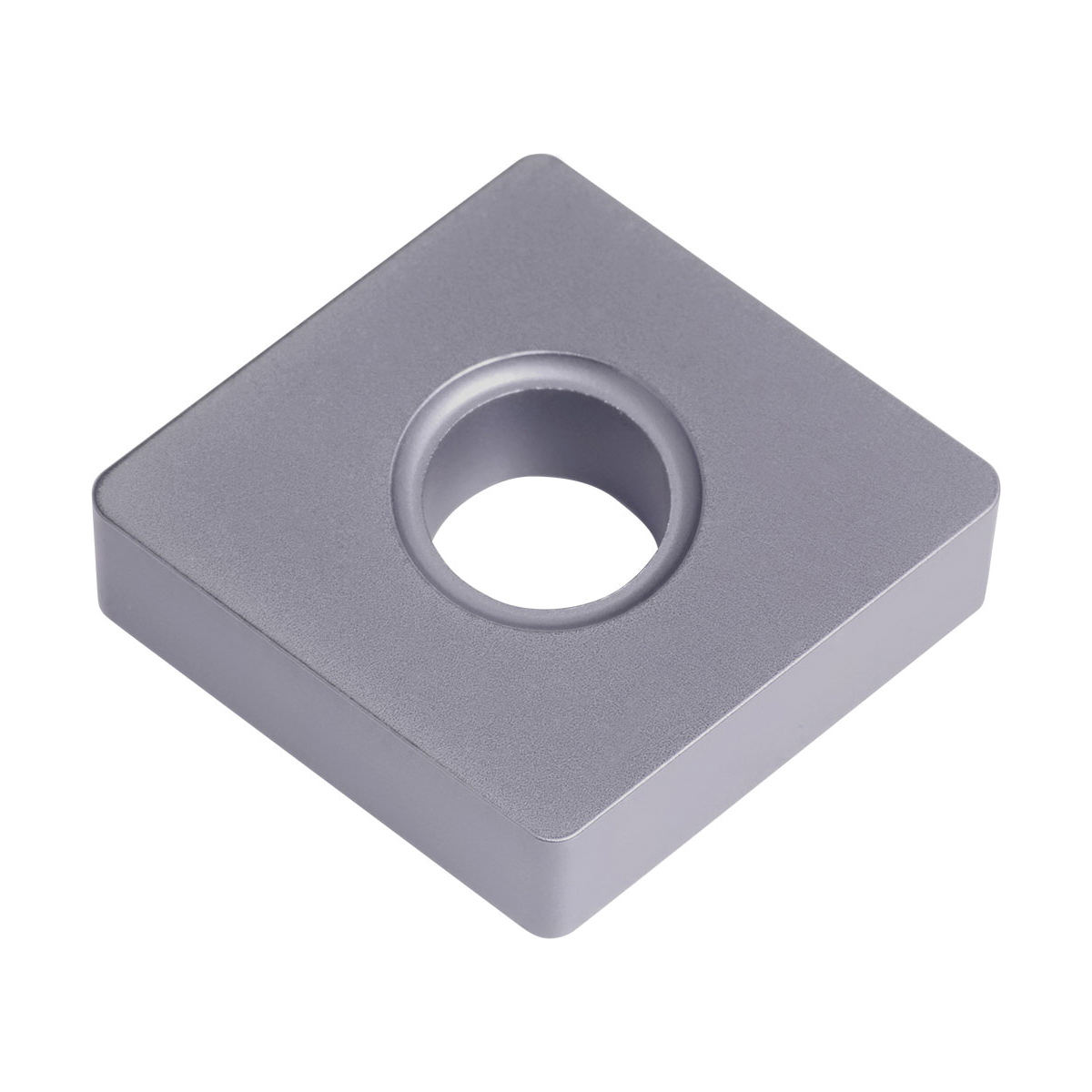

CNMA432PV7005 TURNING INSERT

CNMA432PV7005 TURNING INSERT

KYOCTJA01696 TJA01696
10.10 / EA
http://schema.org/OutOfStock
CNMA432PV7005 TURNING INSERT
  • Applicable Materials: Gray Cast Iron
  • Corner Radius: 1/32in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #432
  • Insert Style: CNMA
  • ISO Code: CNMA120408PV7005
  • Material: Cermet
  • Material Grade: K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: PVD-TiC/TiN/PVD-MEGACOAT
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNMA432PV7005
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV7005
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Heat-resistant MEGACOAT coating on cermet with excellent wear resistance
  • High speed finishing of gray and nodular cast iron
  • Without chipbreaker with 4 cutting edges
ECCN: EAR99
