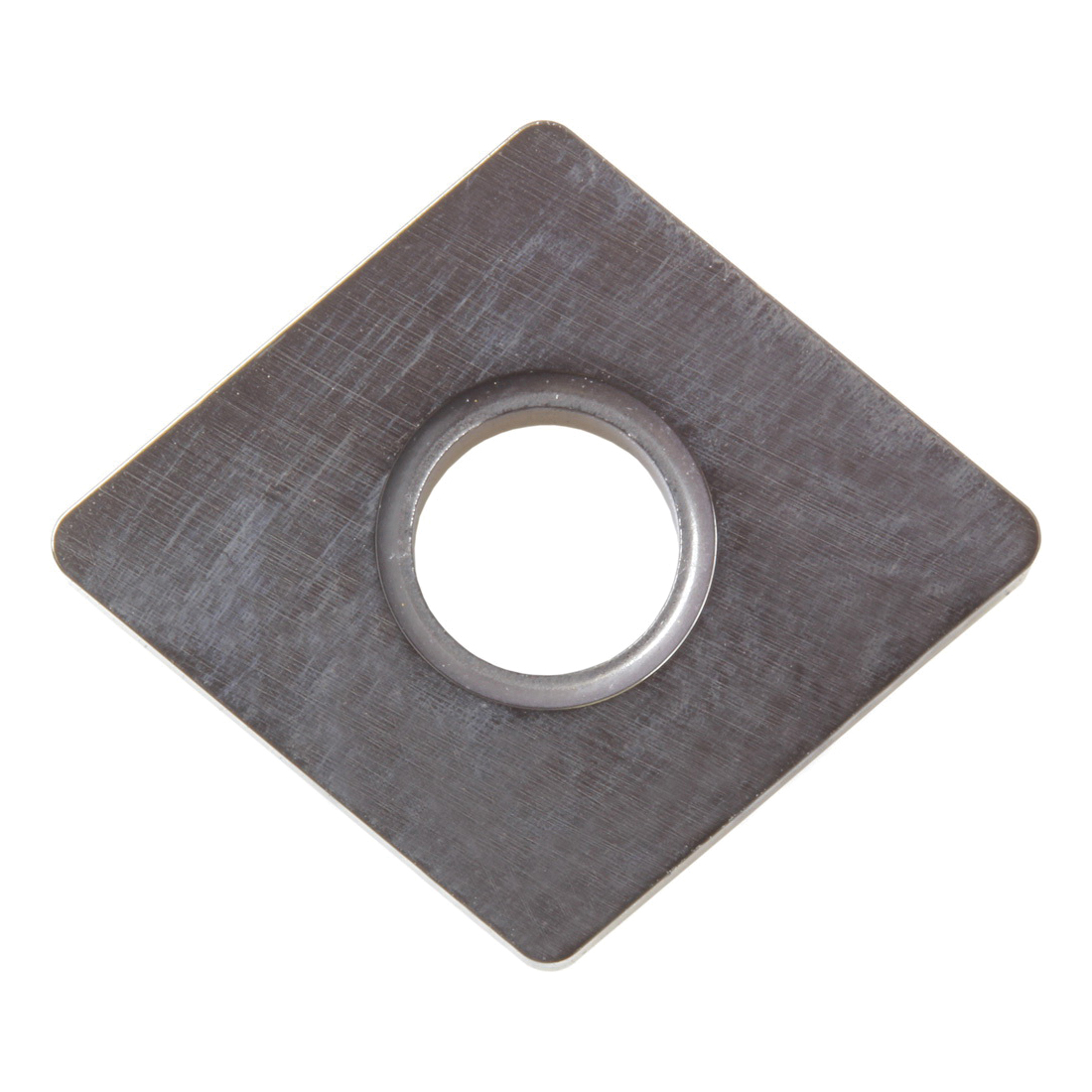

CNMA431PV7005 TURNING INSERT

CNMA431PV7005 TURNING INSERT

KYOCTJA01695 TJA01695
10.10 / EA
http://schema.org/OutOfStock
CNMA431PV7005 TURNING INSERT
  • Applicable Materials: Cast Iron
  • Corner Radius: 0.016in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 431
  • Insert Style: CNMA
  • ISO Code: CNMA120404 PV7005
  • Material: Cermet
  • Material Grade: K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: TiC/TiN/MEGACOAT
  • Thickness: 3/16in
  • ANSI Code: CNMA431 PV7005
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PV7005
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
General Turning Applications
  • PV7005 grade heat resistant MEGACOAT on cermet with excellent wear resistance
  • High speed finishing of gray and nodular cast iron
