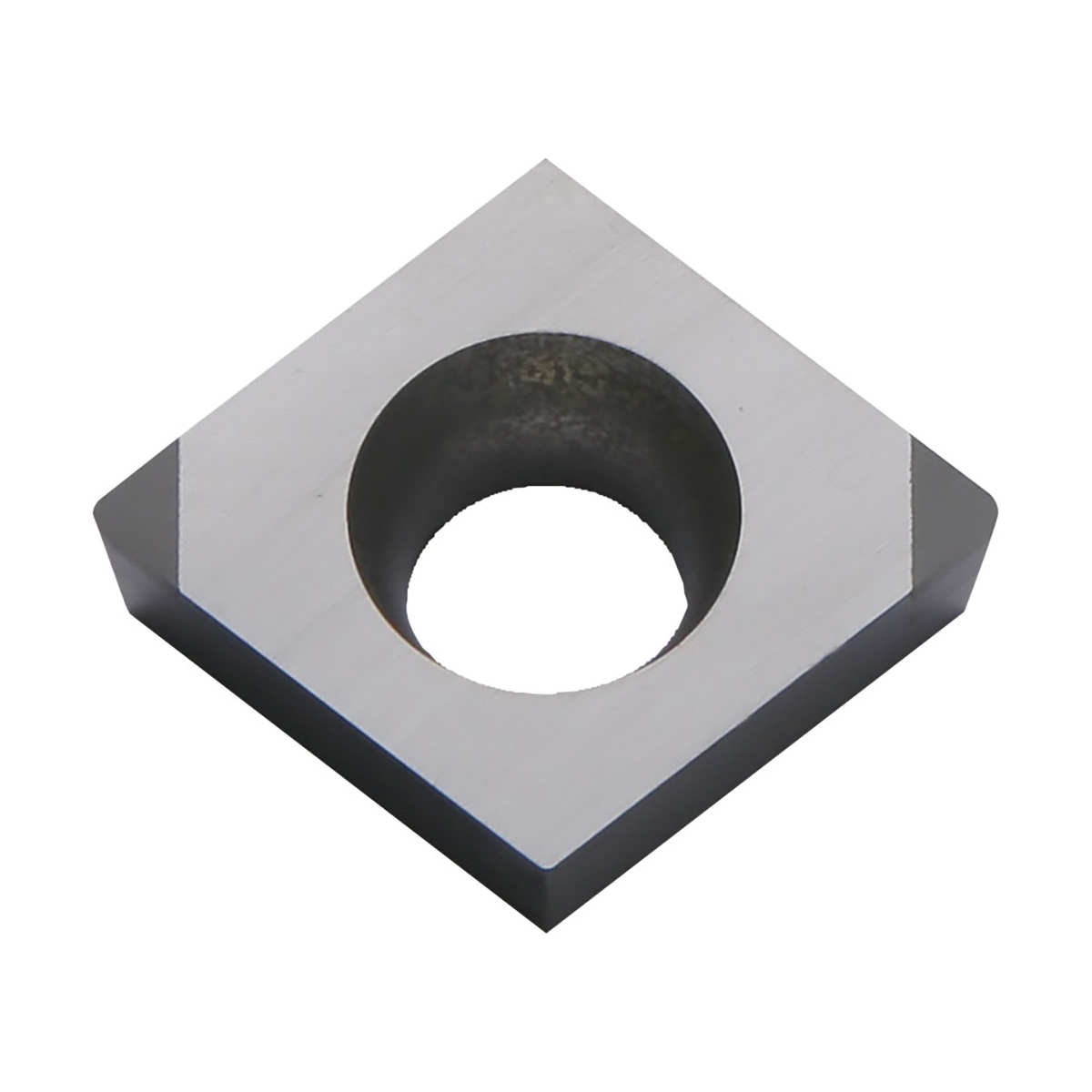

CCMW3251MEFKBN475 TURNING INSERT

CCMW3251MEFKBN475 TURNING INSERT

KYOCTFB01211 TFB01211
85.66 / EA
http://schema.org/OutOfStock
CCMW3251MEFKBN475 TURNING INSERT
  • Applicable Materials: Nodular Cast Iron
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1732in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #3251
  • Insert Style: CCMW
  • ISO Code: CCMW09T304MEF
  • Material: CBN
  • Material Grade: K
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 9
  • Shape: Rhombic
  • Thickness: 5/32in
  • Type: 2-Cutting Edge
  • ANSI Code: CCMW3251MEFKBN475
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN475
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Excellent wear resistance due to high cbn content and special binder
  • High speed machining of gray cast iron
  • Without chipbreaker
  • Multi-edge/sharp edge with 2 cutting edges
ECCN: EAR99
