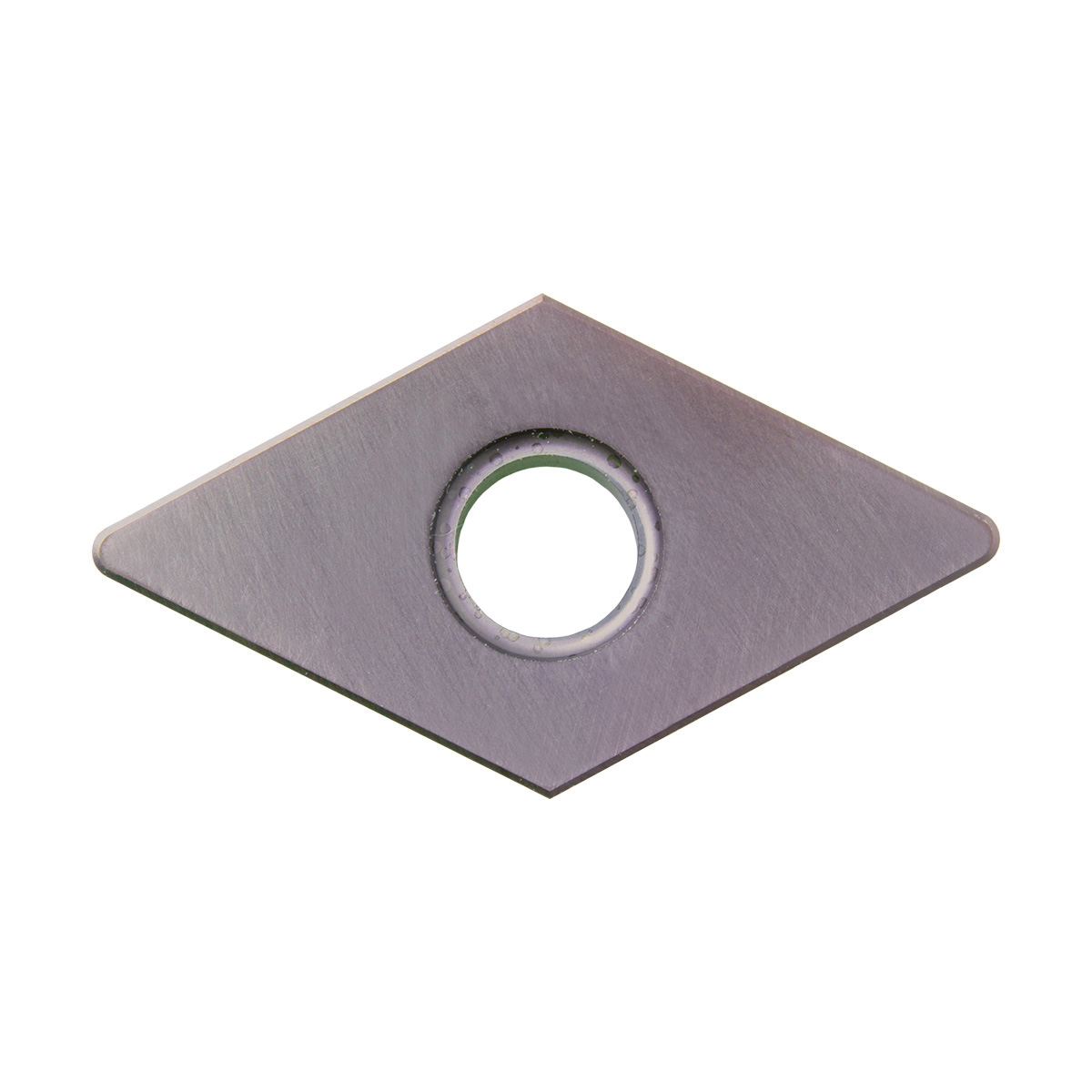

DNGA441T00825PT600M TURNING INSERT

DNGA441T00825PT600M TURNING INSERT

KYOCTCV02102 TCV02102
37.34 / EA
http://schema.org/OutOfStock
DNGA441T00825PT600M TURNING INSERT
  • Applicable Materials: Hardened Material and Gray Cast Iron
  • Corner Radius: 0.0157in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #441
  • Insert Style: DNGA
  • ISO Code: DNGA150604T02025
  • Material: Ceramic
  • Material Grade: H, K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Diamond
  • Surface Treatment: PVD-Al2O3/TiC-MEGACOAT
  • Thickness: 1/4in
  • Type: 4-Cutting Edge
  • ANSI Code: DNGA441T00825PT600M
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PT600M
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, Copying and External Turning Applications
  • Heat-resistant MEGACOAT coating on aluminum oxide and titanium carbide ceramic
  • Semi-roughing to finishing of cast iron, hard materials and hardened roll materials
  • Without chipbreaker
