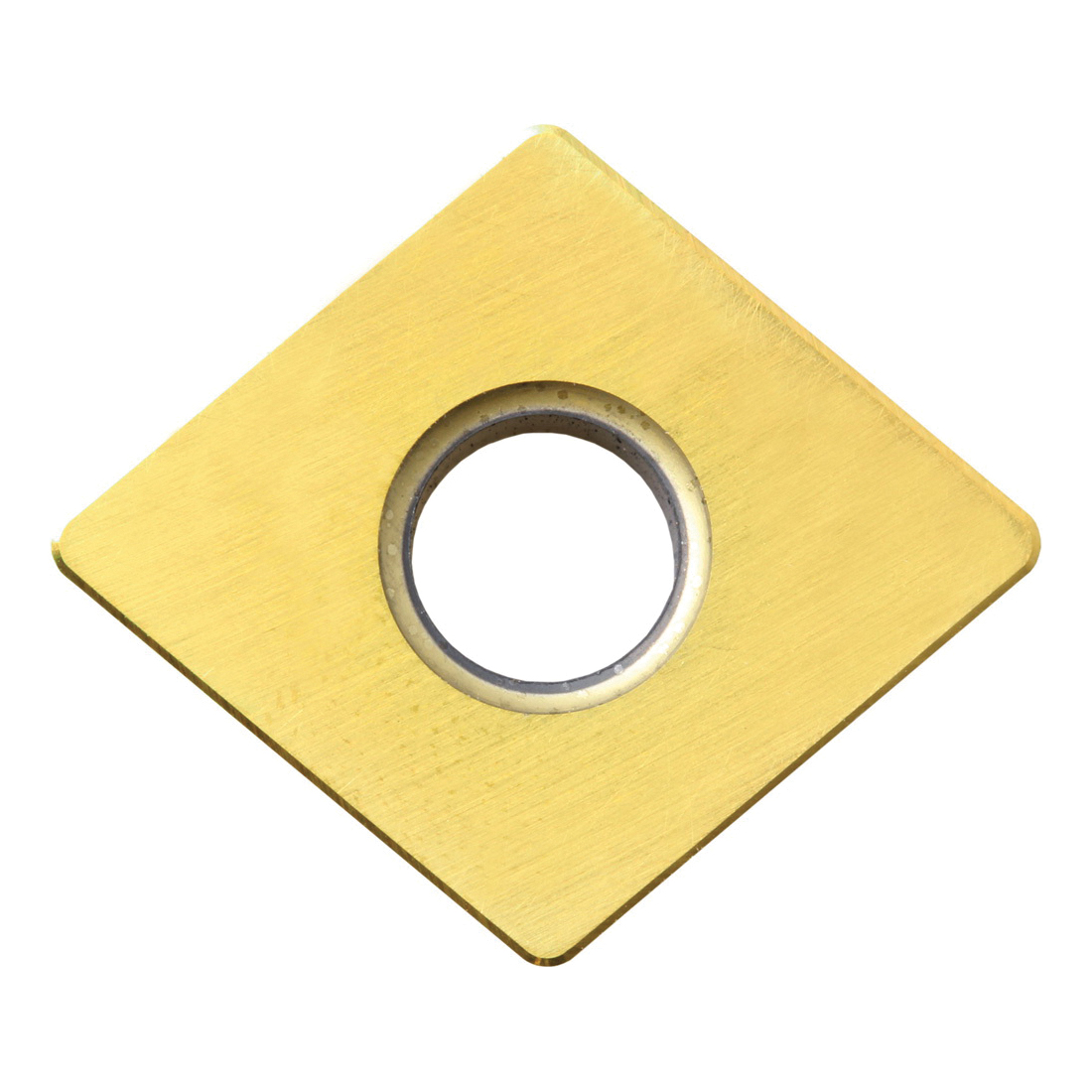

CNGA432S00825PT600M TURNING INSERT
CNGA432S00825PT600M TURNING INSERT
KYOCTCV01006
TCV01006
21.11
/ EA
http://schema.org/OutOfStock
/Product/KYOCTCV01006
- Applicable Materials: Hardened Materials
- Corner Radius: 1/32in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 432
- Insert Style: CNGA
- ISO Code: CNGA120408S02025 PT600M
- Material: Ceramic
- Material Grade: H
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: Al2O3/TiC/MEGACOAT
- Thickness: 3/16in
- ANSI Code: CNGA432S00825 PT600M
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PT600M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
General Turning Applications
- Superior economic efficiency in the machining of hardened materials
- Good wear resistance for high speed machining of gray cast iron
- Chamfered and honed cutting edge
- PT600M grade semi-roughing to finishing of cast iron, hard materials and hardened roll materials
