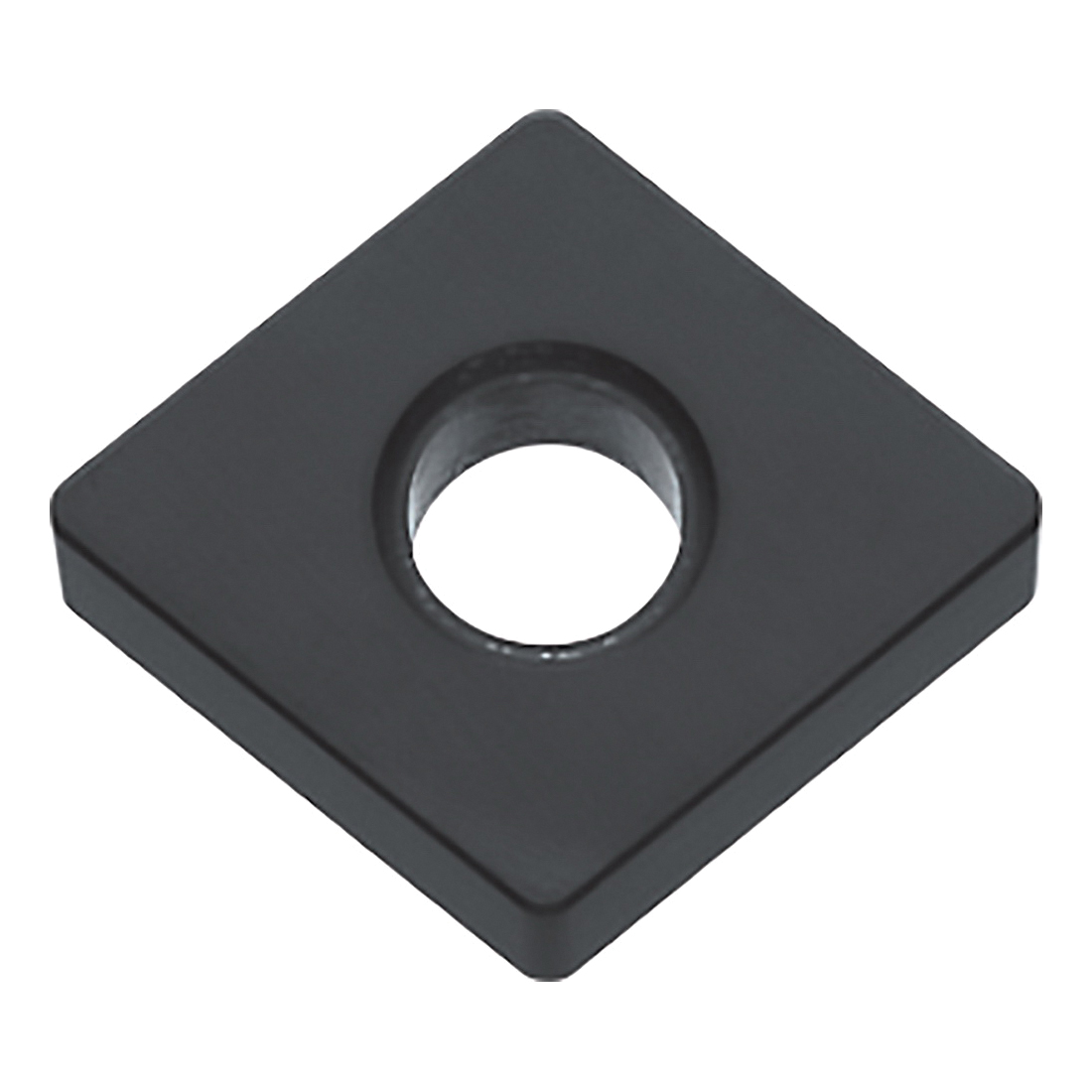

CNGA431T00825A65 TURNING INSERT

CNGA431T00825A65 TURNING INSERT

KYOCTCR60811 TCR60811
19.22 / EA
http://schema.org/OutOfStock
CNGA431T00825A65 TURNING INSERT
  • Applicable Materials: Hardened Materials
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 431
  • Insert Style: CNGA
  • ISO Code: CNGA120404 A65
  • Material: Ceramic
  • Material Grade: H
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: UNCOATED
  • Thickness: 3/16in
  • ANSI Code: CNGA431T00825 A65
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: A65
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
General Turning Applications
  • Chamfered cutting edge
  • A65 grade for aluminum oxide and titanium carbide ceramic
  • For semi-roughing to finishing of steel, cast iron and hard materials
