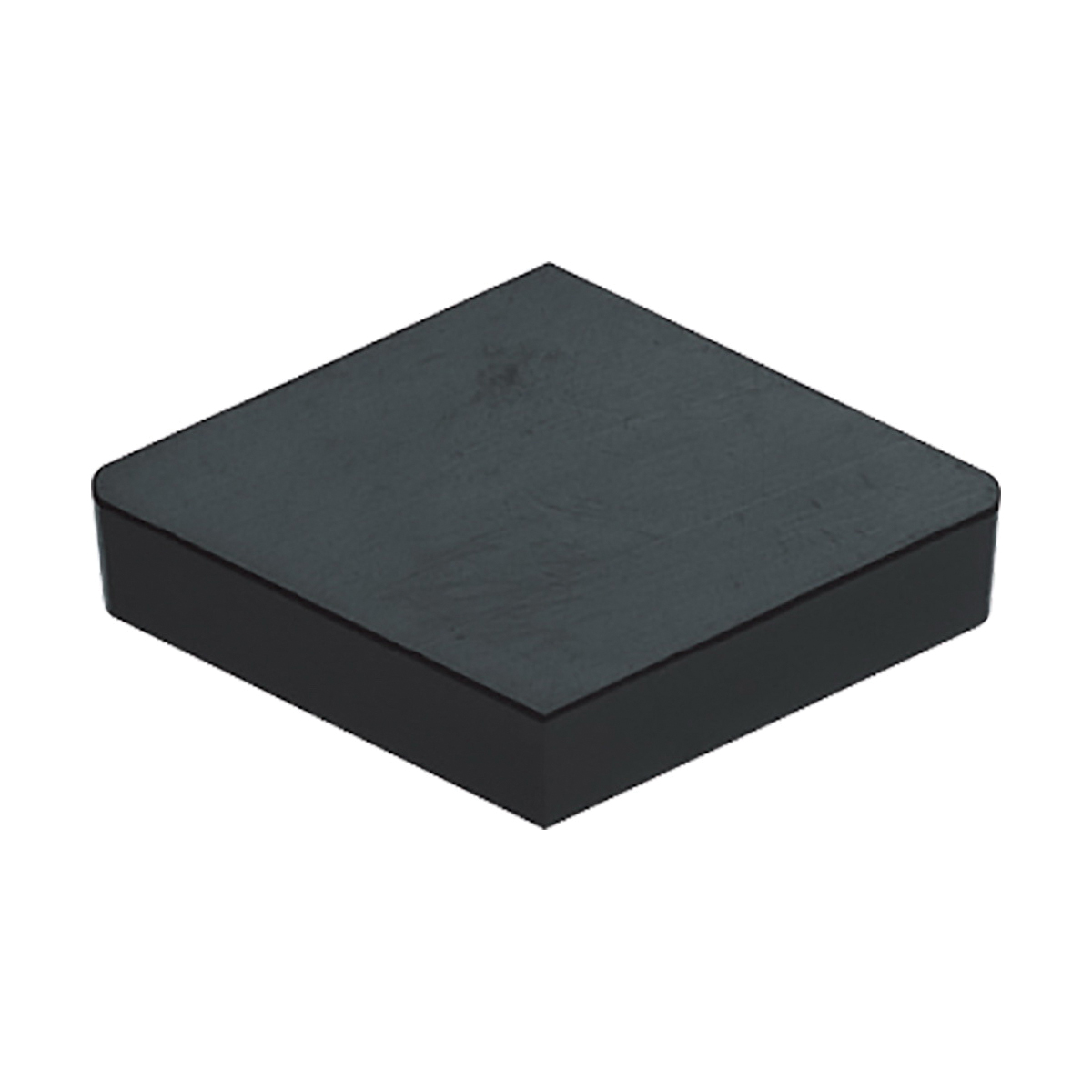

DNG451T00825A65 TURNING INSERT

DNG451T00825A65 TURNING INSERT

KYOCTCR00990 TCR00990
32.56 / EA
http://schema.org/OutOfStock
DNG451T00825A65 TURNING INSERT
  • Applicable Materials: Gray Cast Iron and Hardened Material
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #451
  • Insert Style: DNG
  • ISO Code: DNGN150704
  • Material: Ceramic
  • Material Grade: K, H
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Rhombic
  • Surface Treatment: Uncoated/Al2O3/TiC Coated
  • Thickness: 5/16in
  • Type: 4-Cutting Edge
  • ANSI Code: DNG451T00825A65
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: A65
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Back Turning Applications
  • Semi-roughing to finishing of steel, cast iron and hard materials
  • Aluminum oxide and titanium carbide ceramic
ECCN: EAR99
