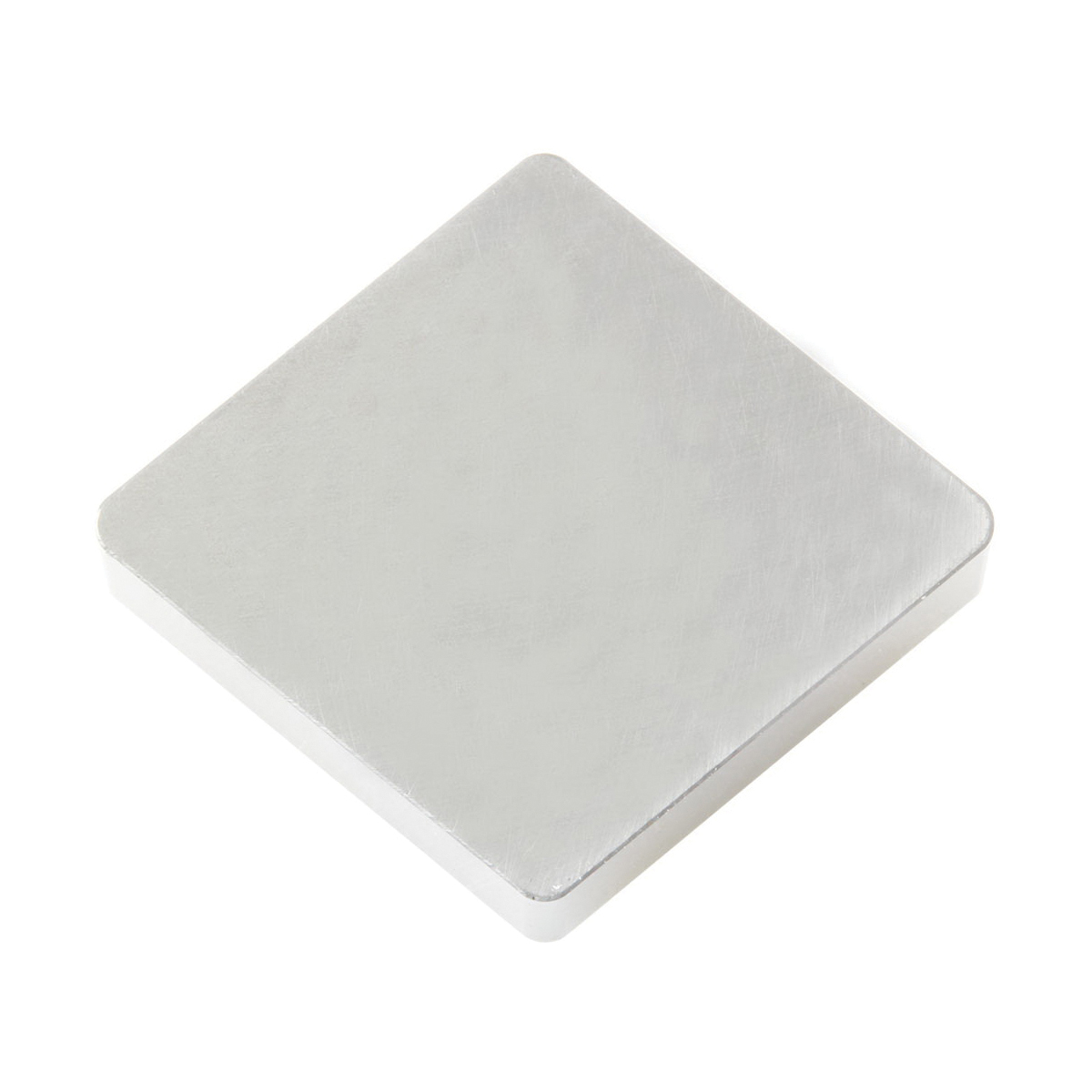

CNG433T00425AAKA30 TURNING INSERT

CNG433T00425AAKA30 TURNING INSERT

KYOCTCN00061 TCN00061
10.18 / EA
http://schema.org/OutOfStock
CNG433T00425AAKA30 TURNING INSERT
  • Applicable Materials: Gray Cast Iron
  • Corner Radius: 3/64in
  • Hand Direction: Neutral
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #433
  • Insert Style: CNG
  • ISO Code: CNGN120412
  • Material: Ceramic
  • Material Grade: K
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Rhombic
  • Surface Treatment: Al2O3 Coated
  • Thickness: 3/16in
  • Type: 4-Cutting Edge
  • ANSI Code: CNG433T00425AAKA30
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KA30
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning and Facing Applications
  • Finishing of cast iron at high cutting speeds without coolant
  • Aluminum oxide ceramic
ECCN: EAR99
