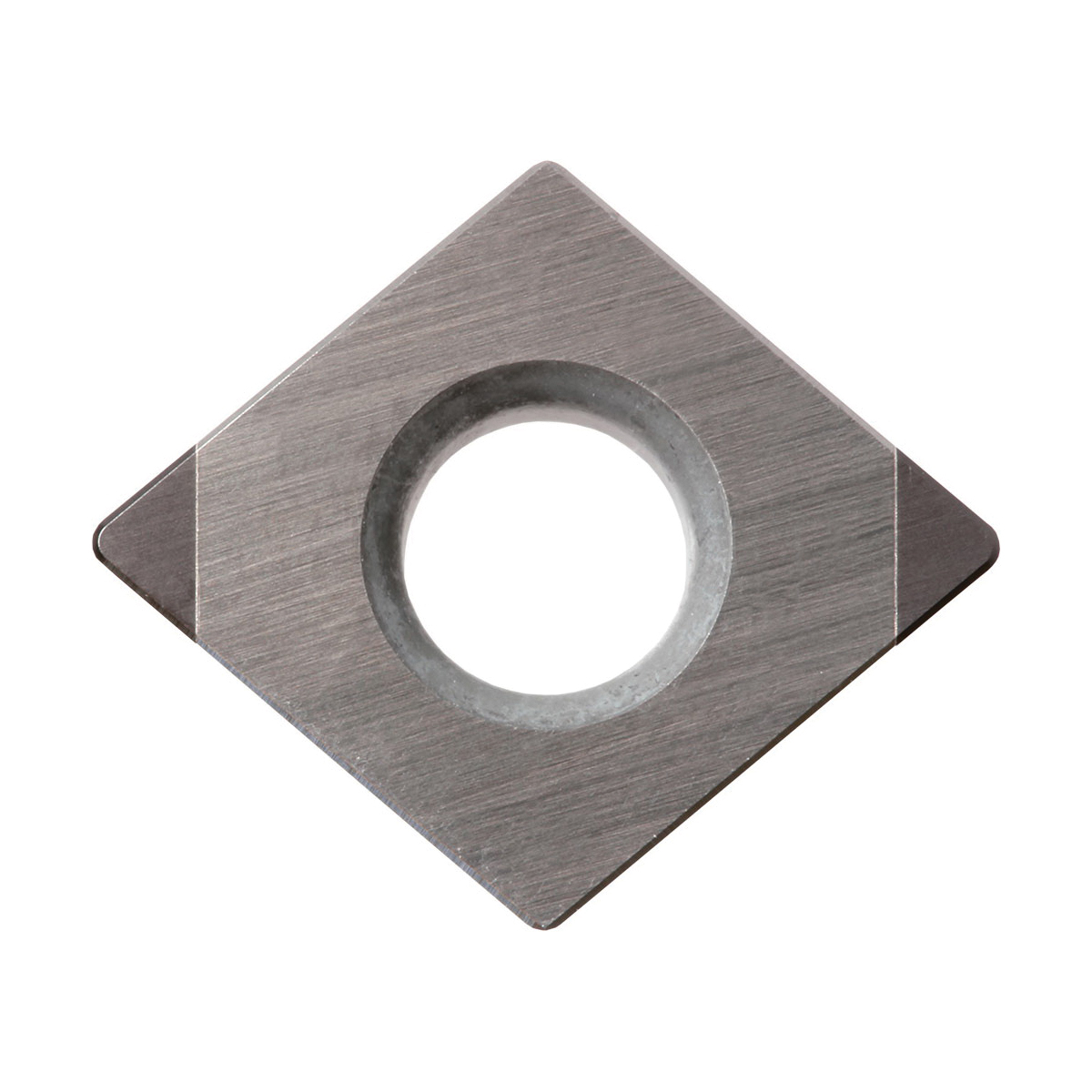

CPGB25151S00435METKBN25M TURNING INSERT
CPGB25151S00435METKBN25M TURNING INSERT
KYOCTBZ01810
TBZ01810
68.53
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBZ01810
- Applicable Materials: Hardened Material
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.1378in
- Included Angle: 80°
- Inscribed Circle: 5/16in
- Insert Size: #25151
- Insert Style: CPGB
- ISO Code: CPGB080204S01035MET
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 8
- Shape: Rhombic
- Surface Treatment: PVD-MEGACOAT
- Thickness: 3/32in
- Type: 2-Cutting Edge
- ANSI Code: CPGB25151S00435METKBN25M
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN25M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Heat-resistant MEGACOAT on micro-grain CBN with heat-resistant binder phase
- Stable cutting of hardened steel at high speed
- Without chipbreaker
- Multi-edge/tough with 2 cutting edges
ECCN: EAR99
