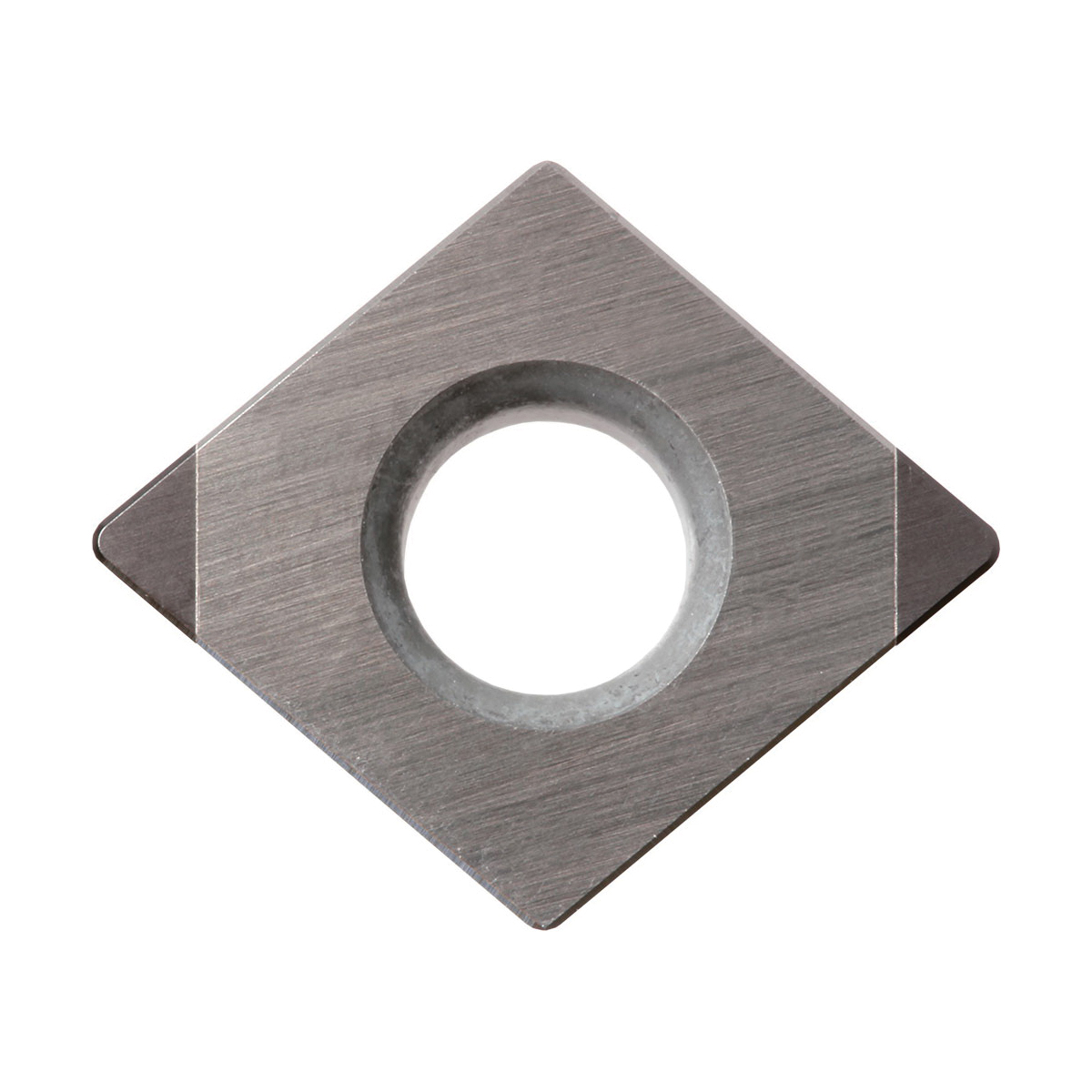

CPGB321T00315MEKBN25M TURNING INSERT

CPGB321T00315MEKBN25M TURNING INSERT

KYOCTBZ01806 TBZ01806
68.53 / EA
http://schema.org/OutOfStock
CPGB321T00315MEKBN25M TURNING INSERT
  • Applicable Materials: Hardened Material
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1772in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #321
  • Insert Style: CPGB
  • ISO Code: CPGB090304T00815ME
  • Material: CBN
  • Material Grade: H
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 9
  • Shape: Rhombic
  • Surface Treatment: PVD-MEGACOAT
  • Thickness: 1/8in
  • Type: 2-Cutting Edge
  • ANSI Code: CPGB321T00315MEKBN25M
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN25M
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Heat-resistant MEGACOAT on micro-grain CBN with heat-resistant binder phase
  • Stable cutting of hardened steel at high speed
  • Without chipbreaker
  • Multi-edge with 2 cutting edges
ECCN: EAR99
