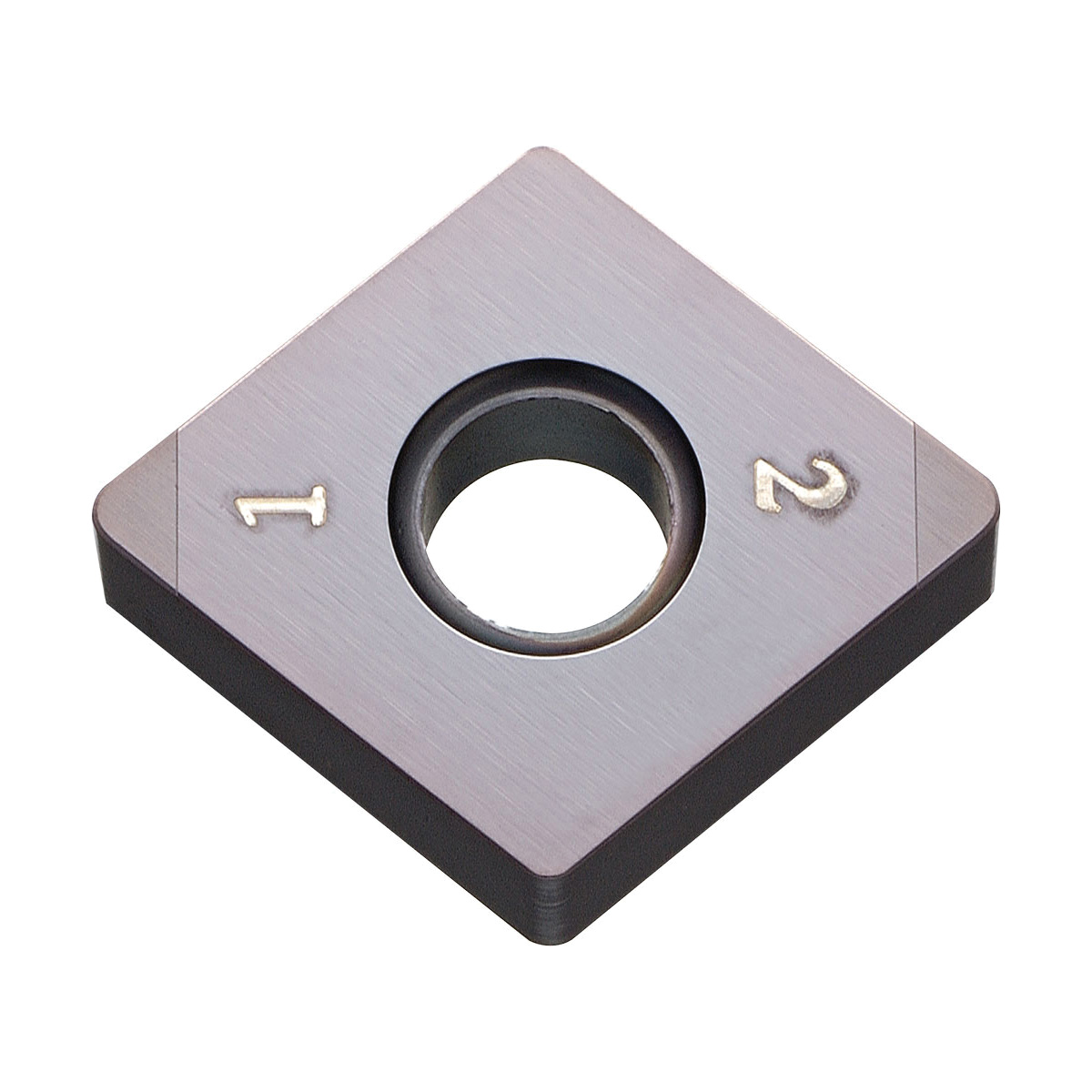

CNGA4305S00525MEKBN25M TURNING INSERT

CNGA4305S00525MEKBN25M TURNING INSERT

KYOCTBZ01455 TBZ01455
67.09 / EA
http://schema.org/OutOfStock
CNGA4305S00525MEKBN25M TURNING INSERT
  • Applicable Materials: Hardened Material
  • Corner Radius: 0.0079in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: #4305
  • Insert Style: CNGA
  • ISO Code: CNGA120402S01225ME
  • Material: CBN
  • Material Grade: H
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: PVD-MEGACOAT
  • Thickness: 0.1874in
  • Type: 2-Cutting Edge
  • ANSI Code: CNGA4305S00525MEKBN25M
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN25M
  • Manufacturer Name: KYOCERA Precision Tools
  • Series: ISOI
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring, External Turning, Facing and Internal Facing Applications
  • Multi-edge with 2-cutting edges
  • Heat-resistant MEGACOAT on micro-grain CBN with heat-resistant binder phase
  • Stable cutting of hardened steel at high speed
  • Without chipbreaker
