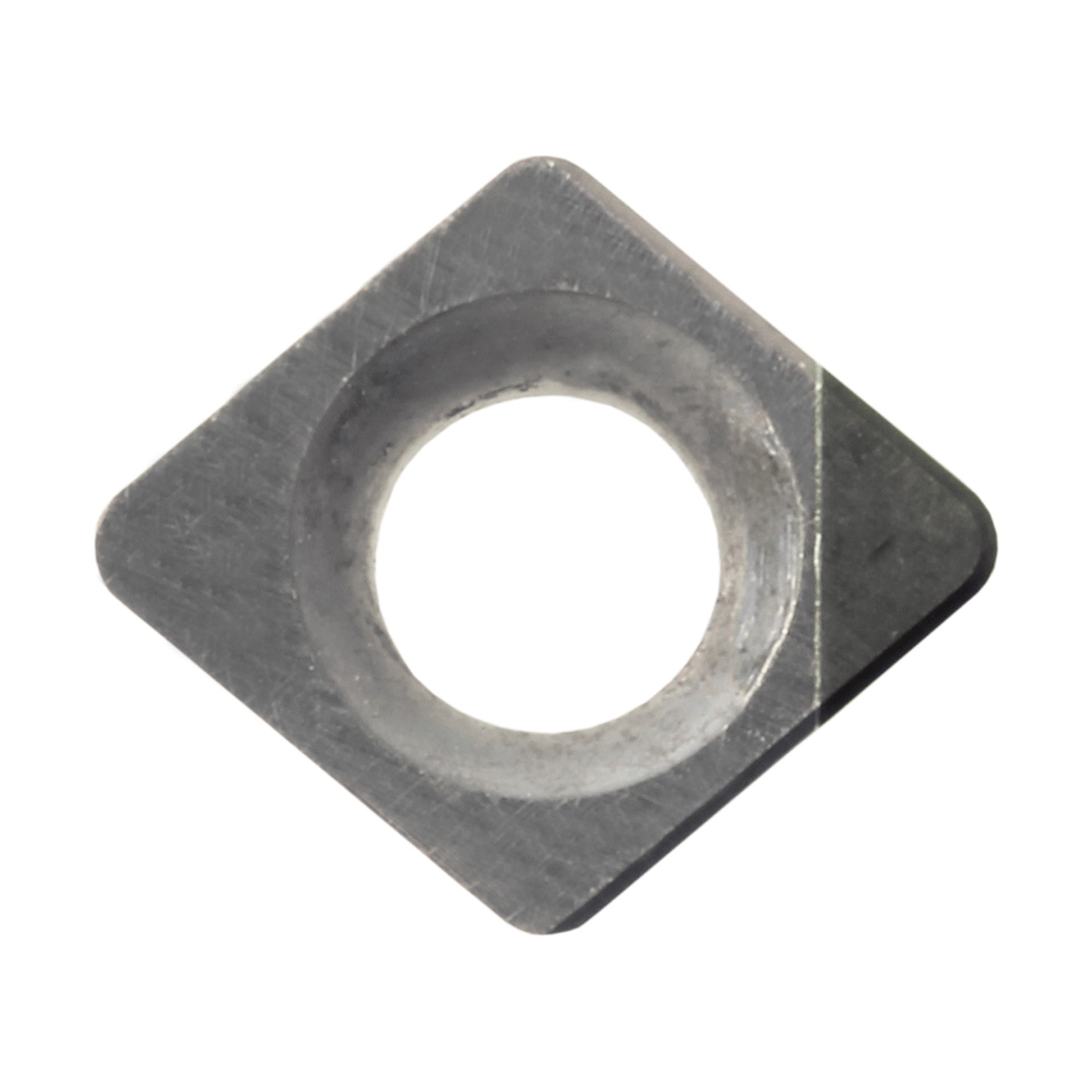

CCMW110905S00435SETKBN25M TURNING INSERT
CCMW110905S00435SETKBN25M TURNING INSERT
KYOCTBZ01300
TBZ01300
45.53
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBZ01300
- Applicable Materials: Hardened Material
- Corner Radius: 0.0079in
- Hand Direction: Neutral
- Hole Diameter: 0.0748in
- Included Angle: 80°
- Inscribed Circle: 0.1378in
- Insert Size: #110905
- Insert Style: CCMW
- ISO Code: CCMW030102S01035SET
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 3
- Shape: Rhombic
- Surface Treatment: PVD-MEGACOAT
- Thickness: 0.0551in
- Type: 1-Cutting Edge
- ANSI Code: CCMW110905S00435SETKBN25M
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN25M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
External Turning, Facing, Boring and Internal Facing Applications
- Heat-resistant MEGACOAT on micro-grain CBN with heat-resistant binder phase
- Stable cutting of hardened steel at high speed
- Without chipbreaker
- Small edge/tough with 1 cutting edges
ECCN: EAR99
