KYOCERA PRECISION TOOLS

CCMW 141105T00315SE KBN25M INSERT

CCMW 141105T00315SE KBN25M INSERT

KYOCTBZ01285 TBZ01285
45.53 / EA
http://schema.org/OutOfStock

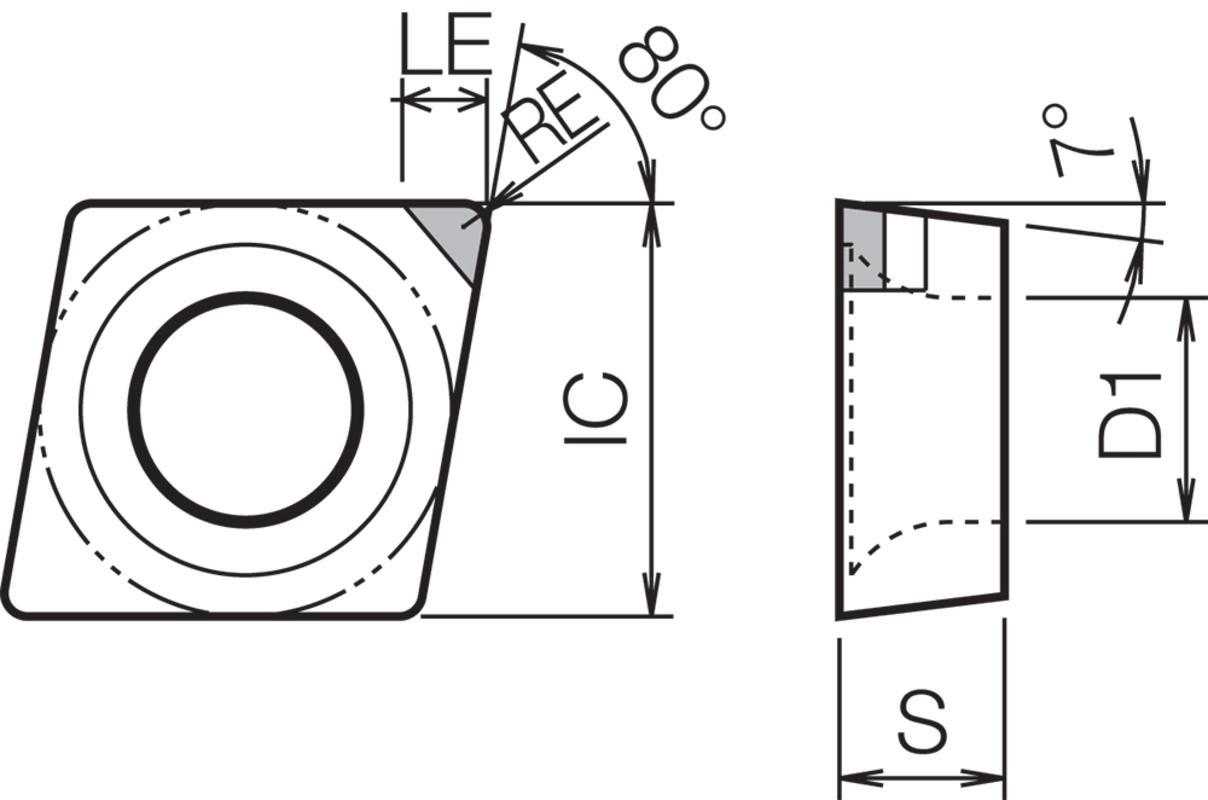

CCMW 141105T00315SE KBN25M INSERT
  • Applicable Materials: Hardened Material
  • Corner Radius: 0.0079 in
  • Hand Direction: Neutral
  • Hole Diameter: 0.0906 in
  • Included Angle: 80 deg
  • Inscribed Circle: 0.1693 in
  • Insert Size: #141105
  • Insert Style: CCMW
  • ISO Code: CCMW040102T00815SE
  • Material: CBN
  • Material Grade: H
  • Rake: Positive
  • Relief Angle: 7 deg
  • Seat Size: 4
  • Shape: Rhombic
  • Surface Treatment: PVD-MEGACOAT
  • Thickness: 0.0709 in
  • Type: 1-Cutting Edge
  • ANSI Code: CCMW141105T00315SEKBN25M
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN25M
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Heat-resistant MEGACOAT on micro-grain CBN with heat-resistant binder phase
  • Stable cutting of hardened steel at high speed
  • Without chipbreaker
  • Small edge with 1 cutting edges
ECCN: EAR99
