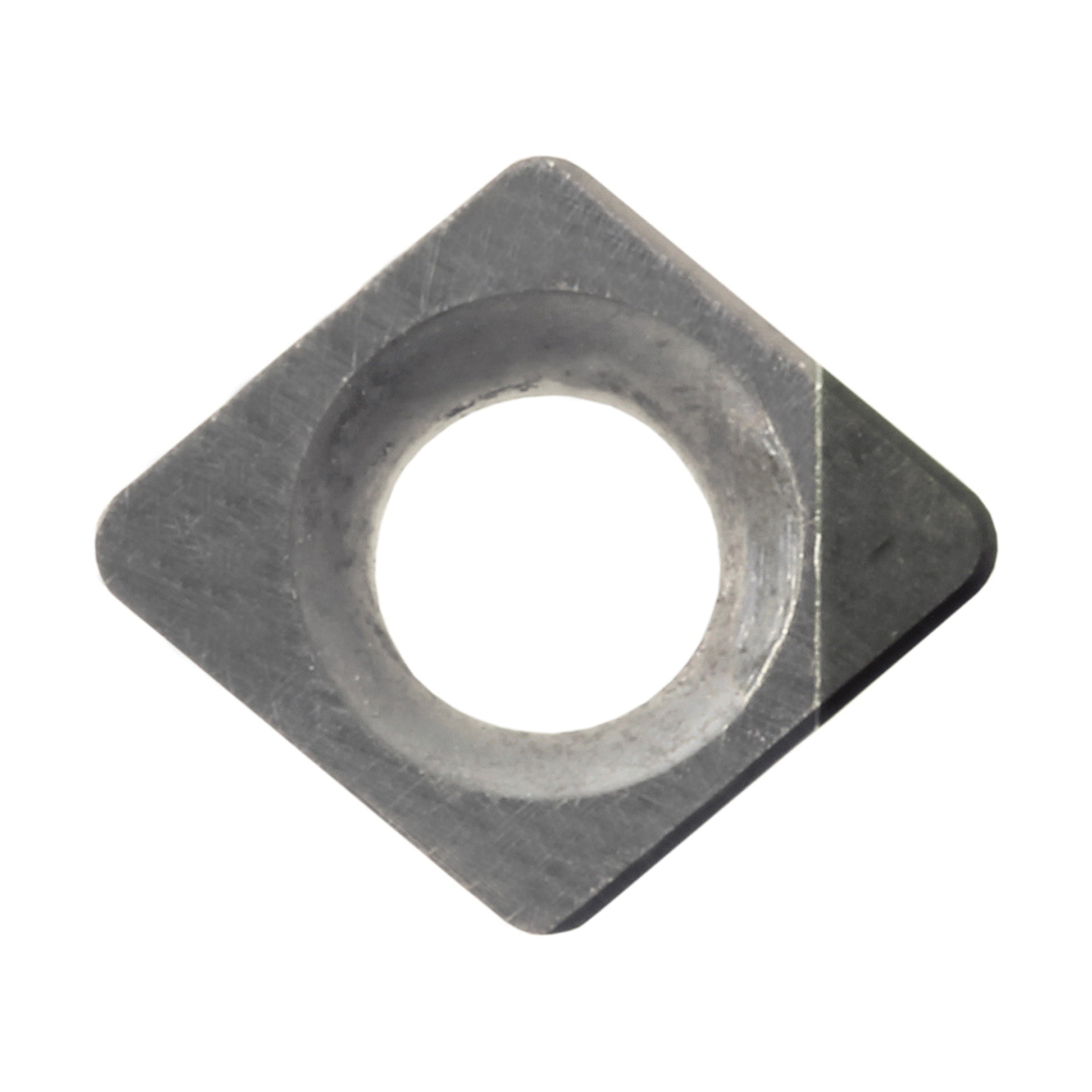

CCMW110905T00315SEKBN10M TURNING INSERT

CCMW110905T00315SEKBN10M TURNING INSERT

KYOCTBX01280 TBX01280
45.53 / EA
http://schema.org/OutOfStock
CCMW110905T00315SEKBN10M TURNING INSERT
  • Applicable Materials: Hardened Material
  • Corner Radius: 0.0079in
  • Hand Direction: Neutral
  • Hole Diameter: 0.0748in
  • Included Angle: 80°
  • Inscribed Circle: 0.1378in
  • Insert Size: #110905
  • Insert Style: CCMW
  • ISO Code: CCMW030102T00815SE
  • Material: CBN
  • Material Grade: H
  • Rake: Positive
  • Relief Angle: 7°
  • Seat Size: 03, 3
  • Shape: Rhombic
  • Surface Treatment: PVD-MEGACOAT
  • Thickness: 0.0551in
  • Type: 1-Cutting Edge
  • ANSI Code: CCMW110905T00315SEKBN10M
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN10M
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Facing, Boring and Internal Facing Applications
  • Heat-resistant MEGACOAT on CBN with hard binder phase, superior anti-crater wear resistance
  • High speed finishing of hardened die steel
  • Without chipbreaker
  • Small edge with 1 cutting edges
ECCN: EAR99
