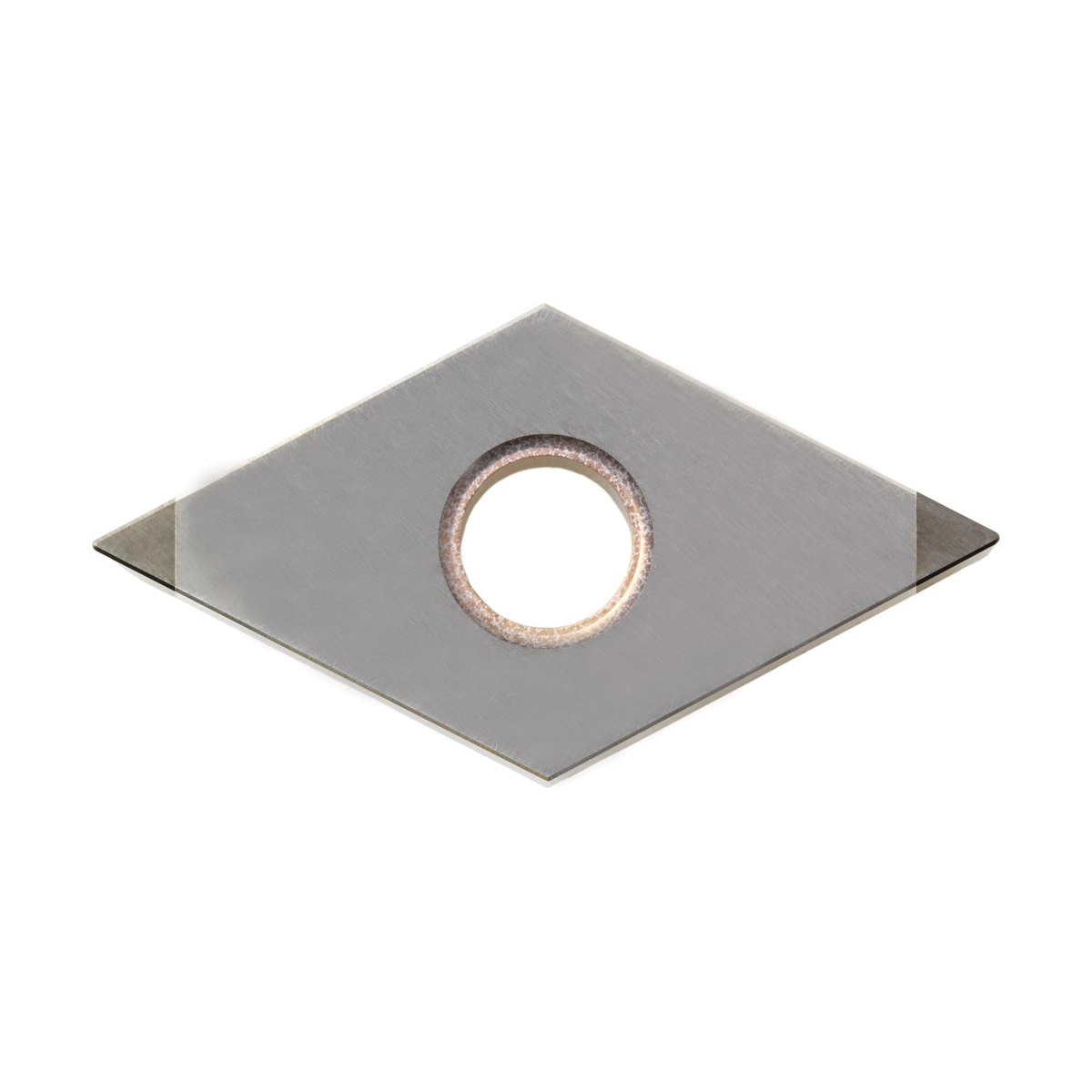

DNGA4305MEKBN525 TURNING INSERT

DNGA4305MEKBN525 TURNING INSERT

KYOCTBW02211 TBW02211
73.80 / EA
http://schema.org/OutOfStock
DNGA4305MEKBN525 TURNING INSERT
  • Applicable Materials: Hardened Material
  • Corner Radius: 0.0079in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #4305
  • Insert Style: DNGA
  • ISO Code: DNGA150402ME
  • Material: CBN
  • Material Grade: H
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Rhombic
  • Surface Treatment: UNCOATED
  • Thickness: 3/16in
  • Type: 2-Cutting Edge
  • ANSI Code: DNGA4305MEKBN525
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN525
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Boring Applications
  • Good balance of toughness and wear resistance, non-coated CBN
  • General grade for hardened steel, high stability at high speed and high feed cutting
  • Without chipbreaker
  • Multi-edge with 2 cutting edges
ECCN: EAR99
