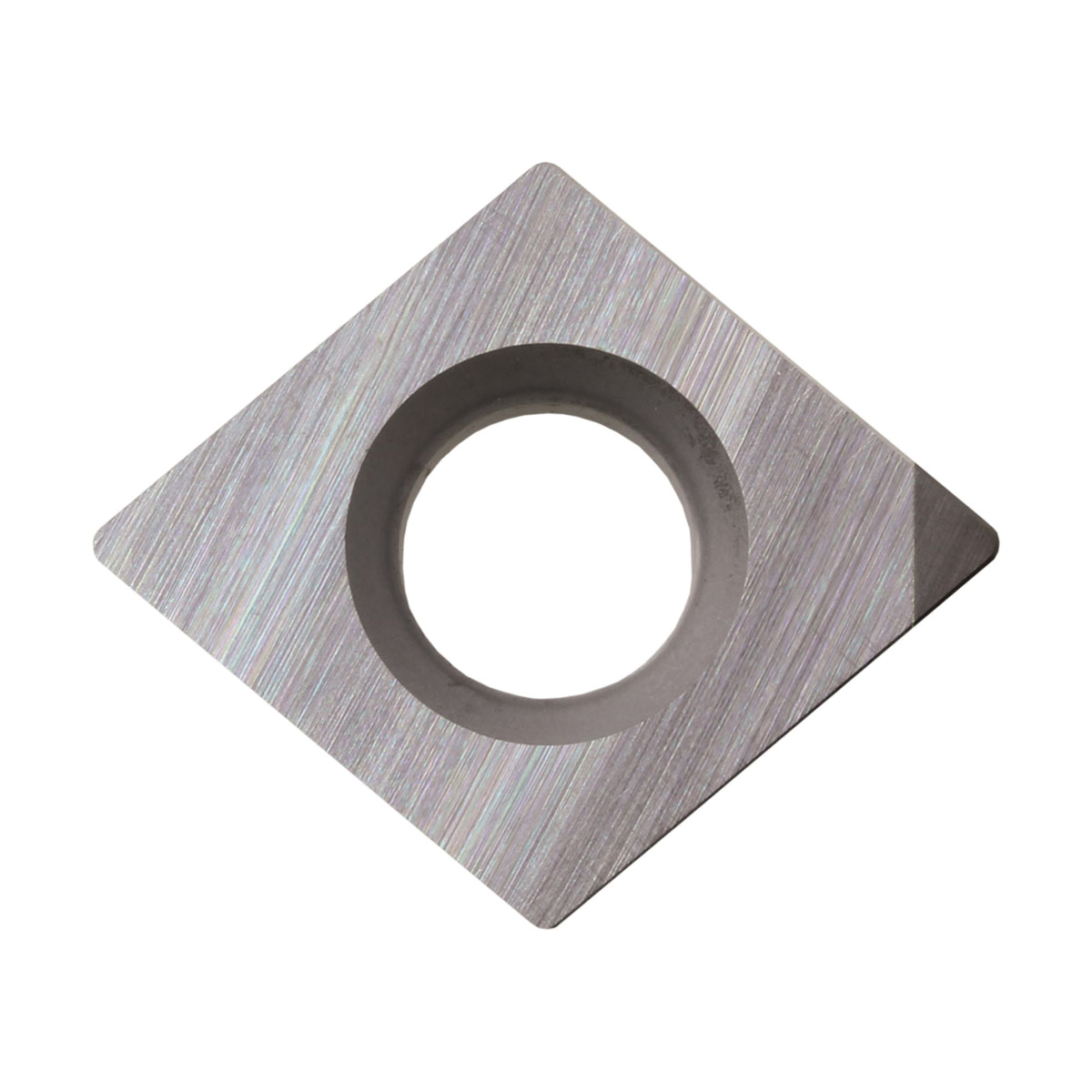

CPGB251505SEKBN525 TURNING INSERT
CPGB251505SEKBN525 TURNING INSERT
KYOCTBW01820
TBW01820
42.17
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBW01820
- Applicable Materials: Hardened Material
- Corner Radius: 0.0079in
- Hand Direction: Neutral
- Hole Diameter: 0.1378in
- Included Angle: 80°
- Inscribed Circle: 5/16in
- Insert Size: #251505
- Insert Style: CPGB
- ISO Code: CPGB080202SE
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 8
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 0.0937in
- Type: 1-Cutting Edge
- ANSI Code: CPGB251505SEKBN525
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN525
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Small edge with 1-cutting edges
- Good balance of toughness and wear resistance, non-coated CBN
- General grade for hardened steel, high stability at high speed and high feed cutting
- Without chipbreaker
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
