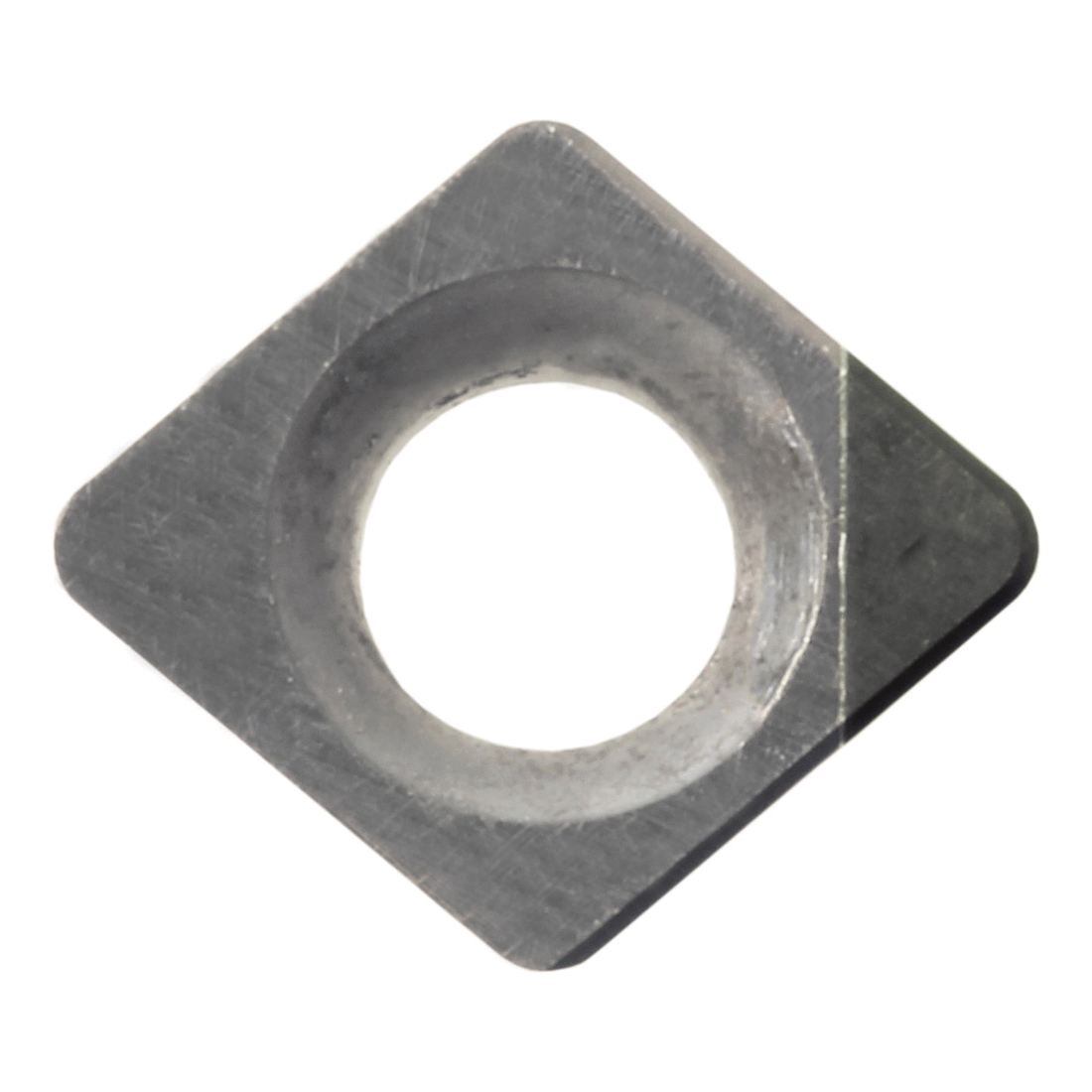

CCMW11091SETKBN525 TURNING INSERT
CCMW11091SETKBN525 TURNING INSERT
KYOCTBW01301
TBW01301
45.53
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBW01301
- Applicable Materials: Hardened Materials
- Chipbreaker: SET
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.075in
- Included Angle: 80°
- Inscribed Circle: 0.138in
- Insert Size: 11091
- Insert Style: CCMW
- ISO Code: CCMW030104SE-T KBN525
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 7°
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 0.0551in
- Type: Multi-Edge
- ANSI Code: CCMW11091SET KBN525
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN525
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
General Turning Applications
- KBN525 grade good balance of toughness and wear resistance, non-coated CBN
- General grade for hardened steel, high stability at high speed and high feed cutting
