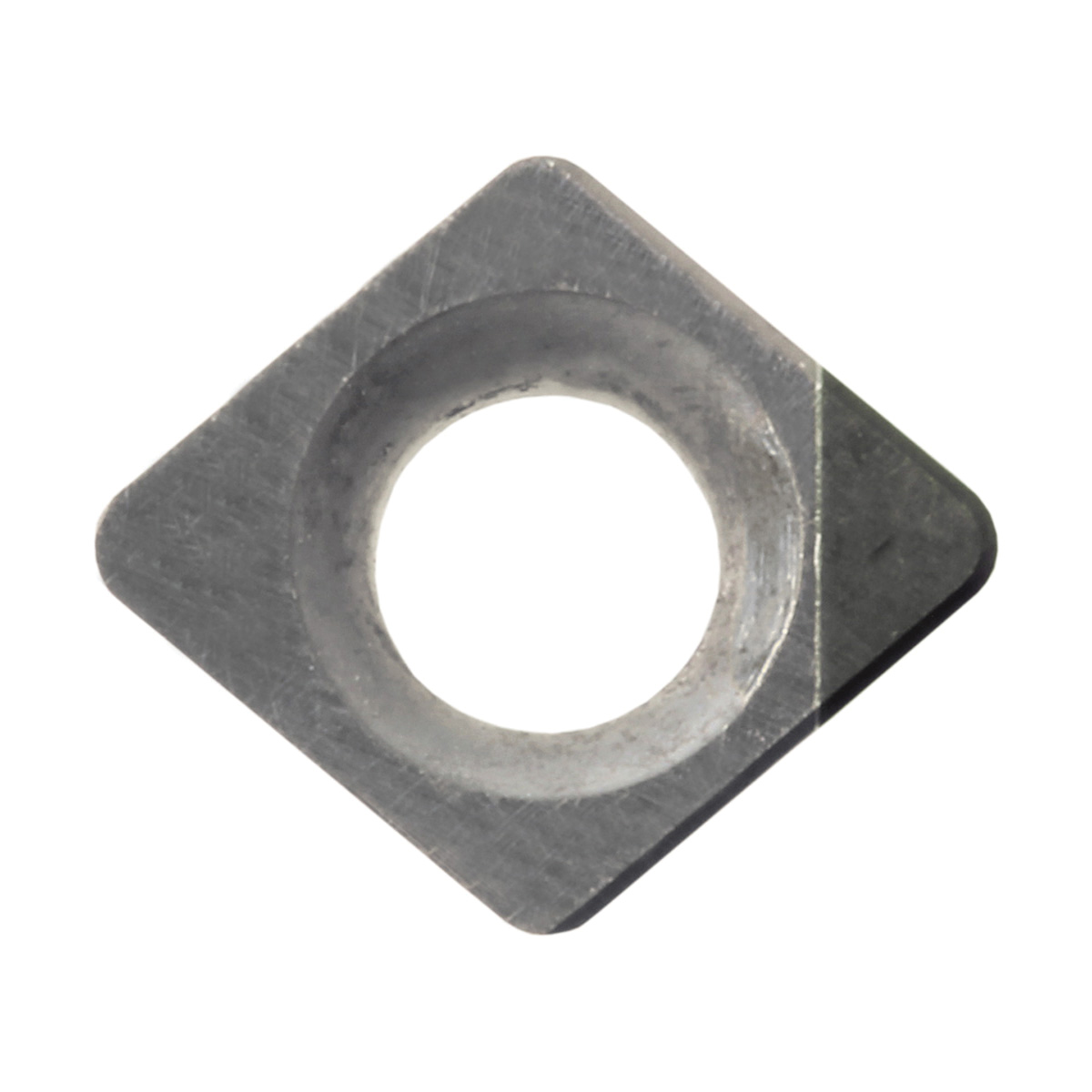

CCMW110905SEKBN525 TURNING INSERT
CCMW110905SEKBN525 TURNING INSERT
KYOCTBW01280
TBW01280
45.53
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBW01280
- Applicable Materials: Hardened Material
- Corner Radius: 0.0079in
- Hand Direction: Neutral
- Hole Diameter: 0.0748in
- Included Angle: 80°
- Inscribed Circle: 0.1378in
- Insert Size: #110905
- Insert Style: CCMW
- ISO Code: CCMW030102SE
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 3
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 0.0551in
- Type: 1-Cutting Edge
- ANSI Code: CCMW110905SEKBN525
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN525
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Boring, External Turning, Facing and Internal Facing Applications
- Small edge with 1-cutting edges
- Good balance of toughness and wear resistance, non-coated CBN
- General grade for hardened steel, high stability at high speed and high feed cutting
- Without chipbreaker
