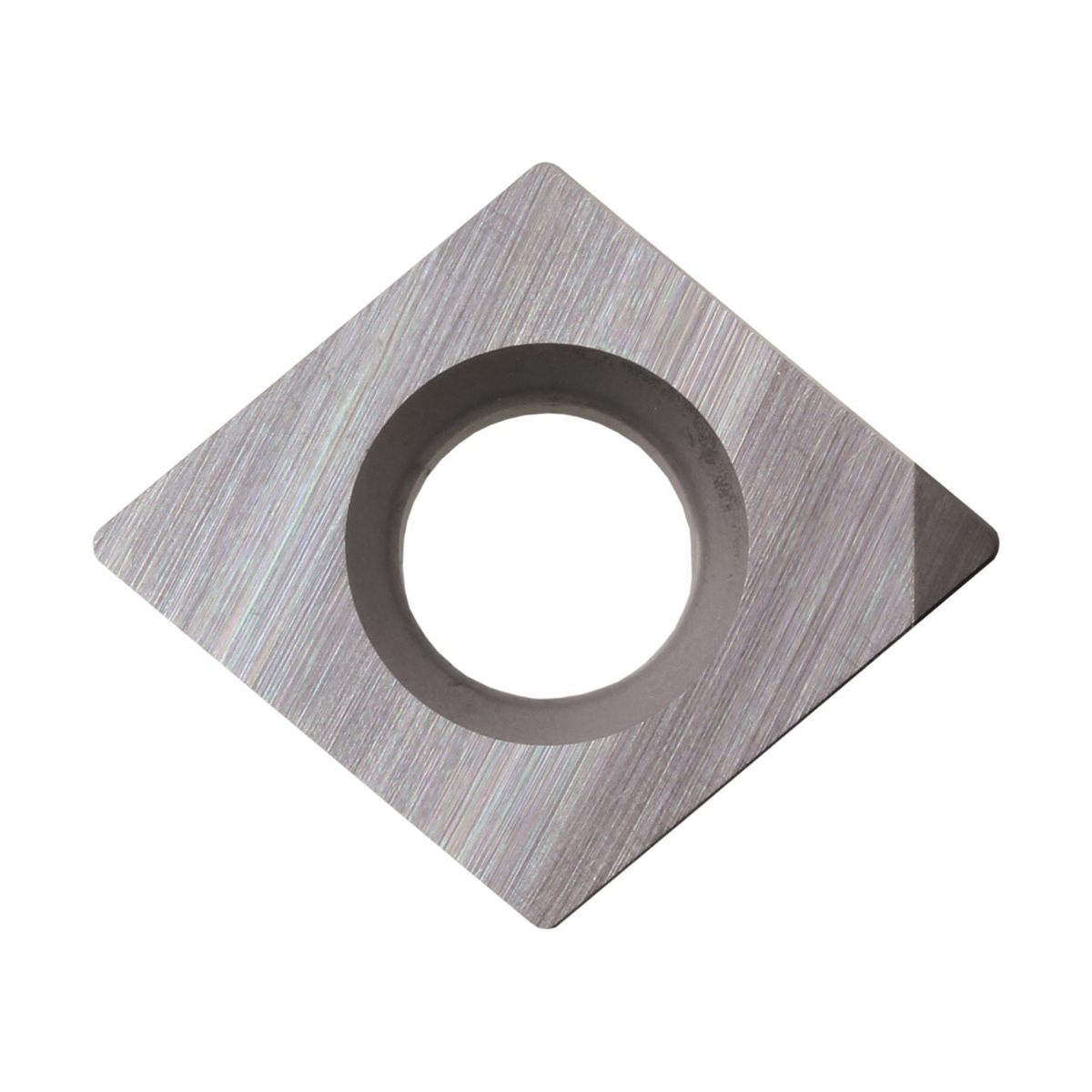

CPGB25151SEKBN510 TURNING INSERT

CPGB25151SEKBN510 TURNING INSERT

KYOCTBV01821 TBV01821
42.17 / EA
http://schema.org/OutOfStock
CPGB25151SEKBN510 TURNING INSERT
  • Applicable Materials: Hardened Material
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.1378in
  • Included Angle: 80°
  • Inscribed Circle: 5/16in
  • Insert Size: #25151
  • Insert Style: CPGB
  • ISO Code: CPGB080204SE
  • Material: CBN
  • Material Grade: H
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 8
  • Shape: Rhombic
  • Surface Treatment: UNCOATED
  • Thickness: 3/32in
  • Type: 1-Cutting Edge
  • ANSI Code: CPGB25151SEKBN510
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN510
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
Boring and Internal Facing Applications
  • Excellent wear resistance and crack resistance, non-coated CBN
  • Finishing and continuous cutting of hardened die steel
  • Without chipbreaker
  • Small edge with 1 cutting edges
ECCN: EAR99
