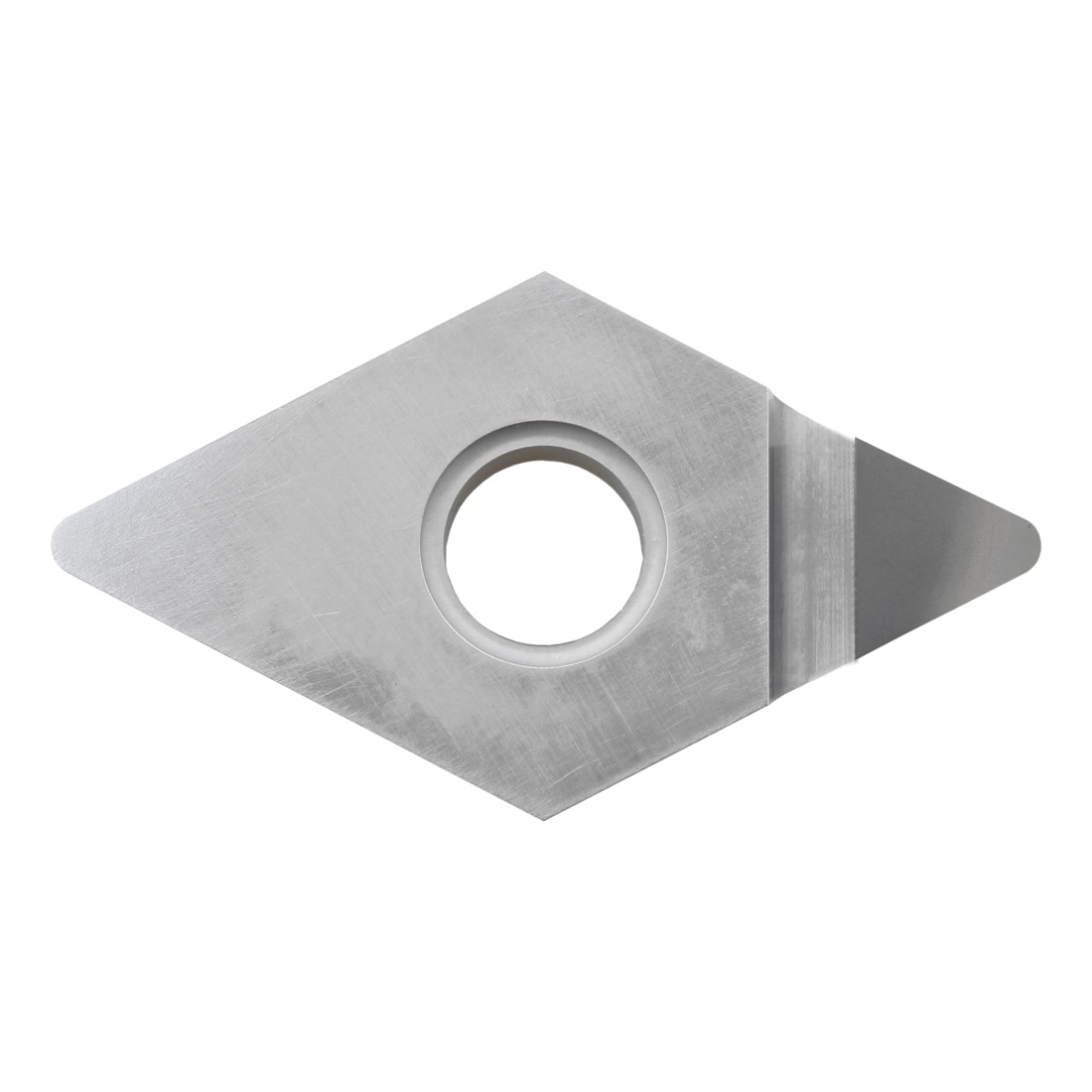

DNMM432MKPD001 TURNING INSERT
DNMM432MKPD001 TURNING INSERT
KYOCTBR02602
TBR02602
179.51
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBR02602
- Applicable Materials: Aluminum Alloys, Brass, Non-Ferrous Metals and Non-Metals
- Corner Radius: 1/32in
- Hand Direction: Neutral
- Hole Diameter: 0.203in
- Included Angle: 55°
- Inscribed Circle: 1/2in
- Insert Size: 432
- Insert Style: DNMM
- ISO Code: DNMM150408M KPD001
- Material: PCD
- Material Grade: S
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 15
- Shape: Rhombic
- Surface Treatment: UNCOATED
- Thickness: 3/16in
- Type: 1-Sided
- ANSI Code: DNMM432M KPD001
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KPD001
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
General Turning Applications
- Good edge sharpening performance due to super micrograin and good surface finish
- Good wear resistance and fracture resistance with high strength of cutting edge
- Machining efficiency improvement by long life and stable machining
- KPD001 grade super micrograin PCD features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance
- Long and stable tool life
