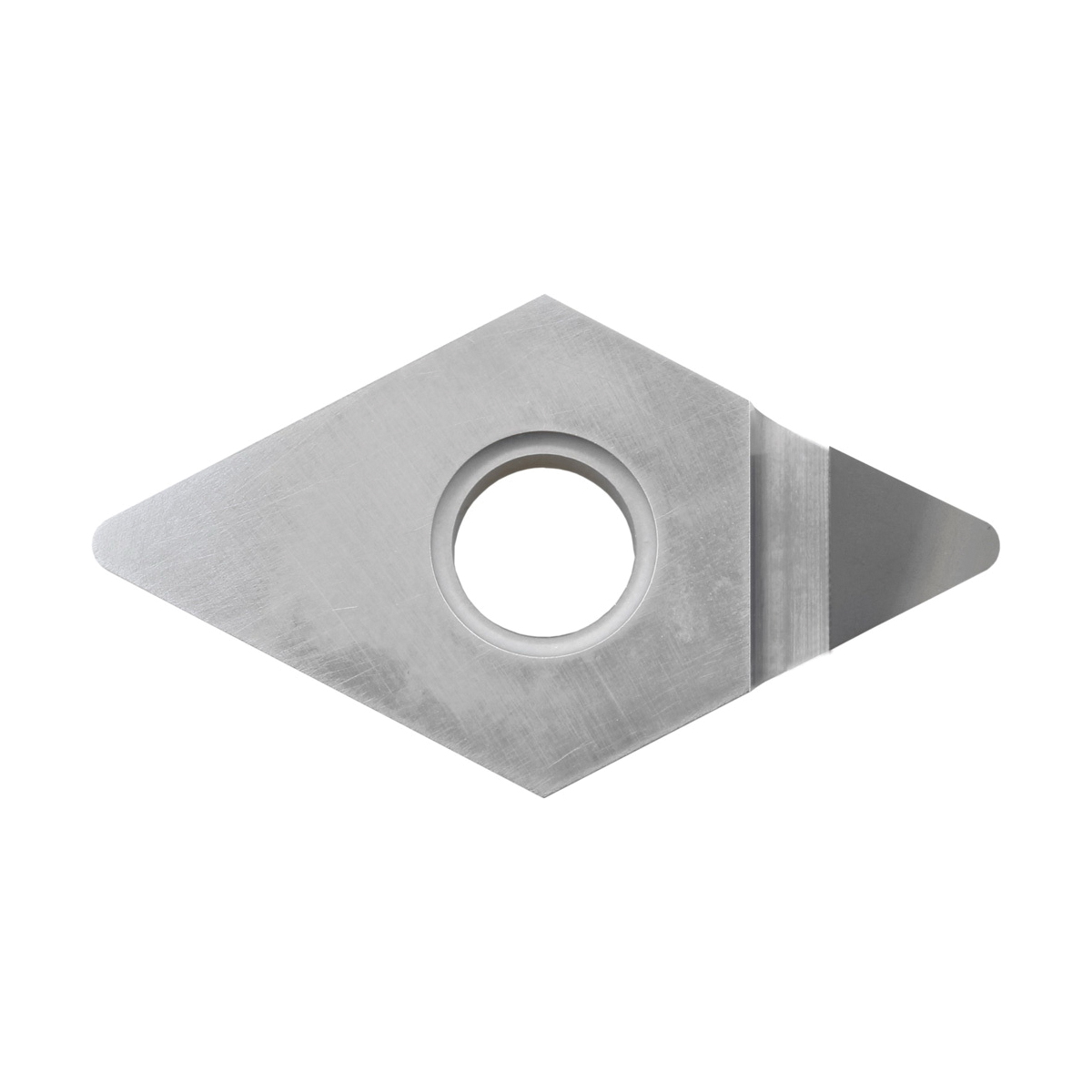

DNMM4305MKPD001 TURNING INSERT

DNMM4305MKPD001 TURNING INSERT

KYOCTBR02600 TBR02600
179.51 / EA
http://schema.org/OutOfStock
DNMM4305MKPD001 TURNING INSERT
  • Applicable Materials: Non-Ferrous Metals and Titanium Alloy
  • Corner Radius: 0.0079in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #4305
  • Insert Style: DNMM
  • ISO Code: DNMM150402M
  • Material: PCD
  • Material Grade: N, S
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Rhombic
  • Thickness: 3/16in
  • Type: 1-Cutting Edge
  • ANSI Code: DNMM4305MKPD001
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KPD001
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Boring Applications
  • Super micro-grain pcd features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance and long, stable tool life
  • High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
ECCN: EAR99
