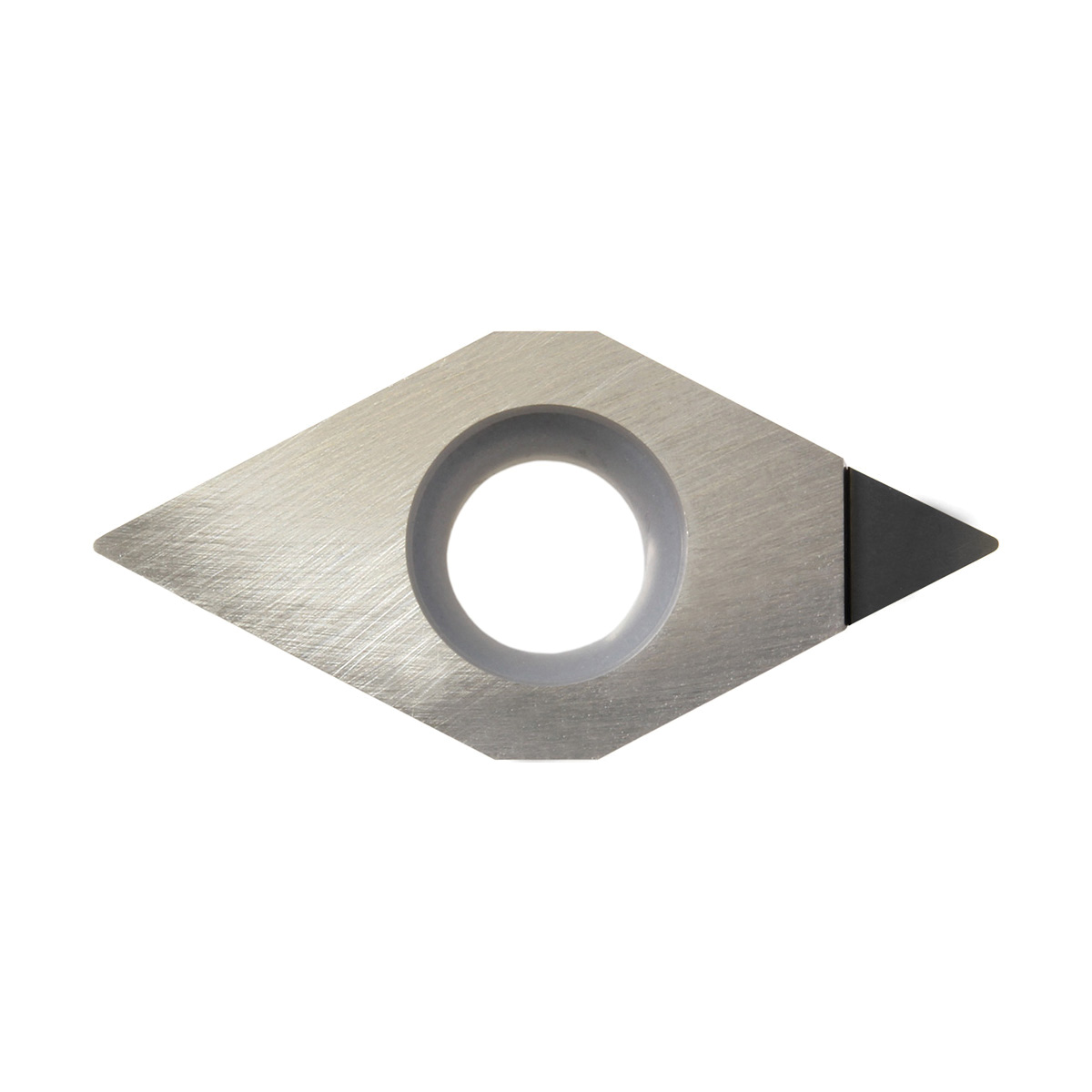

DCMT2151KPD001 TURNING INSERT
DCMT2151KPD001 TURNING INSERT
KYOCTBR02003
TBR02003
179.51
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBR02003
- Applicable Materials: Non-Ferrous Materials and Titanium Alloy
- Corner Radius: 0.0157in
- Hand Direction: Neutral
- Hole Diameter: 0.1102in
- Included Angle: 55°
- Inscribed Circle: 1/4in
- Insert Size: #2151
- Insert Style: DCMT
- ISO Code: DCMT070204
- Material: PCD
- Material Grade: N, S
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 7
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 0.0937in
- Type: 1-Cutting Edge
- ANSI Code: DCMT2151KPD001
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KPD001
- Manufacturer Name: KYOCERA Precision Tools
- Series: ISOI
- Application
- Item Features
- Standards
Back Boring, Copying and External Turning Applications
- Super micro-grain PCD features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance and long, stable tool life
- High speed cutting of aluminum alloy, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
