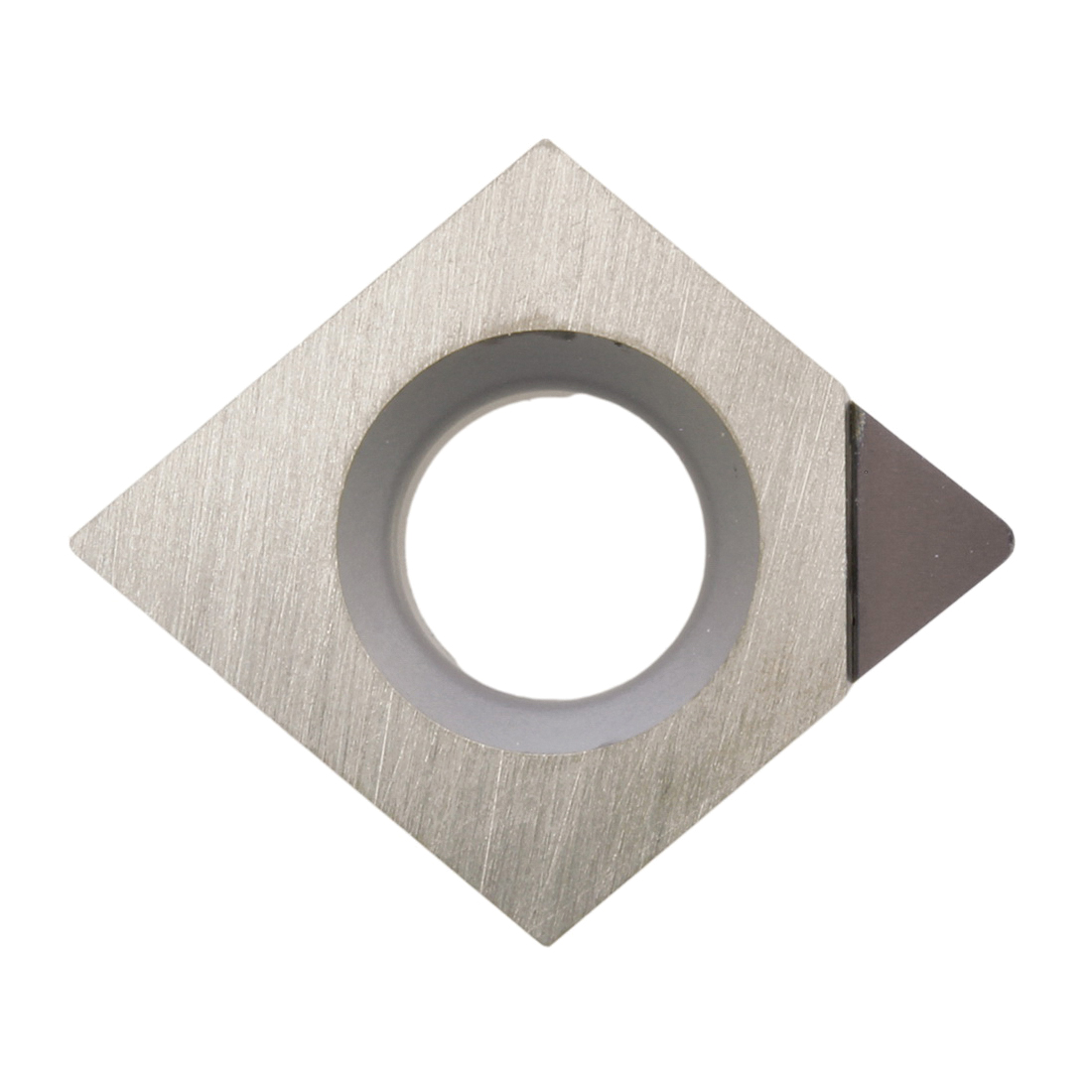

CPMH321NEKPD001 TURNING INSERT

CPMH321NEKPD001 TURNING INSERT

KYOCTBR01887 TBR01887
179.51 / EA
http://schema.org/OutOfStock
CPMH321NEKPD001 TURNING INSERT
  • Applicable Materials: Non-Ferrous Metals
  • Chipbreaker: NE
  • Corner Radius: 1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.177in
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: 321
  • Insert Style: CPMH
  • ISO Code: CPMH090304NE KPD001
  • Material: PCD
  • Material Grade: N
  • Rake: Positive
  • Relief Angle: 11°
  • Seat Size: 9
  • Shape: Diamond
  • Surface Treatment: UNCOATED
  • Thickness: 1/8in
  • Type: 1-Sided
  • ANSI Code: CPMH321NE KPD001
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KPD001
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
General Turning Applications
  • KPD001 grade super micrograin PCD features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance
  • Long and stable tool life
