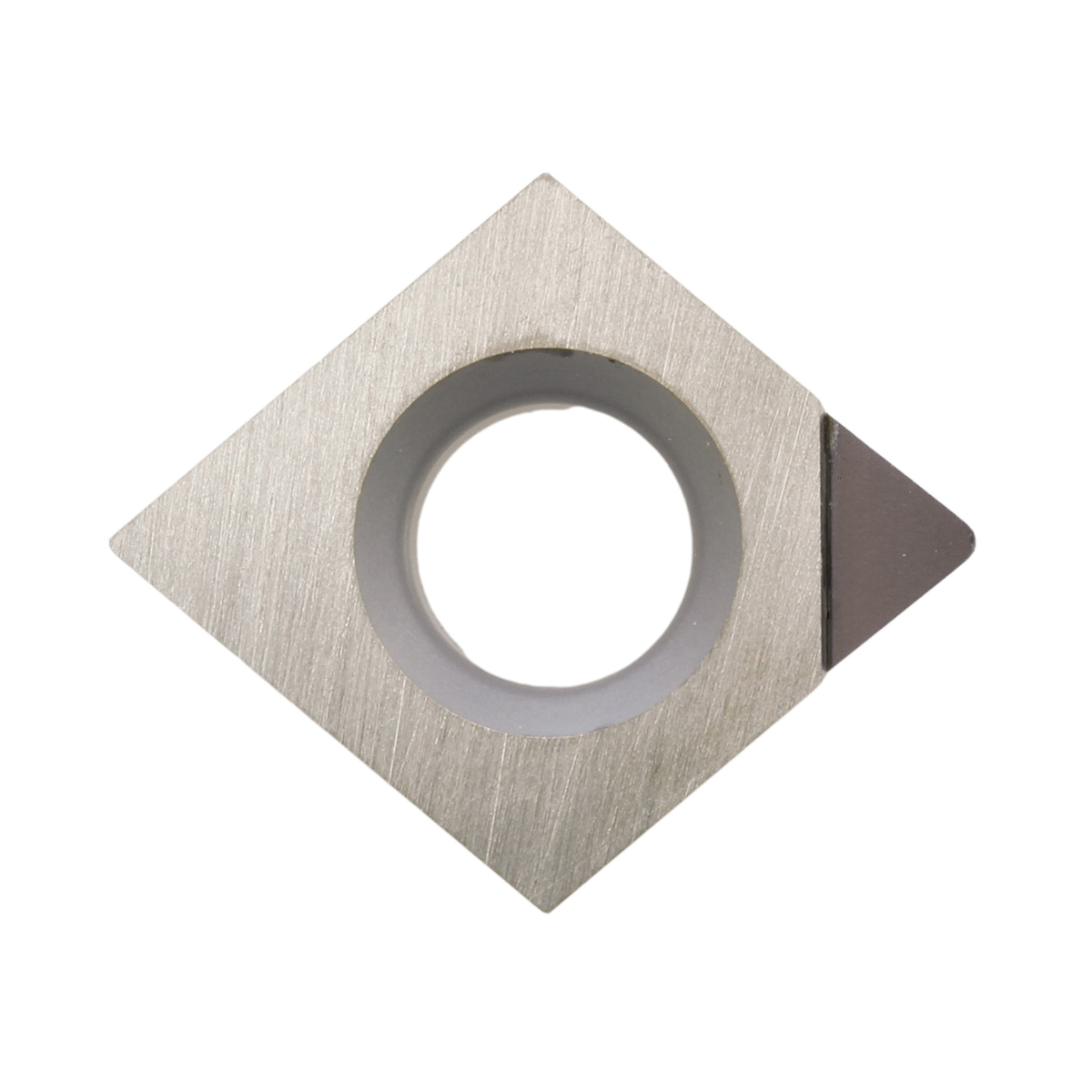

CPMH25151NEKPD001 TURNING INSERT
CPMH25151NEKPD001 TURNING INSERT
KYOCTBR01882
TBR01882
179.51
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBR01882
- Applicable Materials: Non-Ferrous Metals and Titanium Alloy
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.1378in
- Included Angle: 80°
- Inscribed Circle: 5/16in
- Insert Size: #25151
- Insert Style: CPMH
- ISO Code: CPMH080204NE
- Material: PCD
- Material Grade: N, S
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 8
- Shape: Rhombic
- Thickness: 3/32in
- Type: 1-Cutting Edge
- ANSI Code: CPMH25151NEKPD001
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KPD001
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
- Standards
Boring and Internal Facing Applications
- Super micro-grain pcd features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance and long, stable tool life
- High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
- Long edge with 1 cutting edges
ECCN: EAR99
