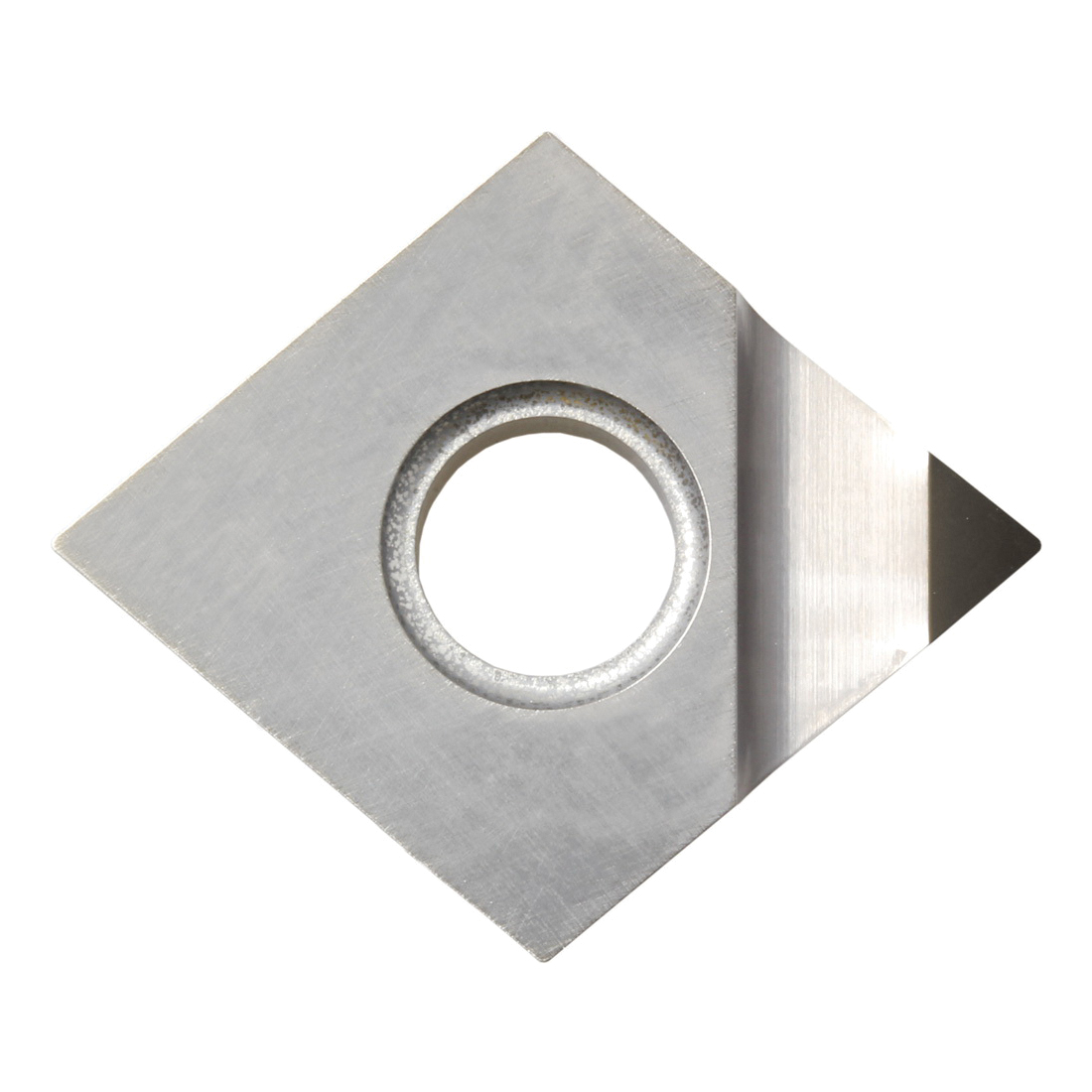

CNMM4305MSEKPD001 TURNING INSERT

CNMM4305MSEKPD001 TURNING INSERT

KYOCTBR01610 TBR01610
50.48 / EA
http://schema.org/OutOfStock
CNMM4305MSEKPD001 TURNING INSERT
  • Applicable Materials: Non-Ferrous Metals
  • Chipbreaker: M-SE
  • Corner Radius: 0.008in
  • Hand Direction: Neutral
  • Hole Diameter: 0.203in
  • Included Angle: 80°
  • Inscribed Circle: 1/2in
  • Insert Size: 4305
  • Insert Style: CNMM
  • ISO Code: CNMM120402M-SE KPD001
  • Material: PCD
  • Material Grade: N
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: UNCOATED
  • Thickness: 3/16in
  • Type: 1-Sided
  • ANSI Code: CNMM4305MSE KPD001
  • Country of Origin: JP
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KPD001
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
General Turning Applications
  • Small edge
  • KPD001 grade super micrograin PCD features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance
  • Long and stable tool life
