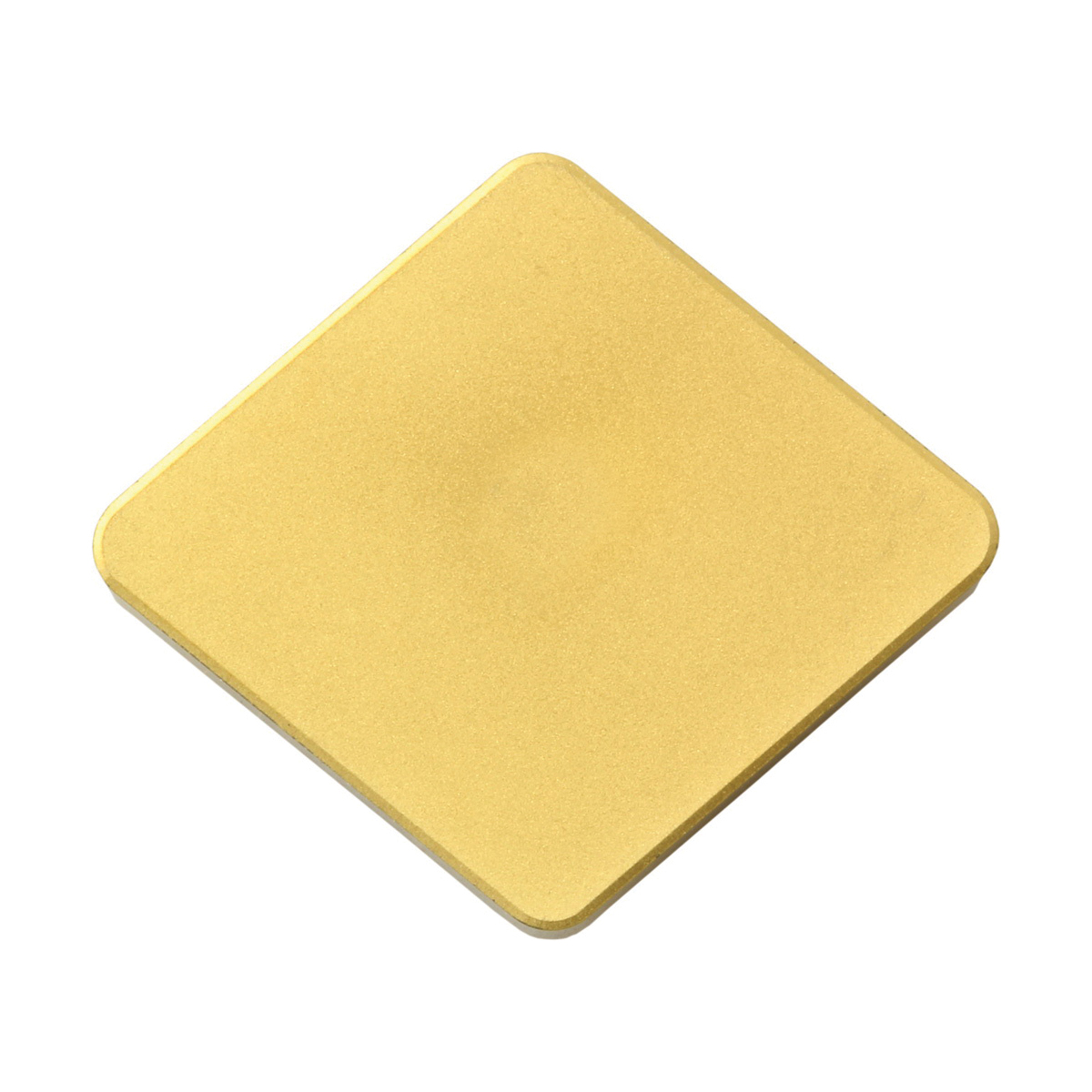

CNM323KBN900 TURNING INSERT

CNM323KBN900 TURNING INSERT

KYOCTBP01001 TBP01001
240.79 / EA
http://schema.org/OutOfStock
CNM323KBN900 TURNING INSERT
  • Applicable Materials: Gray Nodular Cast Iron and Hardened Material
  • Corner Radius: 3/64in
  • Hand Direction: Neutral
  • Included Angle: 80°
  • Inscribed Circle: 3/8in
  • Insert Size: #323
  • Insert Style: CNM
  • ISO Code: CNMN090312
  • Material: CBN
  • Material Grade: K, H
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 09, 9
  • Shape: Rhombic
  • Surface Treatment: TiN Coated
  • Thickness: 1/8in
  • Type: 2-Cutting Edge
  • ANSI Code: CNM323KBN900
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN900
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning and Facing Applications
  • Heavy duty, interrupted cutting and finishing of hardened steel, hardened roll steel and cast iron
  • TiN coated solid CBN
