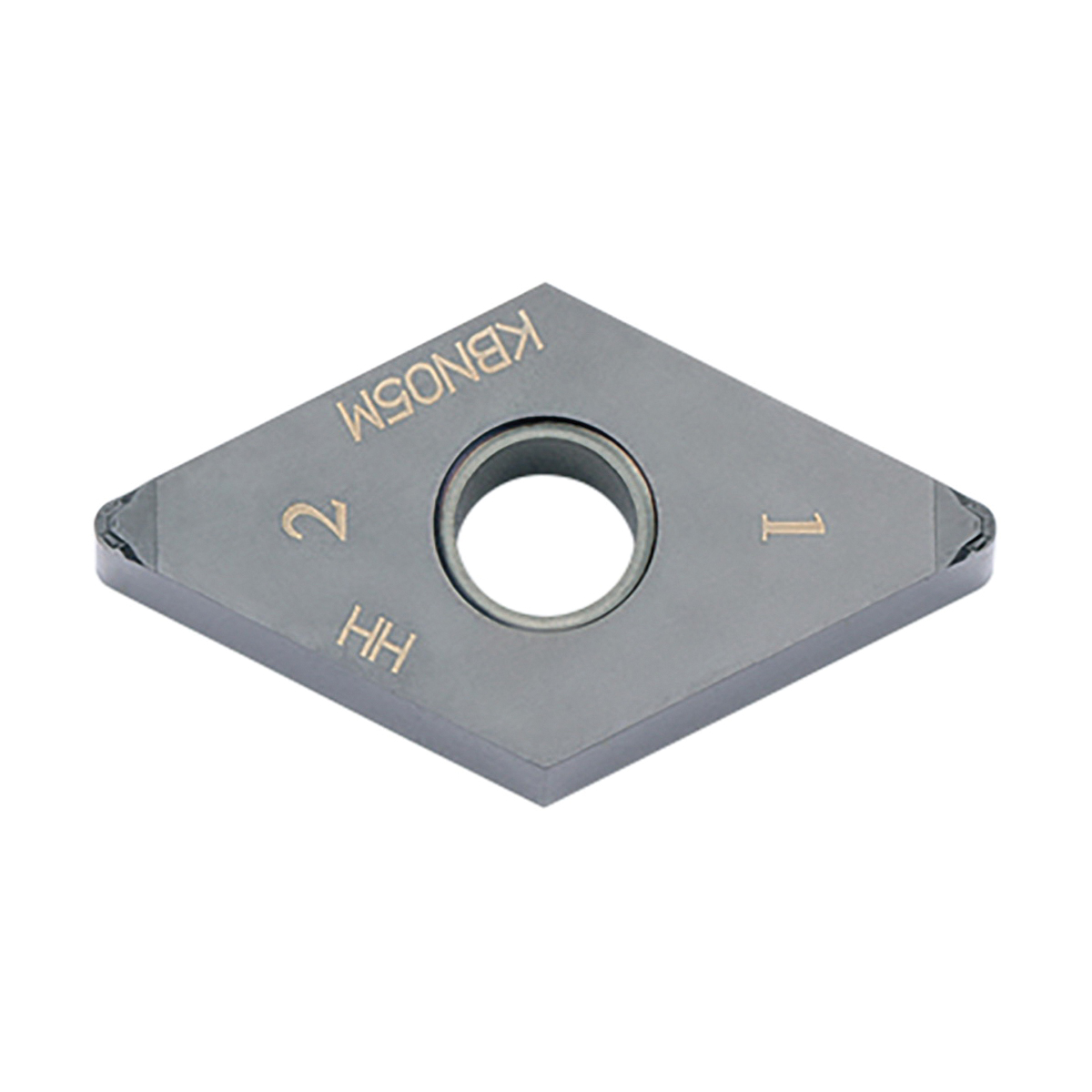

DNGM431MEHHKBN05M TURNING INSERT

DNGM431MEHHKBN05M TURNING INSERT

KYOCTBN07403 TBN07403
93.46 / EA
http://schema.org/OutOfStock
DNGM431MEHHKBN05M TURNING INSERT
  • Applicable Materials: Hardened Material
  • Chipbreaker: HH
  • Corner Radius: <1/64in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031in
  • Included Angle: 55°
  • Inscribed Circle: 1/2in
  • Insert Size: #431
  • Insert Style: DNGM
  • ISO Code: DNGM150404ME-HH
  • Material: CBN
  • Material Grade: H
  • Rake: Negative
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Rhombic
  • Surface Treatment: PVD-MEGACOAT
  • Thickness: 3/16in
  • Type: 2-Cutting Edge
  • ANSI Code: DNGM431MEHHKBN05M
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN05M
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Boring Applications
  • Small D.O.C./(55 HRC)
  • Minus tolerance corner radius with 2 cutting edges
  • Heat-resistant MEGACOAT on highly heat-resistant CBN substrate
  • High speed finishing of hardened steel
ECCN: EAR99
