DNGA 442S00525ME KBN05M INSERT

DNGA 442S00525ME KBN05M INSERT

KYOCTBN02216 TBN02216
80.39 / EA
http://schema.org/OutOfStock

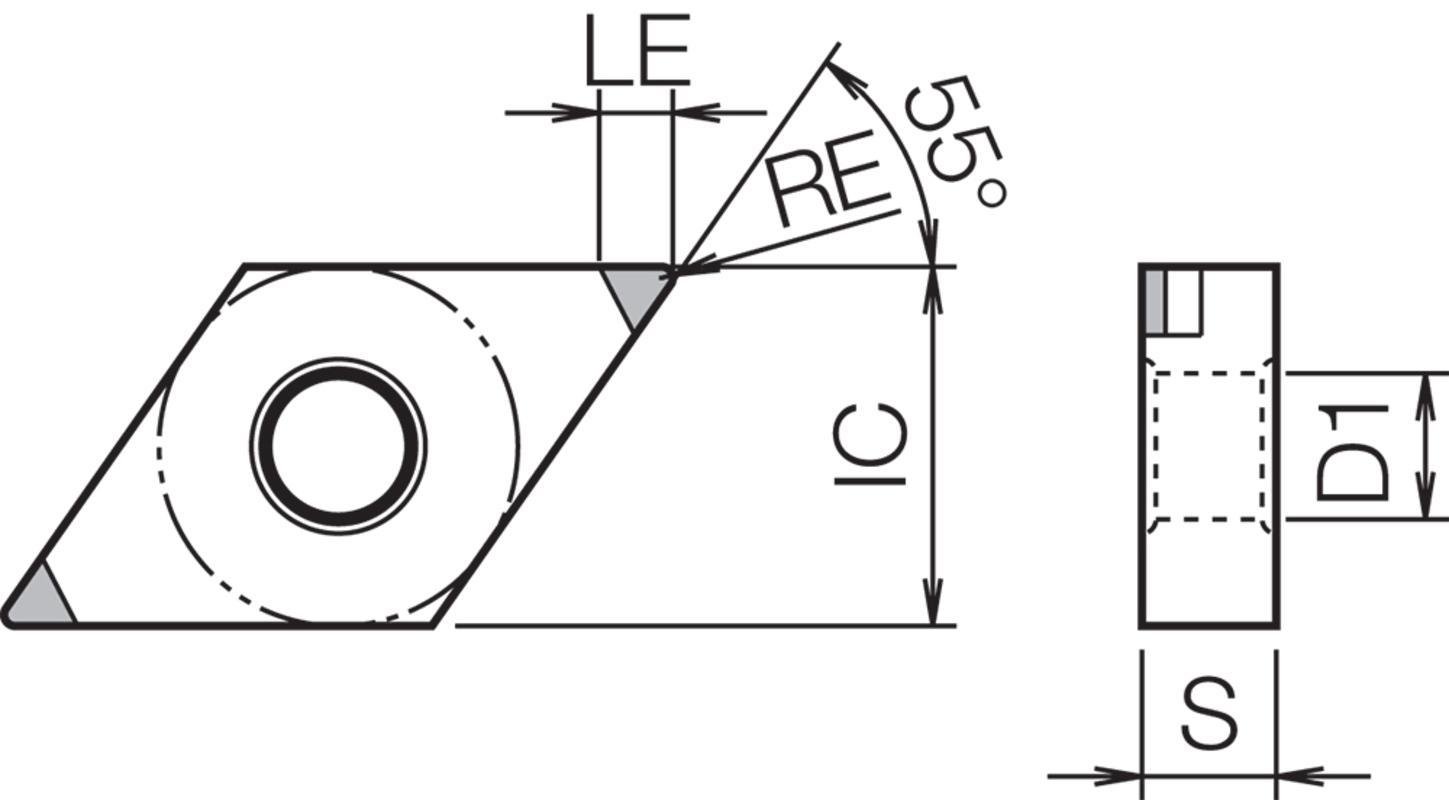

DNGA 442S00525ME KBN05M INSERT
  • Applicable Materials: Hardened Material
  • Corner Radius: 1/32 in
  • Hand Direction: Neutral
  • Hole Diameter: 0.2031 in
  • Included Angle: 55 deg
  • Inscribed Circle: 1/2 in
  • Insert Size: #442
  • Insert Style: DNGA
  • ISO Code: DNGA150608S01225ME
  • Material: CBN
  • Material Grade: H
  • Rake: Negative
  • Relief Angle: 0 deg
  • Seat Size: 15
  • Shape: Rhombic
  • Surface Treatment: PVD-MEGACOAT
  • Thickness: 1/4 in
  • Type: 2-Cutting Edge
  • ANSI Code: DNGA442S00525MEKBN05M
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: KBN05M
  • Manufacturer Name: KYOCERA Precision Tools
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Turning, Copying and Boring Applications
  • Heat-resistant MEGACOAT on highly heat-resistant CBN substrate
  • High speed finishing of hardened steel
  • Without chipbreaker
  • Multi-edge with 2 cutting edges
ECCN: EAR99
