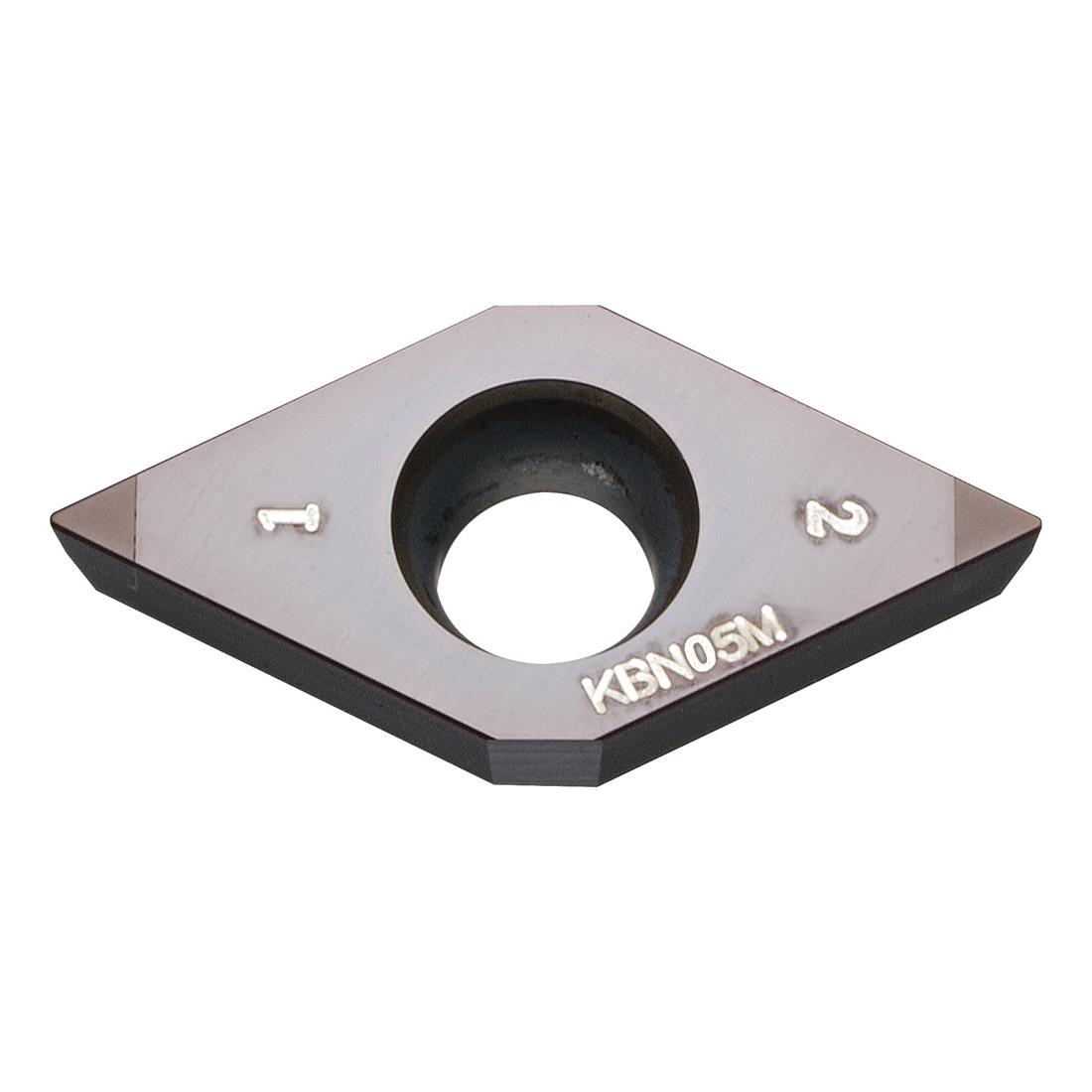

DCMW32505S00525MESKBN05M TURNING INSERT
DCMW32505S00525MESKBN05M TURNING INSERT
KYOCTBN02129
TBN02129
73.80
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBN02129
- Applicable Materials: Hardened Materials
- Chipbreaker: MES
- Corner Radius: 0.008in
- Hand Direction: Neutral
- Hole Diameter: 0.173in
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: 3250
- Insert Style: DCMW
- ISO Code: DCMW11T302S01225MES KBN05M
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 11
- Shape: Rhombic
- Surface Treatment: MEGACOAT
- Thickness: 5/32in
- Type: Multi-Edge
- ANSI Code: DCMW32505S00525MES KBN05M
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN05M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
General Turning Applications
- Wide range of applications for hardened steel cutting
- New technology to achieve superior wear and fracture resistance
- First choice for carburizing hardened materials
- MES chipbreaker - general purpose
- Chamfered and honed cutting edge
- KBN05M grade heat resistant MEGACOAT on highly heat resistant CBN substrate
- High speed finishing of hardened steel
