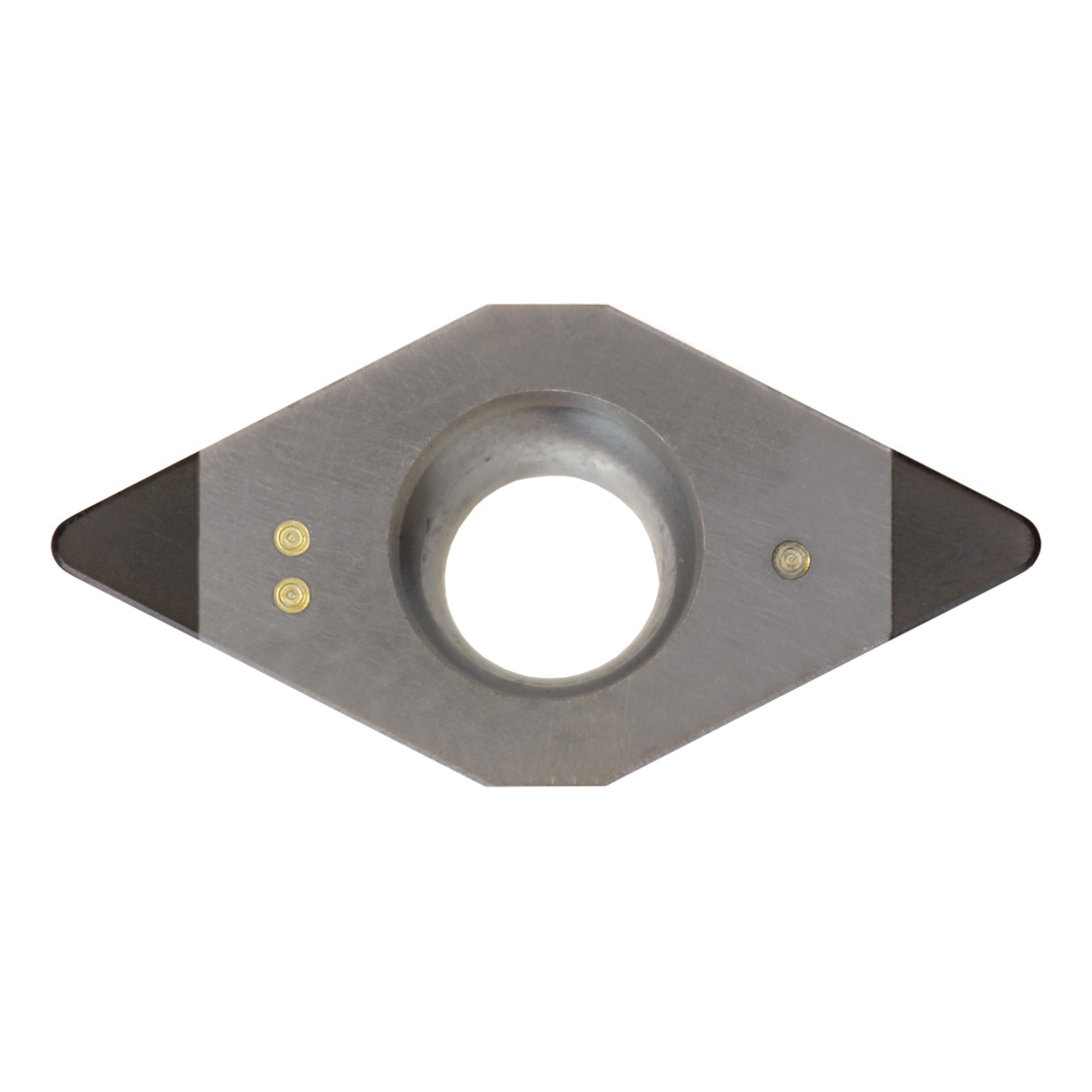

DCMW2151T00315MEKBN05M TURNING INSERT
DCMW2151T00315MEKBN05M TURNING INSERT
KYOCTBN02111
TBN02111
73.80
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBN02111
- Applicable Materials: Hardened Materials
- Chipbreaker: ME
- Corner Radius: 1/64in
- Hand Direction: Neutral
- Hole Diameter: 0.11in
- Included Angle: 55°
- Inscribed Circle: 1/4in
- Insert Size: 2151
- Insert Style: DCMW
- ISO Code: DCMW070204T00815ME KBN05M
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 7
- Shape: Rhombic
- Surface Treatment: MEGACOAT
- Thickness: 3/32in
- Type: Multi-Edge
- ANSI Code: DCMW2151T00315ME KBN05M
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN05M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
General Turning Applications
- Wide range of applications for hardened steel cutting
- New technology to achieve superior wear and fracture resistance
- First choice for carburizing hardened materials
- ME chipbreaker - chamfered sharp cutting oriented, less burring
- Chamfered cutting edge
- KBN05M grade heat resistant MEGACOAT on highly heat resistant CBN substrate
- High speed finishing of hardened steel
