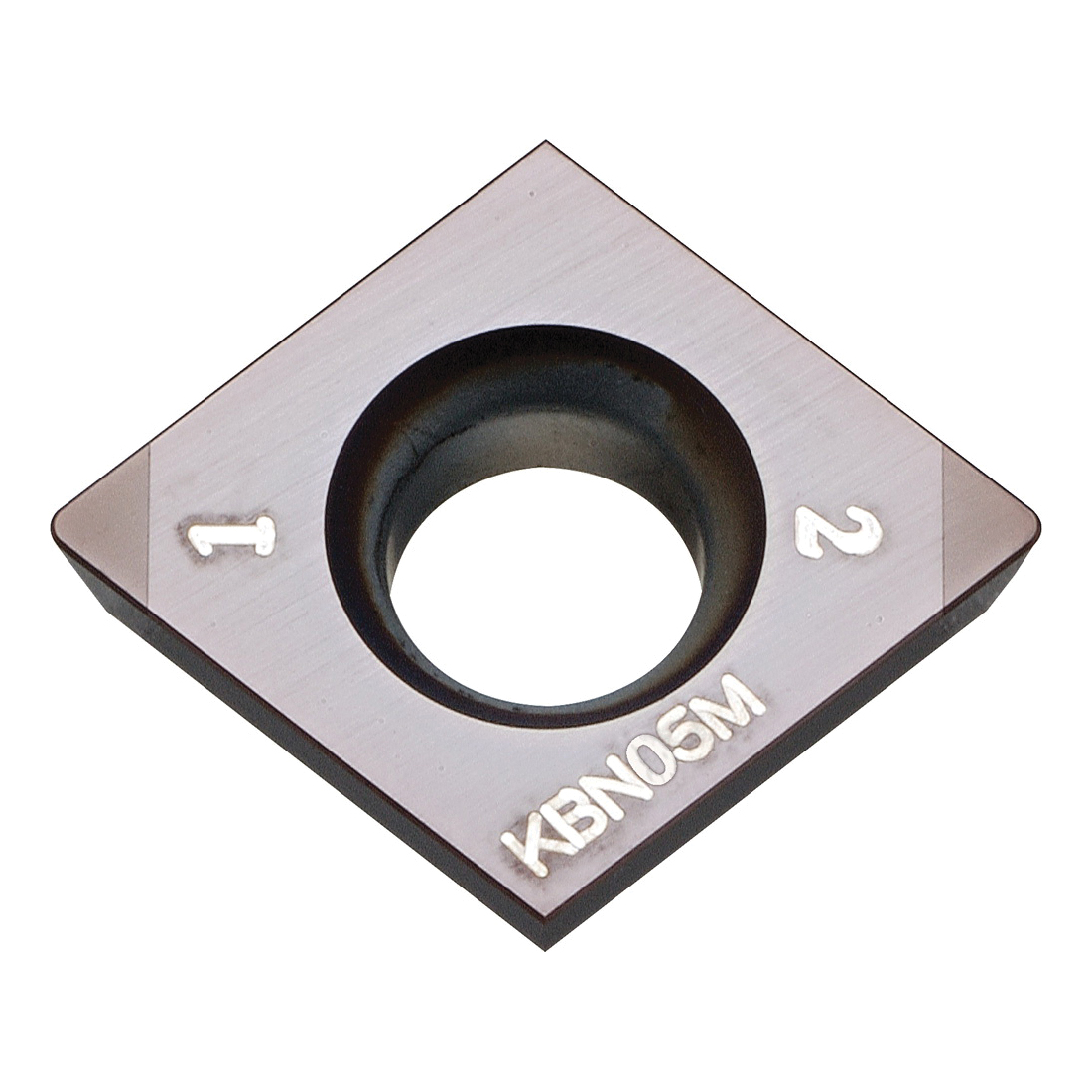

CPGB321S00525MESKBN05M TURNING INSERT
CPGB321S00525MESKBN05M TURNING INSERT
KYOCTBN01820
TBN01820
68.53
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBN01820
- Applicable Materials: Hardened Materials
- Chipbreaker: MES
- Corner Radius: 0.016in
- Hand Direction: Neutral
- Hole Diameter: 0.177in
- Included Angle: 80°
- Inscribed Circle: 3/8in
- Insert Size: 321
- Insert Style: CPGB
- ISO Code: CPGB090304S01225MES KBN05M
- Material: CBN
- Material Grade: H
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 9
- Shape: Diamond
- Surface Treatment: MEGACOAT
- Thickness: 1/8in
- Type: General Purpose Multi-Edge
- ANSI Code: CPGB321S00525MES KBN05M
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: KBN05M
- Manufacturer Name: KYOCERA Precision Tools
- Application
- Item Features
General Turning Applications
- Wide range of applications for hardened steel cutting
- New technology to achieve superior wear and fracture resistance
- First choice for carburizing hardened materials
- MES chipbreaker - general purpose
- Chamfered and honed cutting edge
- KBN05M grade heat resistant MEGACOAT on highly heat resistant CBN substrate
- High speed finishing of hardened steel
